Integrator's Reference Manual for the VSX Series
1 - 30 www.polycom.com/videodocumentation

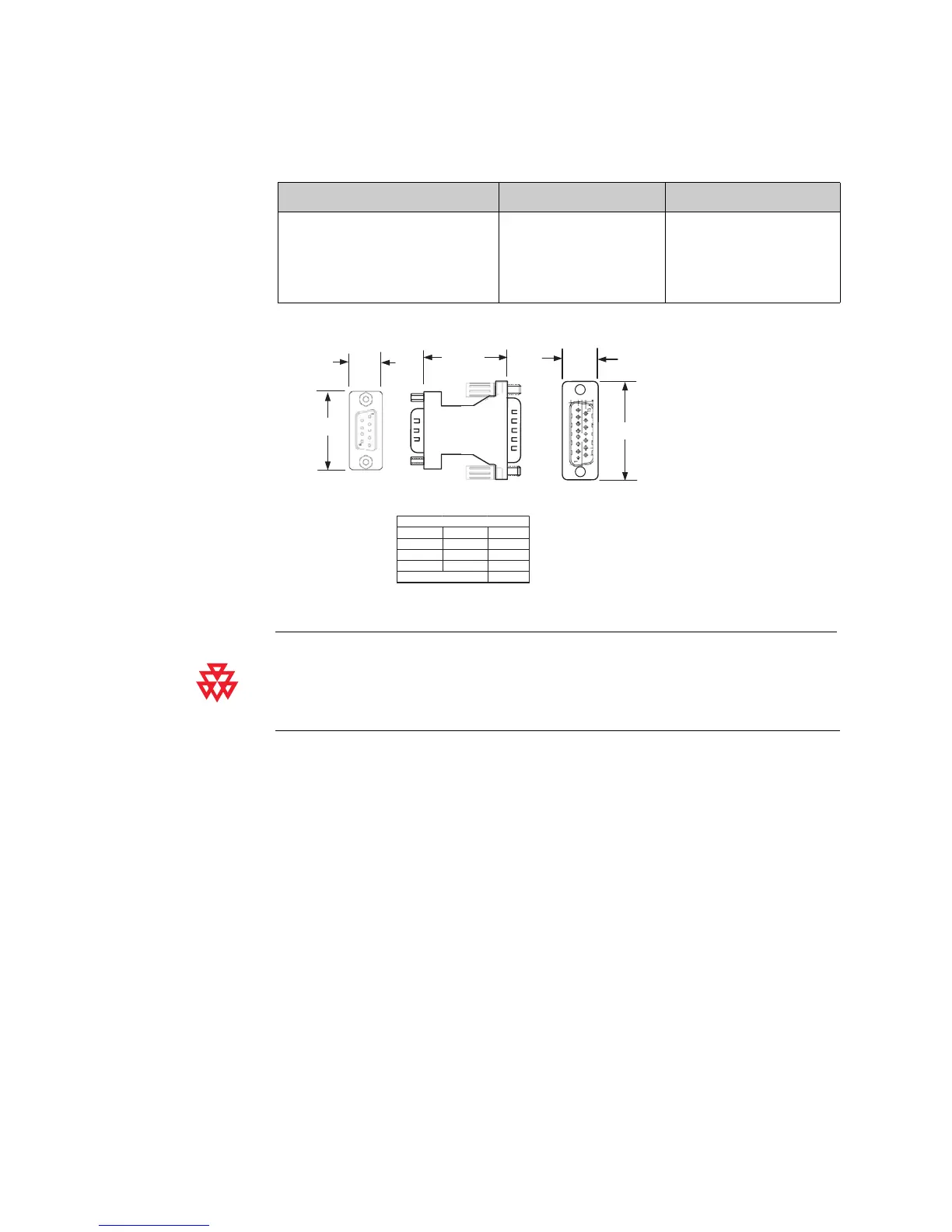

RS-232 Adapter
This adapter connects a camera control cable to one of the VSX 8000’s RS-232 ports.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number
DB-15 to DB-9
VSX 8000 2457-21930-001
40-45MM
15.0
33.3
15.0
41.6
9-PIN MALE
D-SUB
15-PIN MALE
D-SUB
9-PIN 15-PIN SIGNAL
27RXD/TXD
314TXD/RXD
512GND
N/AALL OTHERS N/C
CONNECTION TABLE
