Polycom VSX Series Integrator's Reference Manual

Integrator's Reference Manual for the VSX Series
1 - 24 www.polycom.com/videodocumentation

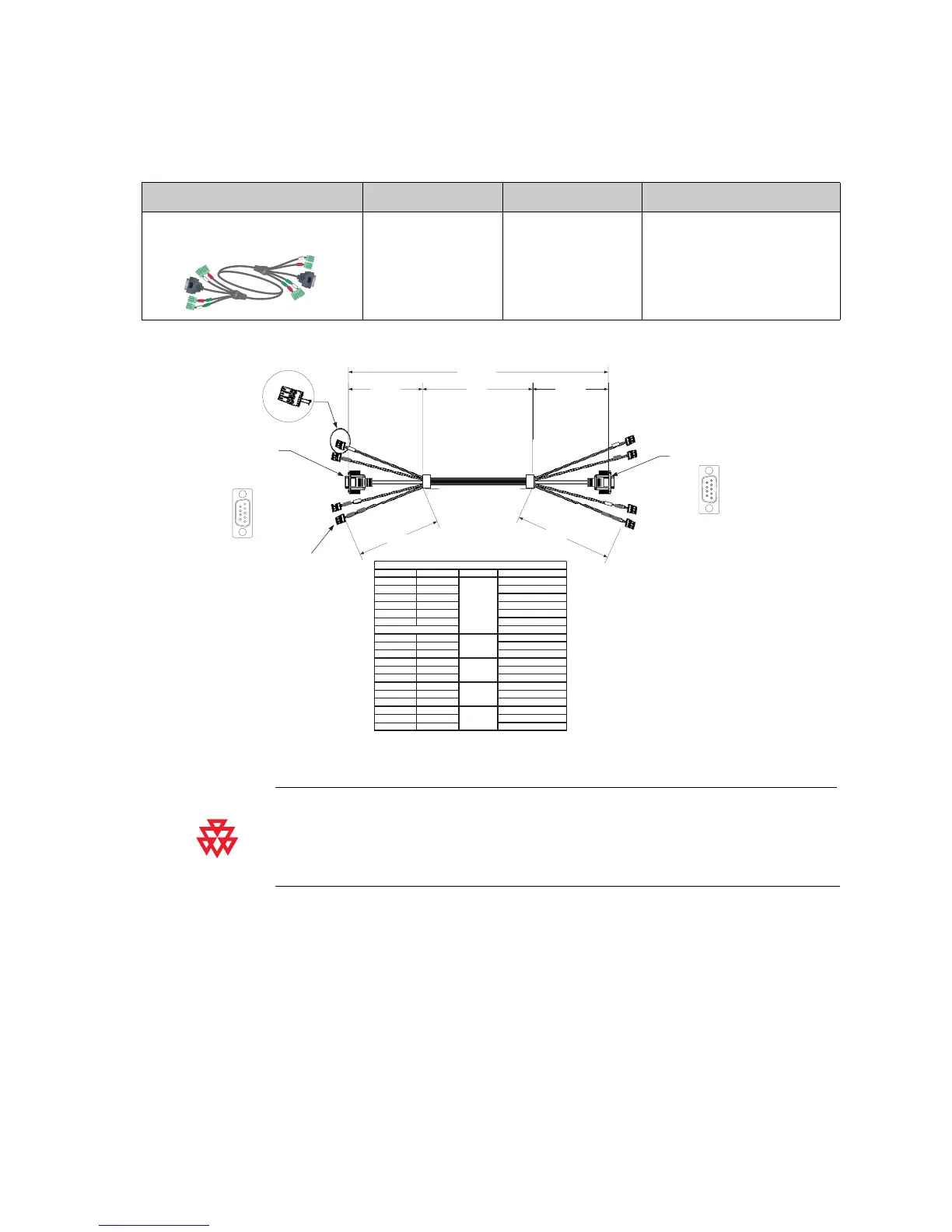

Vortex Cable
This cable connects a VSX 8000 to a Vortex mixer.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length
4 mini-Phoenix + DB-9 on both
ends
VSX 8000 2457-21978-001 Shipped Length: 6 ft (1.8 m)
56.0
WRAP LABEL
3.5mm PITCH 3-POSITION
PHOENIX PLUG PN 1840379 (8 PL)
P2
1
2
3
P3
J1
9-POSITION
D-SUBMINIATURE
PLUG
P4
P5
1422.0(203 REF) (203 REF)
4 X 305.0
4 X 203.0
P6
P7
P8
P9
FROM TO WIRE TYPE WIRE USE
P1-2 J1-2 SIGNAL
P1-3 J1-3 SIGNAL
P1-5 J1-5 SIGNAL
P1-7 J1-7 SIGNAL
P1-8 J1-8 SIGNAL
P1-SHELL J1-SHELL SHIELD
N/A
P2-1 P6-1 SIGNAL
P2-2 P6-2 SIGNAL
P2-3 P6-3 SHIELD (DRAIN WIRE)
P3-1 P7-1 SIGNAL
P3-2 P7-2 SIGNAL
P3-3 P7-3 SHIELD (DRAIN WIRE)
P4-1 P8-1 SIGNAL
P4-2 P8-2 SIGNAL
P4-3 P8-3 SHIELD (DRAIN WIRE)
P5-1 P9-1 SIGNAL
P5-2 P9-2 SIGNAL
P5-3 P9-3 SHIELD (DRAIN WIRE)
WIRING CHART
B
A
PINS 1, 4, 6, 9 ARE N/C
B
B
B
P1
9-POSITION
D-SUBMINIATURE
RECEPTACLE
1829.0 +/- 50
1
2
3
4
5
6
7
8
9
5
4
3
2
1
9
8
7
6
