Chapter 1 - Cables
© Polycom, Inc. 1 - 23

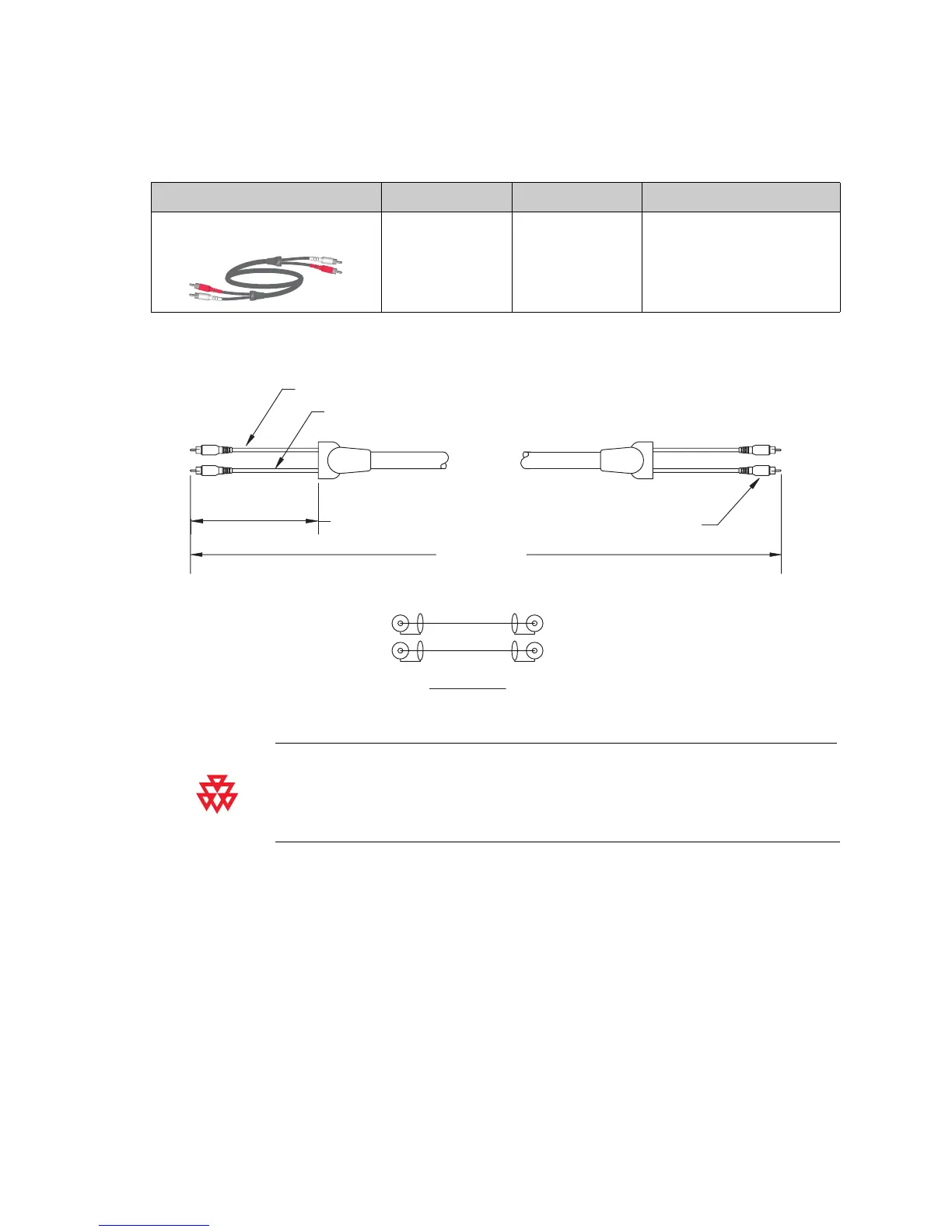

Audio Cable
This cable connects a VSX system to an external audio system.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length
Dual RCA connectors (red/white)
on both ends
VSX 7000
VSX 8000
2457-09212-001 Shipped Length: 25 ft (7.6 m)
Maximum Approved Length:
100 ft (30 m)
OVER MOLD "RCA" CONNECTORS
WIRING DIAGRAM
WH
WH
RED
WHT
WHT
RED
25 FEET +/- 3"
WHITE INSULATION (2X)
RED INSULATION (2X)
6 IN. ± 0.5 IN.
(2X)
RED
RED
