Quectel EC200A Series User Manual

LTE Standard Module Series
V
IL
≤ 0.5 V
VBAT
Module
Status
Running
RESET_N
Baseband restart
Baseband resetting
≥ 300 ms

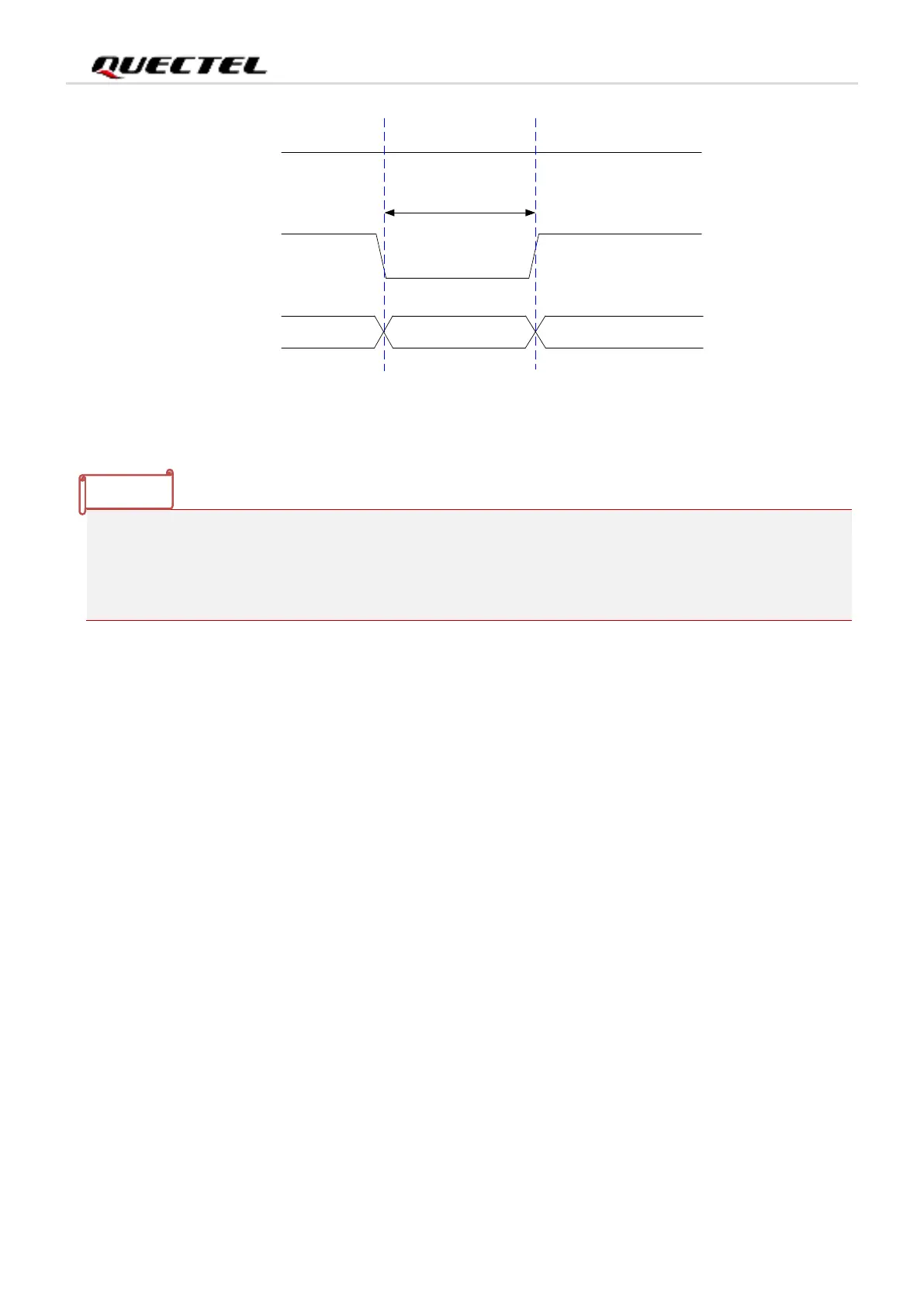

Figure 15: Timing of Resetting Module
⚫
1. Please ensure that there is no large capacitance with the max value exceeding 10 nF on PWRKEY
and RESET_N pins.
2. RESET_N only resets the internal baseband chip of the module and does not reset the power
management chip.
NOTE

Quectel EC200A Series Specifications
