5.4. RF Connector Recommendation
If RF connector is used for antenna connection, it is recommended to use U.FL-R-SMT connector
provided by Hirose.

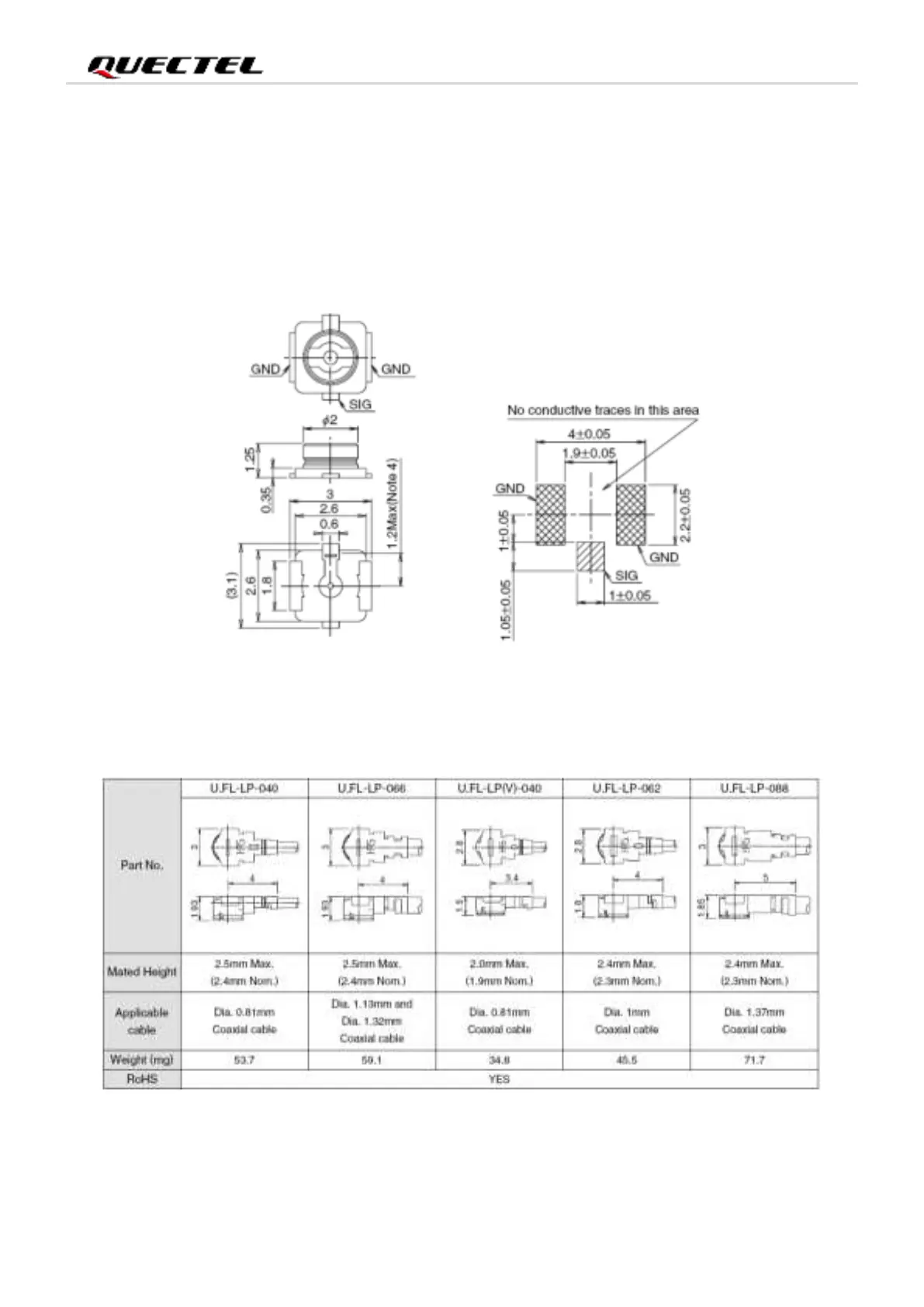

Figure 33: Dimensions of U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 34: Mechanicals of U.FL-LP Connectors
