LTE Standard Module Series
7 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.2 mm unless otherwise specified.
7.1. Mechanical Dimensions

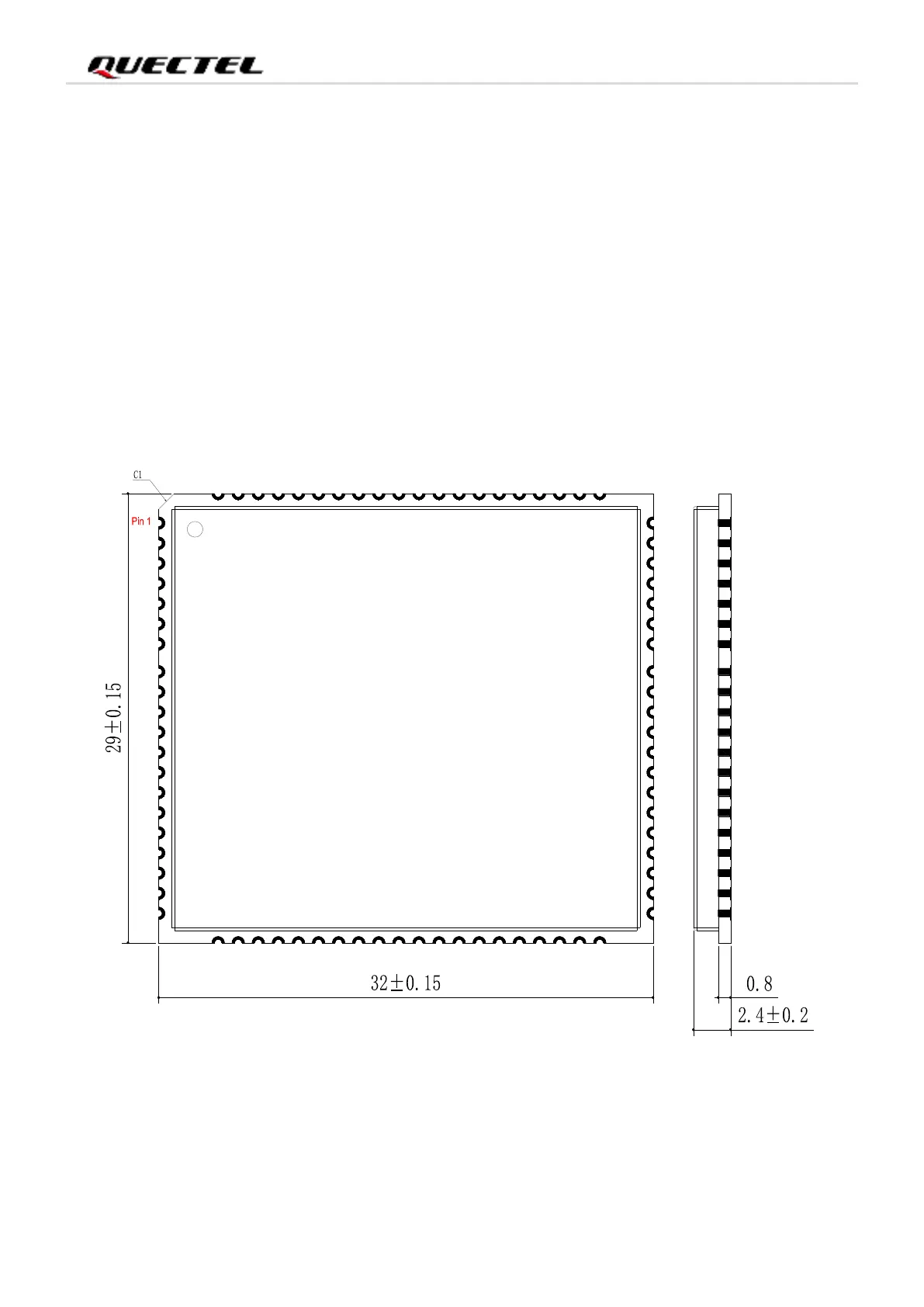

Figure 36: Module Top and Side Dimensions (Unit: mm)
