Quectel EM06 Series User Manual

LTE-A Module Series
EM06 Series Hardware Design
EM06_Series_Hardware_Design 35 / 69

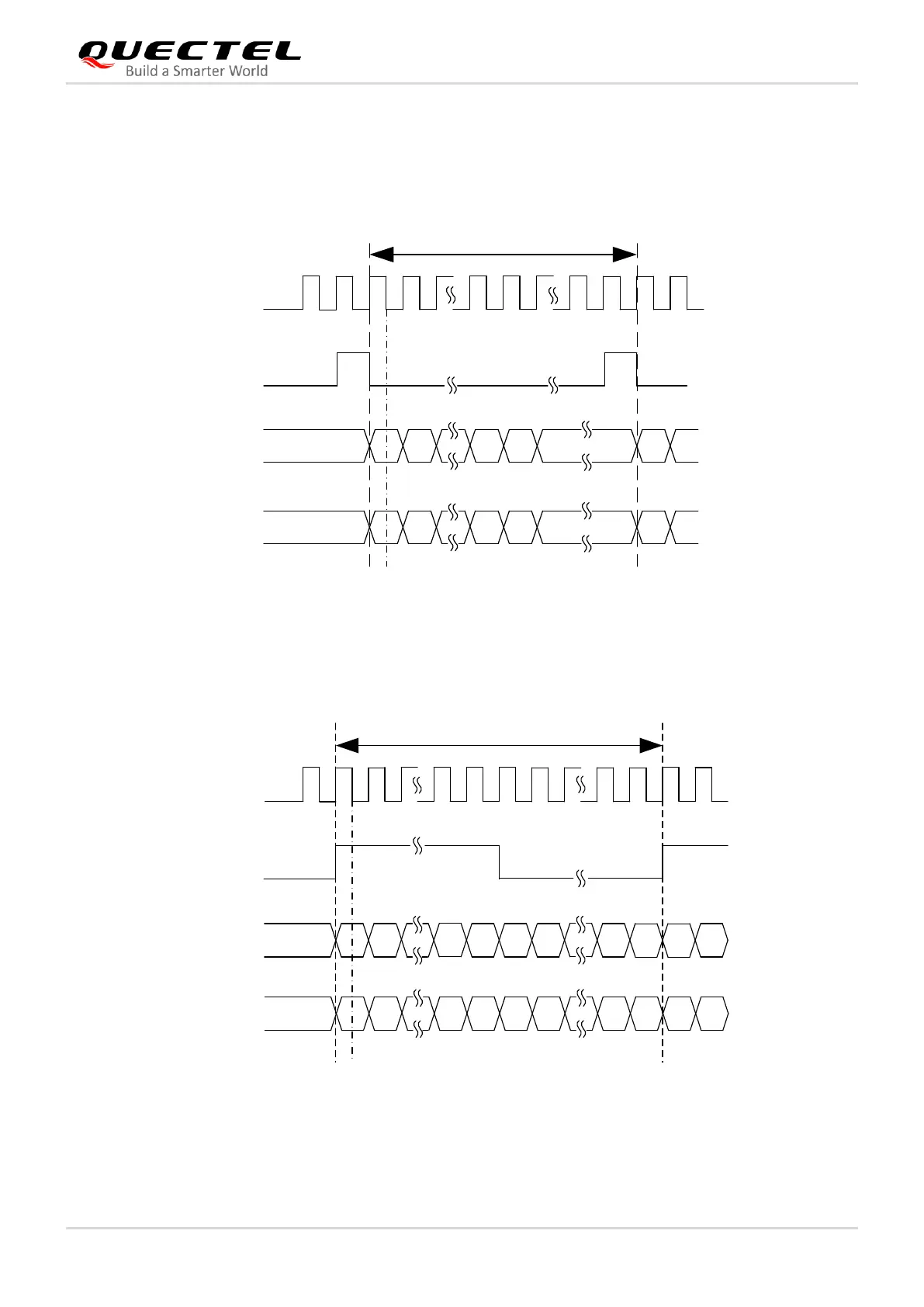

The module supports 16-bit linear data format. The following two figures show respectively the timing
relationship between 8 kHz PCM_SYNC and 2048 kHz PCM_CLK in the primary mode and that between
8 kHz PCM_SYNC and 256 kHz PCM_CLK in the auxiliary mode.
PCM _CLK
PCM_SYNC
PCM _OUT
MSB
LSB
MSB
125 us
1 2 256255
PCM_IN
MSB
LSBMSB
Figure 19: Primary Mode Timing
PCM_CLK
PCM _SYNC
PCM _OUT
MSB
LSB
PCM _IN
125 us
MSB
1 2 3231
LSB
Figure 20: Auxiliary Mode Timing
