7 Mechanical Dimensions and
Packaging
This chapter mainly describes the mechanical dimensions and packaging specifications of EM06 series
modules. All dimensions are measured in millimeter (mm), and the dimensional tolerances are ±0.05 mm
unless otherwise specified.
7.1. Mechanical Dimensions of the Module

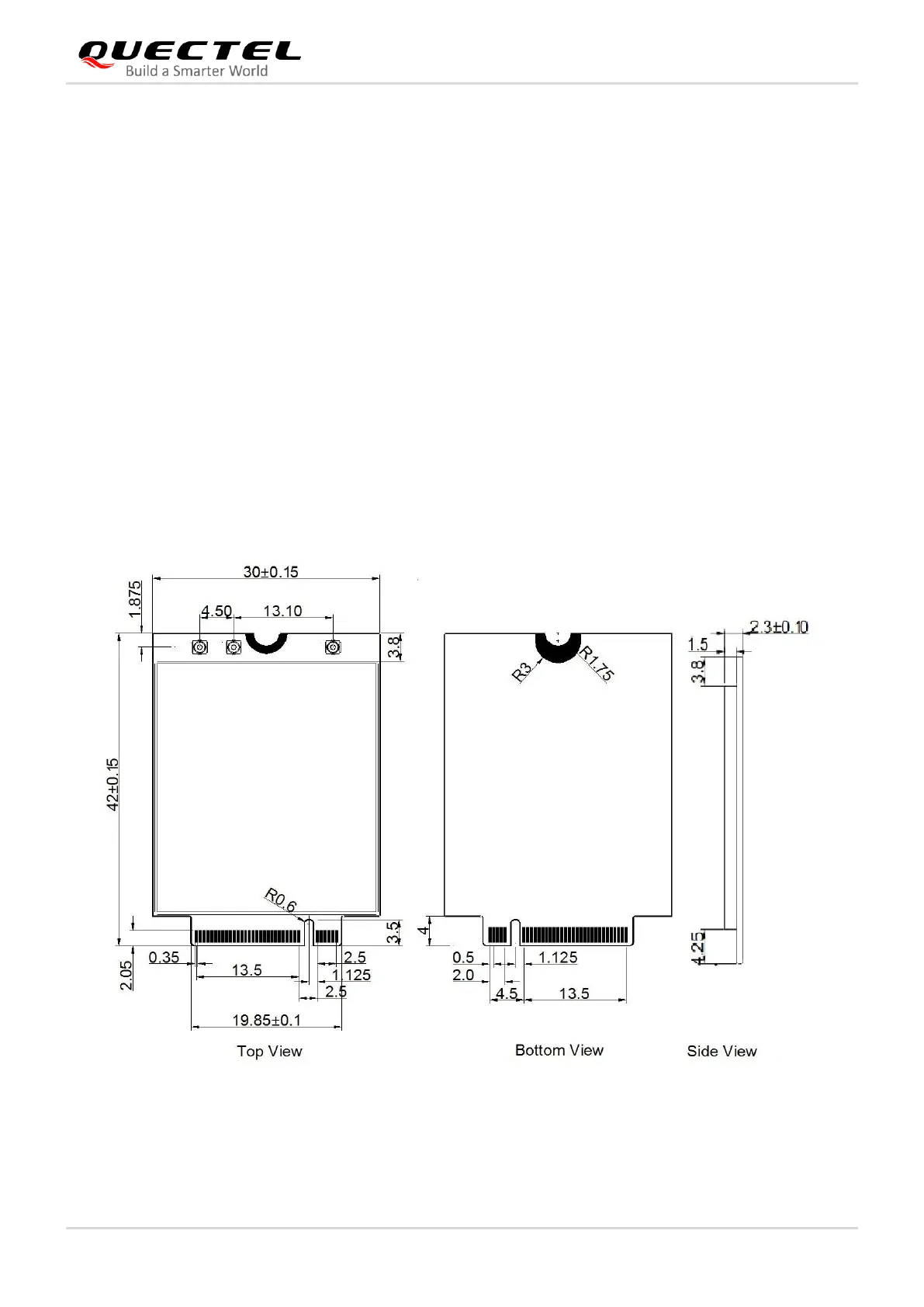

Figure 31: Mechanical Dimensions of EM06 Series (Unit: mm)
