Quectel EM06 Series User Manual

LTE-A Module Series
EM06 Series Hardware Design
EM06_Series_Hardware_Design 64 / 69
7.2. Standard Dimensions of M.2 PCI Express
The following figure shows the standard dimensions of M.2 PCI Express.

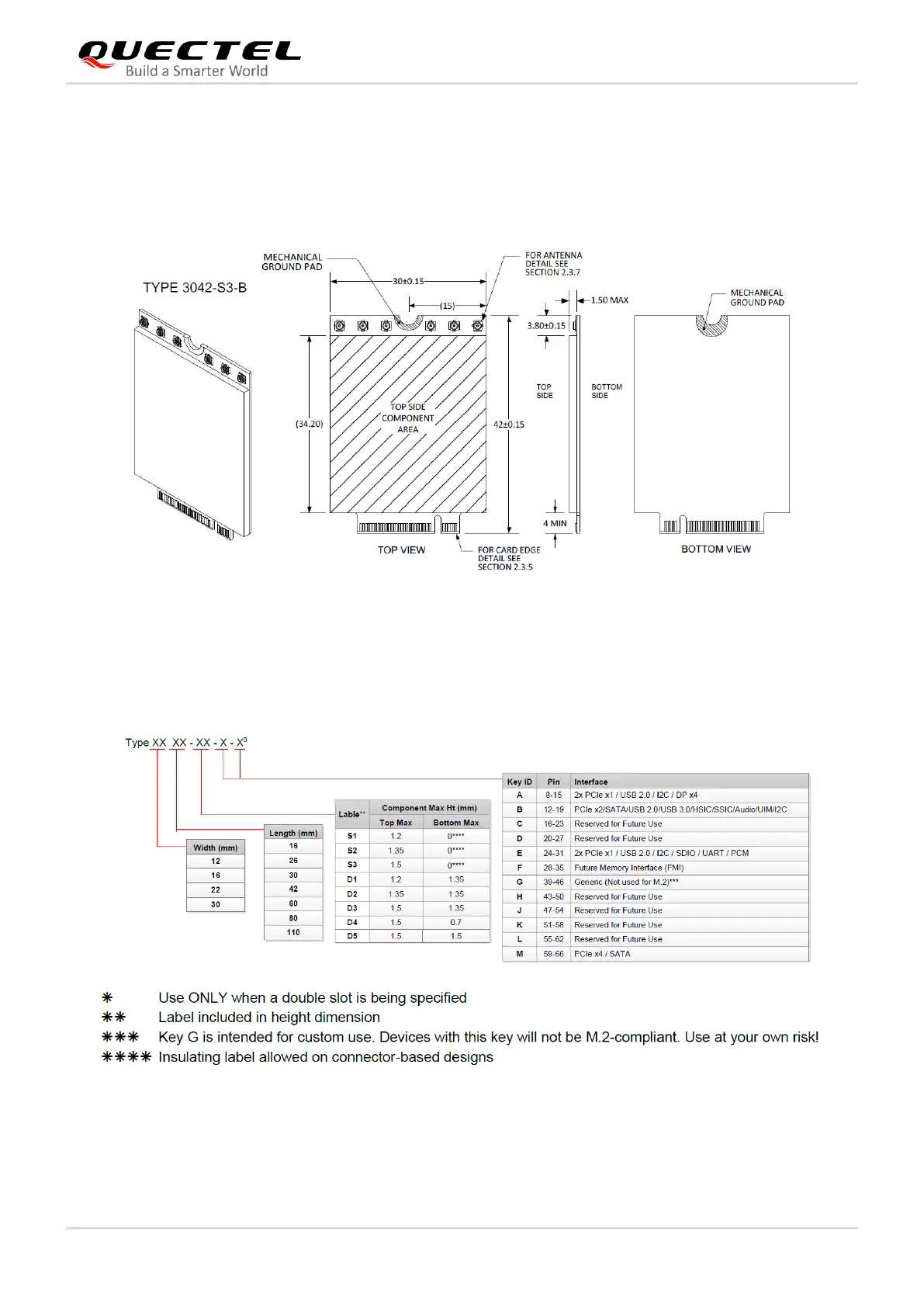

Figure 32: Standard Dimensions of M.2 Type 3042-S3 (Unit: mm)
According to M.2 nomenclature, EM06 series modules are Type 3042-S3-B (30.0 mm × 42.0 mm, max
component height on the top is 1.5 mm and single-sided; key ID is B). See document [4] for detailed B.
Figure 33: M.2 Nomenclature
