Quectel EM06 Series User Manual

LTE-A Module Series
EM06 Series Hardware Design
EM06_Series_Hardware_Design 48 / 69
Passive antenna gain: > 0 dBi
WCDMA/LTE
VSWR: ≤ 2
Efficiency: > 30 %
Max Input Power: 50 W
Input Impedance: 50 Ω
Cable insertion loss: < 1 dB
(WCDMA B5/B6/B8/B19, LTE B5/B8/B12/B13/B18/B19/B20/B26/B28/B29)
Cable insertion loss: < 1.5 dB
(WCDMA B1/B2/B3/B4, LTE B1/B2/B3/B4/B25/B32/B66)
Cable insertion loss < 2 dB
(LTE B7/B38/B40/B41/B30)
1)
GNSS can only be supported by passive antennas.
5.2.2. Antenna Connectors and Mating Plugs
The receptacle dimensions are illustrated as below.

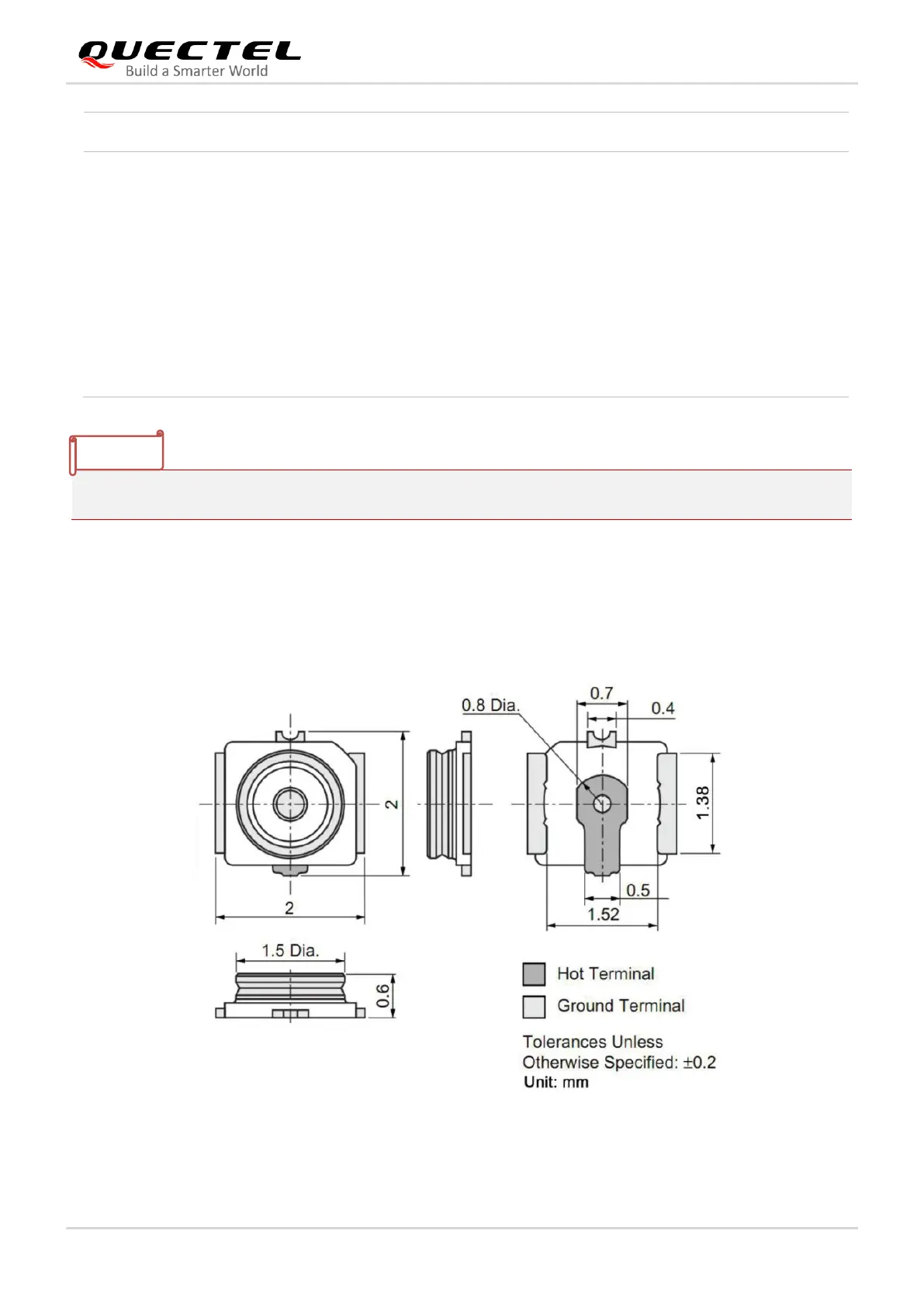

Figure 26: Dimensions of the Receptacles (Unit: mm)
NOTE
