Raisecom ISCOM2600 (B) Series User Manual

Raisecom
ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
16

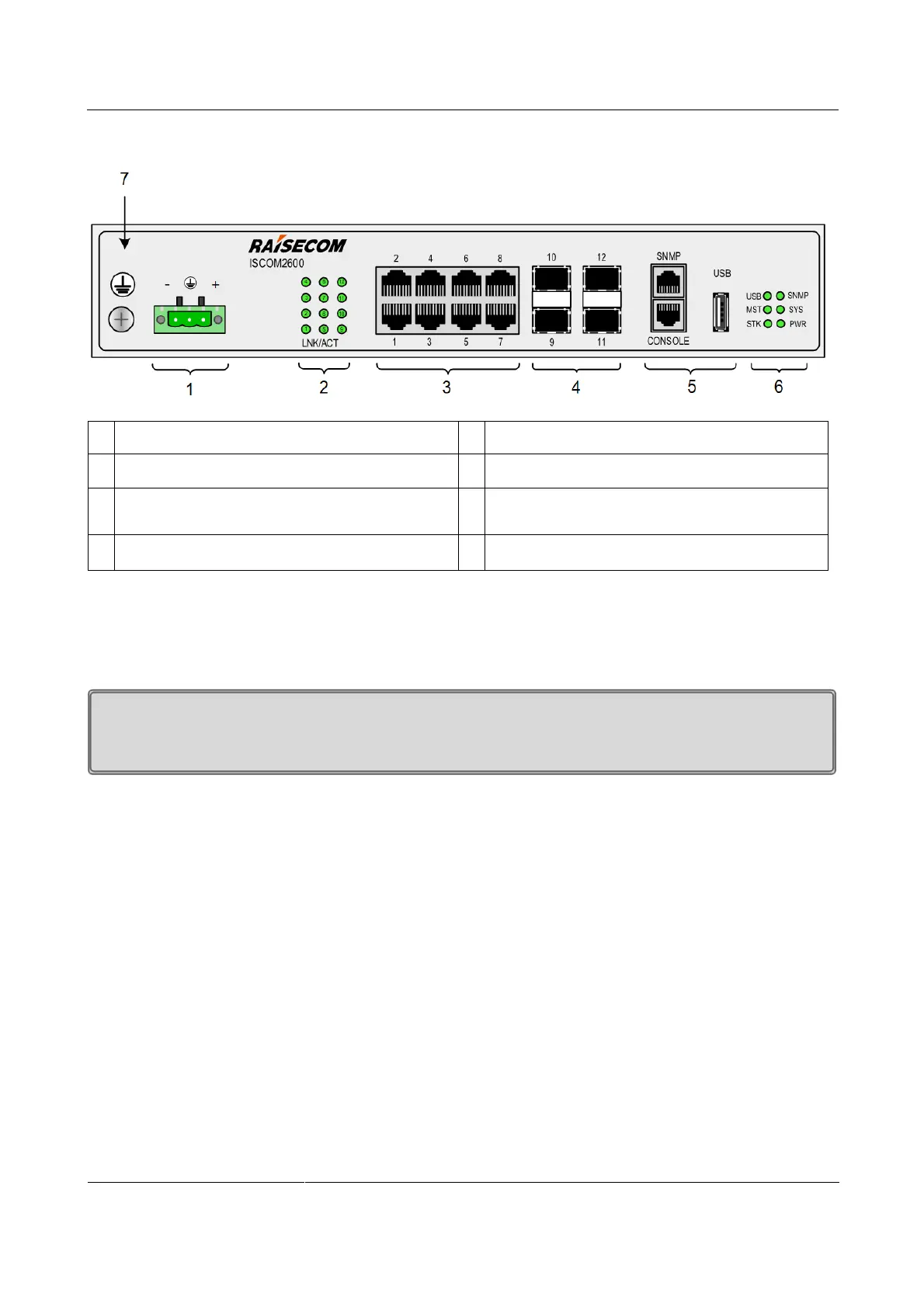

Figure 2-11 Front panel of the ISCOM2600-12X-DC
1
Power interface
2
Service interfaces (1–12) LEDs
3
Service downlink interfaces (1–8)
4
Service uplink interfaces (9–12)
5
SNMP interface, Console interface, and USB
interface
6
USB, MST, STK, SNMP, SYS, and PWR LEDs
7
Ground terminal
Figure 2-12 shows the rear panel of the ISCOM2600-12X-DC.
Figure 2-12 Rear panel of the ISCOM2600-12X-DC
2.1.4 ISCOM2600-12G
ISCOM2600-12G-AC
Figure 2-13 shows the front panel of the ISCOM2600-12G-AC.

Raisecom ISCOM2600 (B) Series Specifications

General

Brand	Raisecom
Model	ISCOM2600 (B) Series
Category	Switch
Language	English
