ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
25

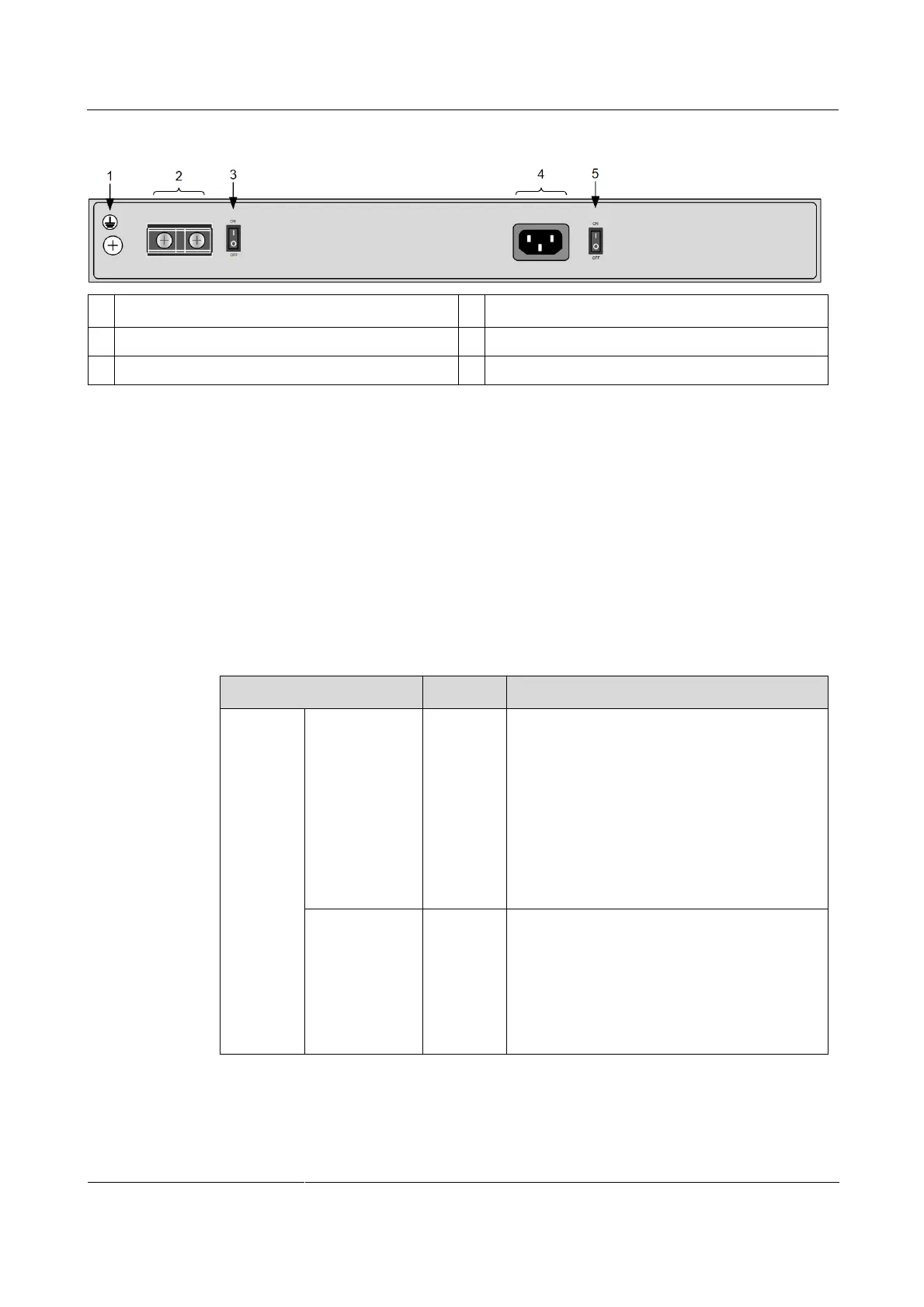

Figure 2-34 Rear panel of the ISCOM2600-28X-PWR/PWH-AC_DC
1
Ground terminal for power interface 1
2
Power interface 1
3
Switch for power interface 1
4
Power interface 2
5
Switch for power interface 2
2.2 Interfaces
The ISCOM2600 series switch provides external interfaces, such as service interfaces,
management interfaces, and power interfaces.
2.2.1 Service interfaces
Table 2-1 lists service interfaces on the ISCOM2600 series switch.
Table 2-1 Service interfaces
Interface
Quantity
Description
Uplink
interfaces
ISCOM2600-
28X
4
Support the following optical modules:

The 10 Gbit/s SFP+ optical interface
supports the following SFP+ optical
module: 10GBASE-X.

The 1000 Mbit/s SFP optical interface
supports the following SFP optical module:
1000BASE-X.

The 1000 Mbit/s SFP electrical interface
supports the following SFP electrical
module: 1000BASE-T.
ISCOM2600-
28G
4
Support the following optical modules:

The 1000 Mbit/s SFP optical interface
supports the following SFP optical module:
1000BASE-X.

The 1000 Mbit/s SFP electrical interface
supports the following SFP electrical
module: 1000BASE-T.
