Raisecom ISCOM2600 (B) Series User Manual

Raisecom
ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
38

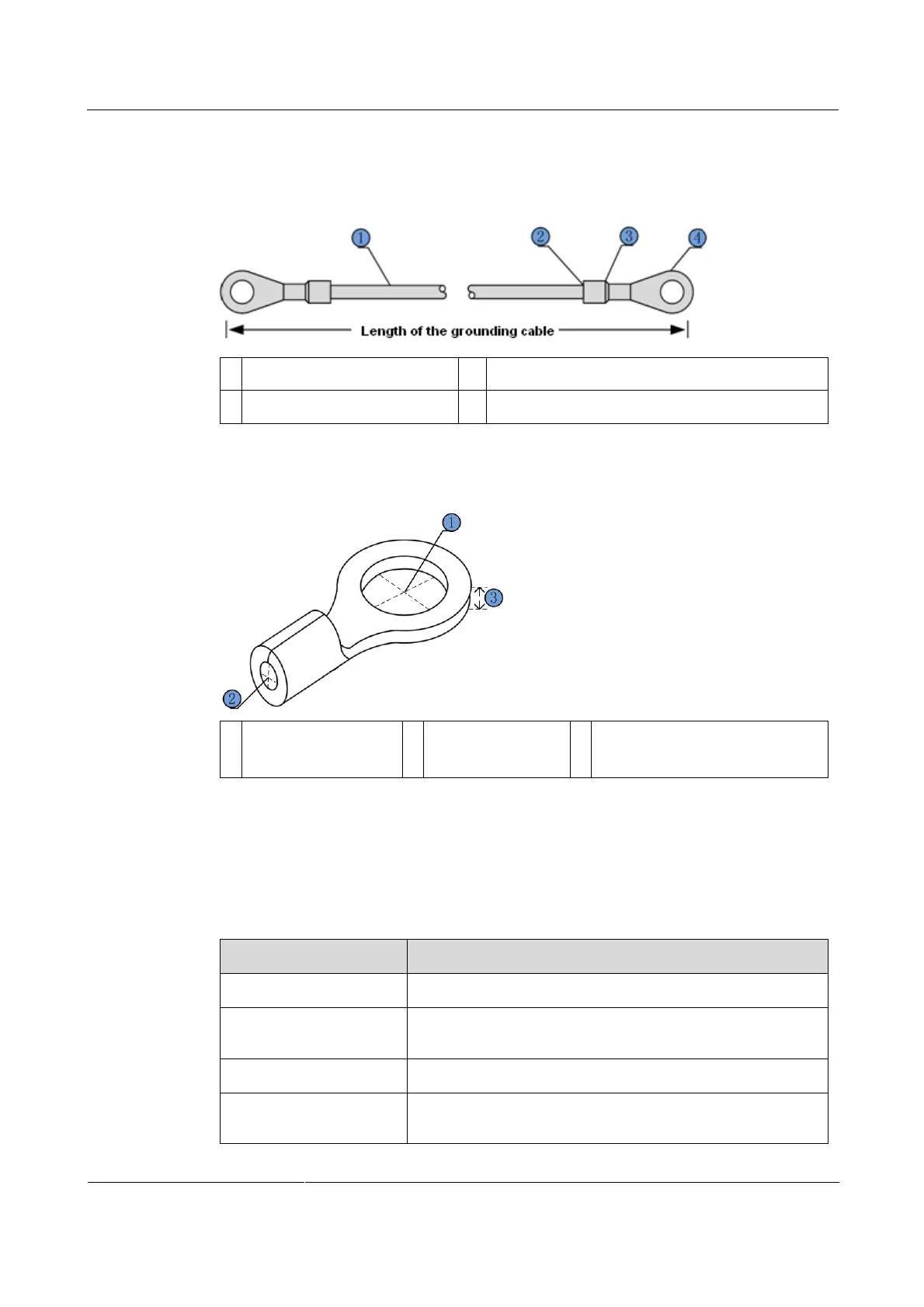

flame-retardant conducting wire. Figure 2-43 and Figure 2-44 show the ground cable and OT
terminal.
Figure 2-43 Ground cable
1
Conducting wire
2
Stripped end (connected to the OT terminal)
3
Insulating sheath
4
OT terminal
Figure 2-44 OT terminal
1
Inner diameter of
soldering lug
2
Inner diameter of
sheath
3
Thickness of soldering terminal
Technical specifications
Table 2-17 lists technical specifications of the ground cable.
Table 2-17 Technical specifications of the ground cable
Parameter
Description
Model (recommended)
PIL-ground cable-Φ4-1m.
Conducting wire
Yellow/Green multi-strand copper-core conducting wire
(1.25 mm
2
)
Model
Protective ground round pressed terminal (M4)
Cross-sectional area of
the conducting wire
16–15AWG (1.2–1.5 mm
2
)
