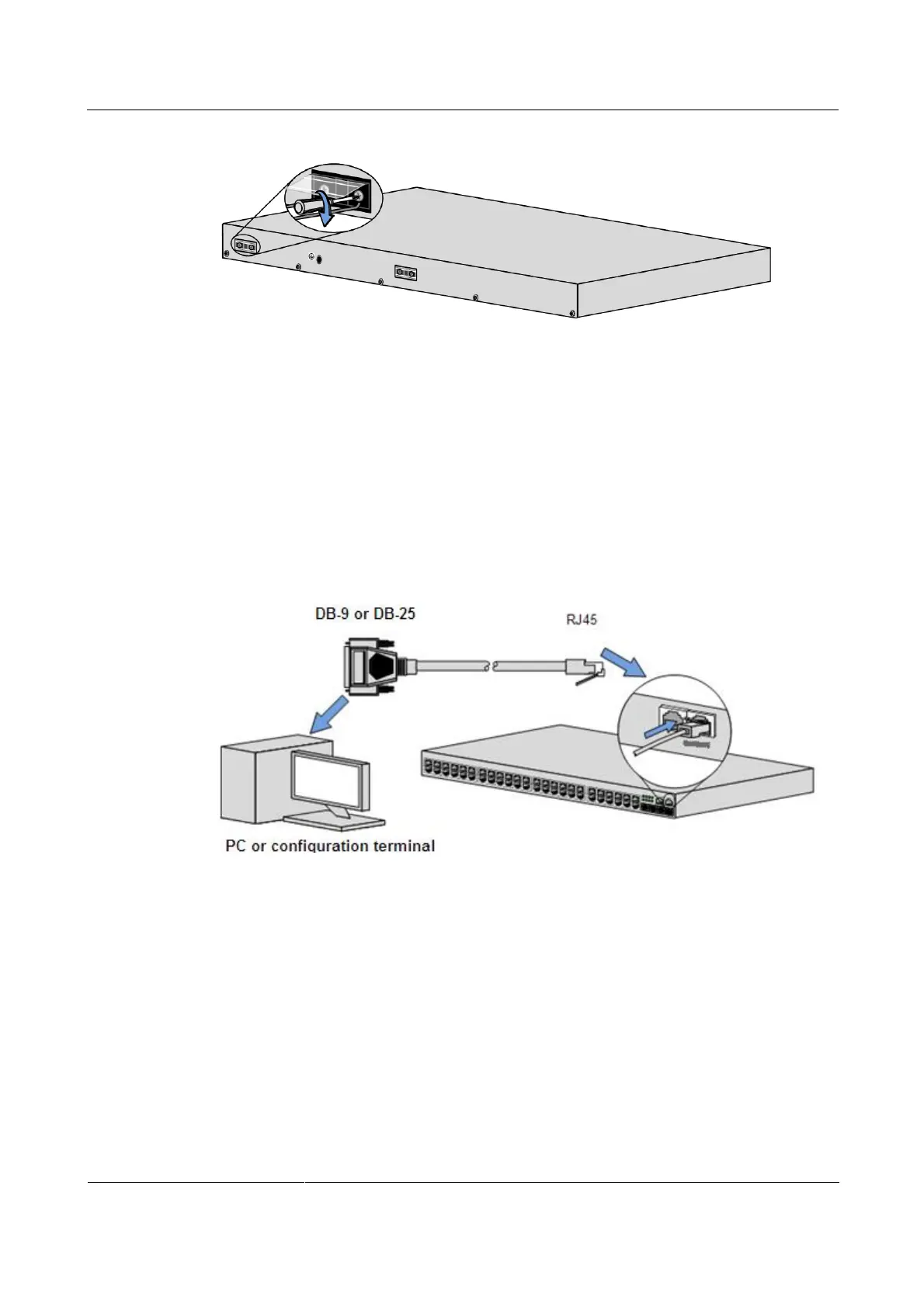

Figure 4-10 Connecting the DC power cable
Step 4 Connect the other end of the DC power cable to the power sourcing equipment in the
equipment room.
Connecting RJ45 Console cable
Install the RJ45 Console cable as below:
Step 1 Insert the RJ45 connector of the RJ45 Console cable into the Console interface on the
ISCOM2600 series switch.
Step 2 Insert the other end of the RJ45 Console cable into the RS-232 serial interface on a PC (or
maintenance terminal), as shown in Figure 4-11.
Figure 4-11 Connecting the RJ45 Console cable
4.2 Installing software
The ISCOM2600 series switch is installed with all necessary software before delivery so that
it can be powered on immediately for use after hardware installation is complete.
You can upgrade software of the ISCOM2600 series switch. For details, see ISCOM2600 (B)
Series Configuration Guide.
