ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
23

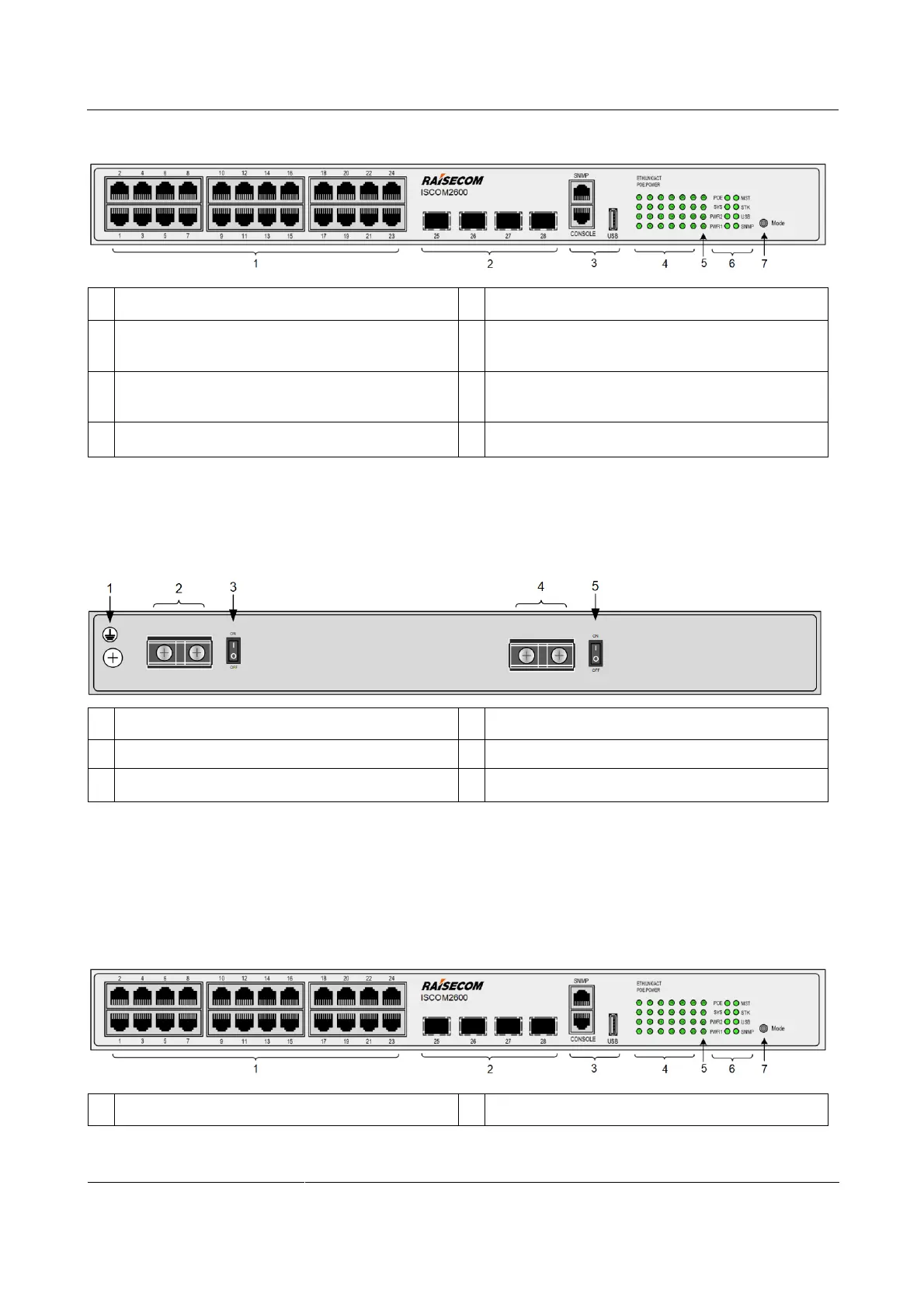

Figure 2-29 Front panel of the ISCOM2600-28X-PWR/PWH-DC/D
1
Service downlink interfaces (1–24)
2
Service uplink interfaces (25–28)
3
SNMP interface, Console interface, and USB
interface
4
Service downlink interfaces (1–24) LEDs
5
Service uplink interfaces (25–28) LEDs
6
POE, SYS, PWR1, PWR2, MST, STK, USB, and
SNMP LEDs
7
PoE mode switching button
Figure 2-30 shows the rear panel of the ISCOM2600-28X-PWR/PWH-DC/D.
Figure 2-30 Rear panel of the ISCOM2600-28X-PWR/PWH-DC/D
1
Ground terminal for power interface 1
2
Power interface 1
3
Switch for power interface 1
4
Power interface 2
5
Switch for power interface 2
ISCOM2600-28X-PWR/PWH-AC/S
Figure 2-31 shows the front panel of the ISCOM2600-28X-PWR/PWH-AC/S.
Figure 2-31 Front panel of the ISCOM2600-28X-PWR/PWH-AC/S
1
Service downlink interfaces (1–24)
2
Service uplink interfaces (25–28)
