P/N 016-5032-114 Rev. A 15
HYDRAULIC SYSTEM INSTALLATION
MOUNT THE STEERING VALVE

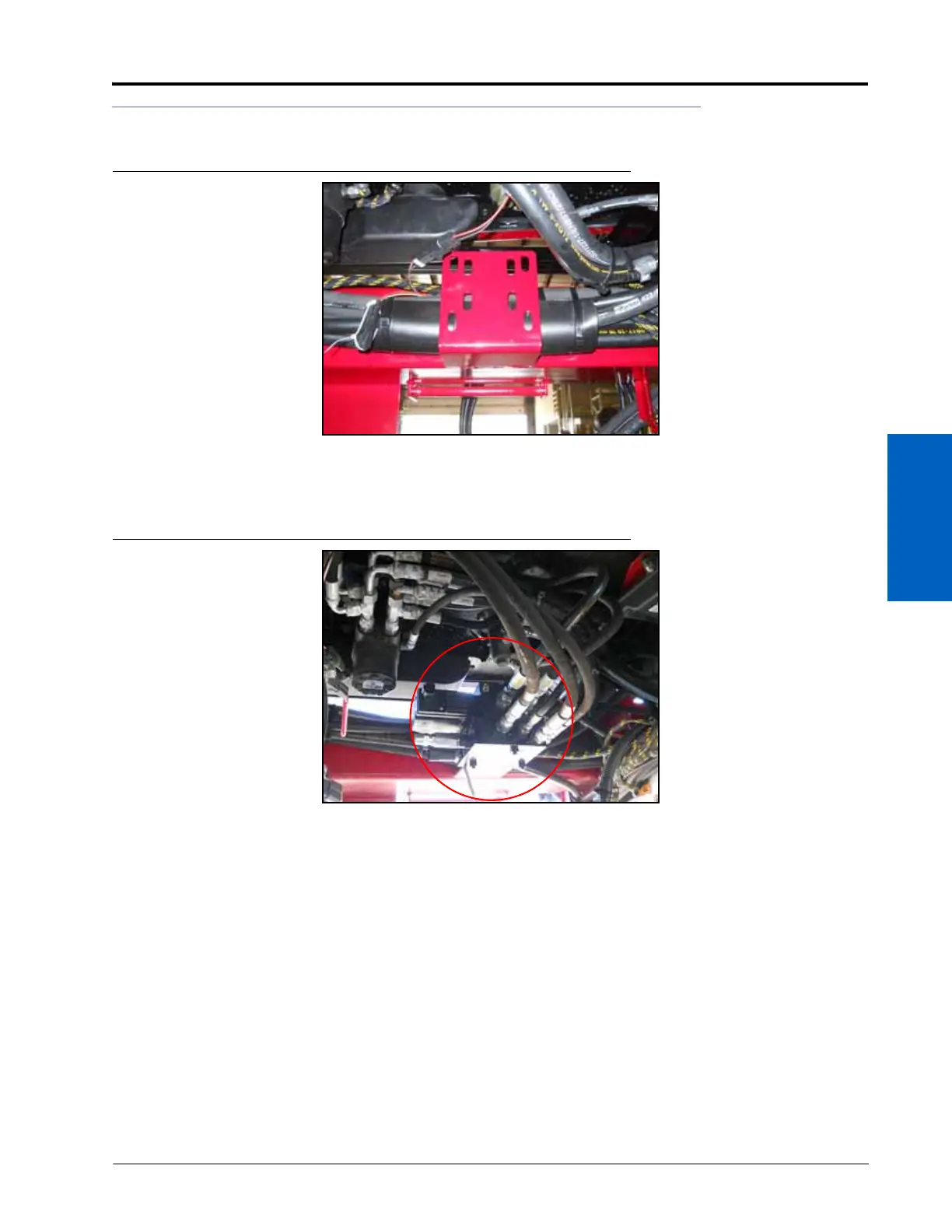

FIGURE 2. Steering Valve Mounting Location
1. Locate the machine’s existing mounting plate on the machine’s front cross-member, to the right of the steering
orbital.
FIGURE 3. Steering Valve Installed
2. Mount the steering valve (P/N 334-0003-088) to the machine’s mounting plate using four 5/16” hex bolts (P/N
311-0052-104), four 5/16” flat washers (P/N 313-2301-012), and four 5/16” split lock washers (P/N 313-1000-019).
