CHAPTER 5
28 Miller Nitro 5000 Series & New Holland Guardian F Series RS1™ HDU Guidance and Steering Installation Manual

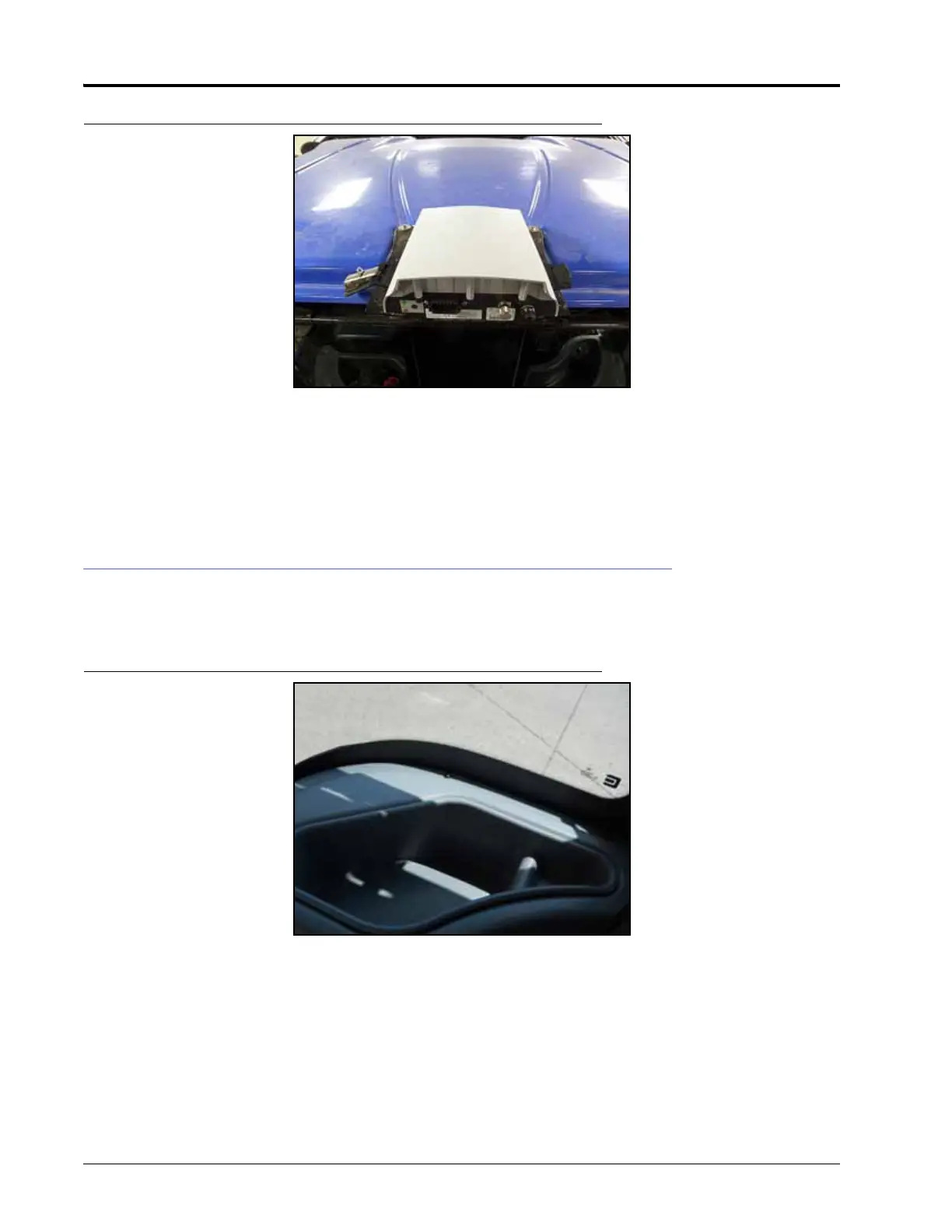

FIGURE 3. RS1 Unit Installed on Cab Roof
3. Insert the tab of the RS1 latch mounting bracket into the slotted tab of the receiver mounting bracket to
interlock the brackets.
4. Secure the RS1 mounting bracket to the latch mounting bracket by securing the latch.
NOTE: It may be necessary to adjust the latch in order to secure the RS1 unit.
INSTALL THE HYDRAULIC DRIVE UNIT (HDU)
NOTE: If SmarTrax is installed on the machine, remove the SmarTrax node and node harness.
FIGURE 4. Plastic Tray to be Removed
1. Remove the plastic tray located in the right-rear corner of the cab.
2. Locate the factory-installed node mounting bracket in the front of the compartment.
To Next Page
