CHAPTER 3
16 Miller Nitro 5000 Series & New Holland Guardian F Series RS1™ HDU Guidance and Steering Installation Manual
INSTALL THE LEFT AND RIGHT STEERING HOSES

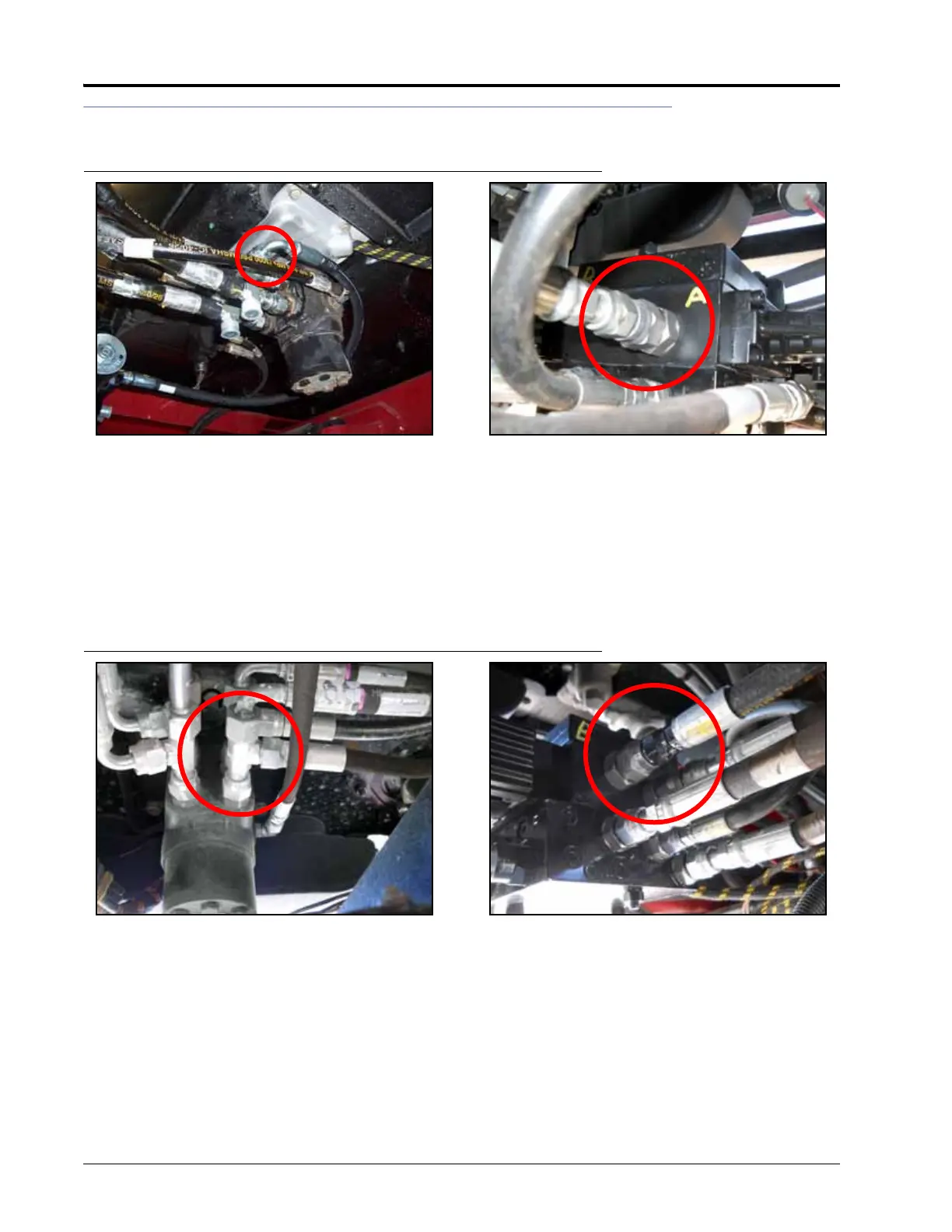

FIGURE 4. Left Steering Hose Installed
1. Disconnect the machine’s left steering hose from the steering orbital.
2. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) in the open port of the steering
orbital.
3. Connect the machine’s left steering hose to the opposite end of the installed tee fitting.
4. Install the -8 end of the supplied hydraulic hose (P/N 214-1000-950) on the 90° end of the installed tee fitting.
5. Connect the -6 end of the installed hydraulic hose to the fitting installed in Port A of the steering valve
(P/N 334-0003-094).
FIGURE 5. Right Steering Hose Connections
6. Disconnect the machine’s right steering hose from the steering orbital.
7. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) in the open port of the steering
orbital.
8. Connect the machine’s right steering hose to the opposite end of the installed tee fitting.
9. Install the -8 end of the supplied hydraulic hose (P/N 214-1000-950) on the 90° end of the installed tee fitting.
10. Connect the -6 end of the installed hydraulic hose to the fitting installed in Port B of the steering valve.
