CHAPTER 5
30 Miller Nitro 5000 Series & New Holland Guardian F Series RS1™ HDU Guidance and Steering Installation Manual

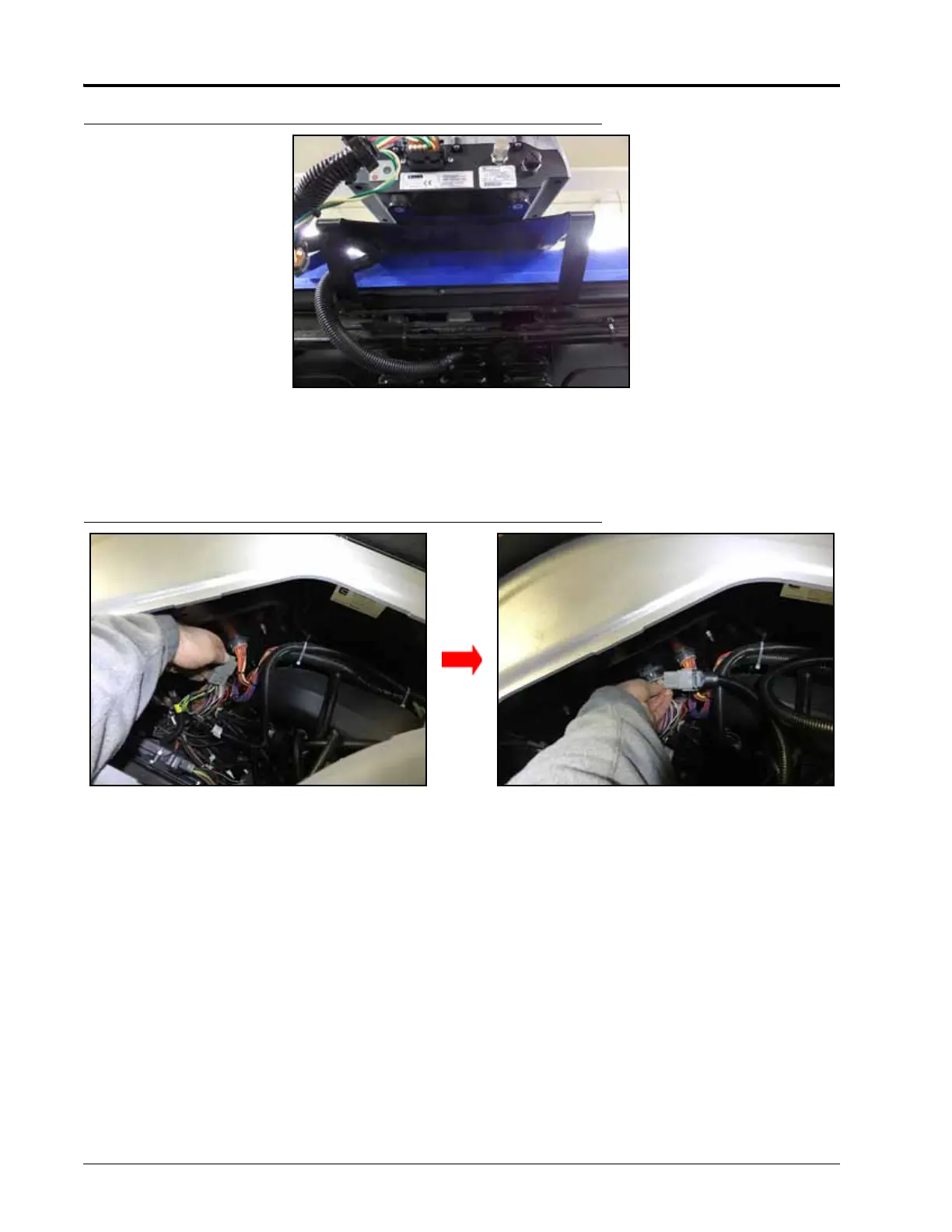

FIGURE 7. RS1 Harness Connected to Bulkhead
2. Connect the other end of the RS1 harness to the machine’s bulkhead connector.
INSTALL THE HDU HARNESS
FIGURE 8. GPS POWER/CAN Connector
1. Trace the cable from the machine’s GPS bulkhead connector down the rear wall of the machine and into the
instructional seat compartment.
2. Install the GPS POWER/CAN connector of the HDU harness cable (P/N 115-4010-063) to the machine’s mating
AR067 harness connector.
