Raven RS1/HDU Guidance And Steering Installation Manual

3
P/N 016-5032-114 Rev. A 19
HYDRAULIC SYSTEM INSTALLATION
INSTALL THE LOAD SENSE HOSES

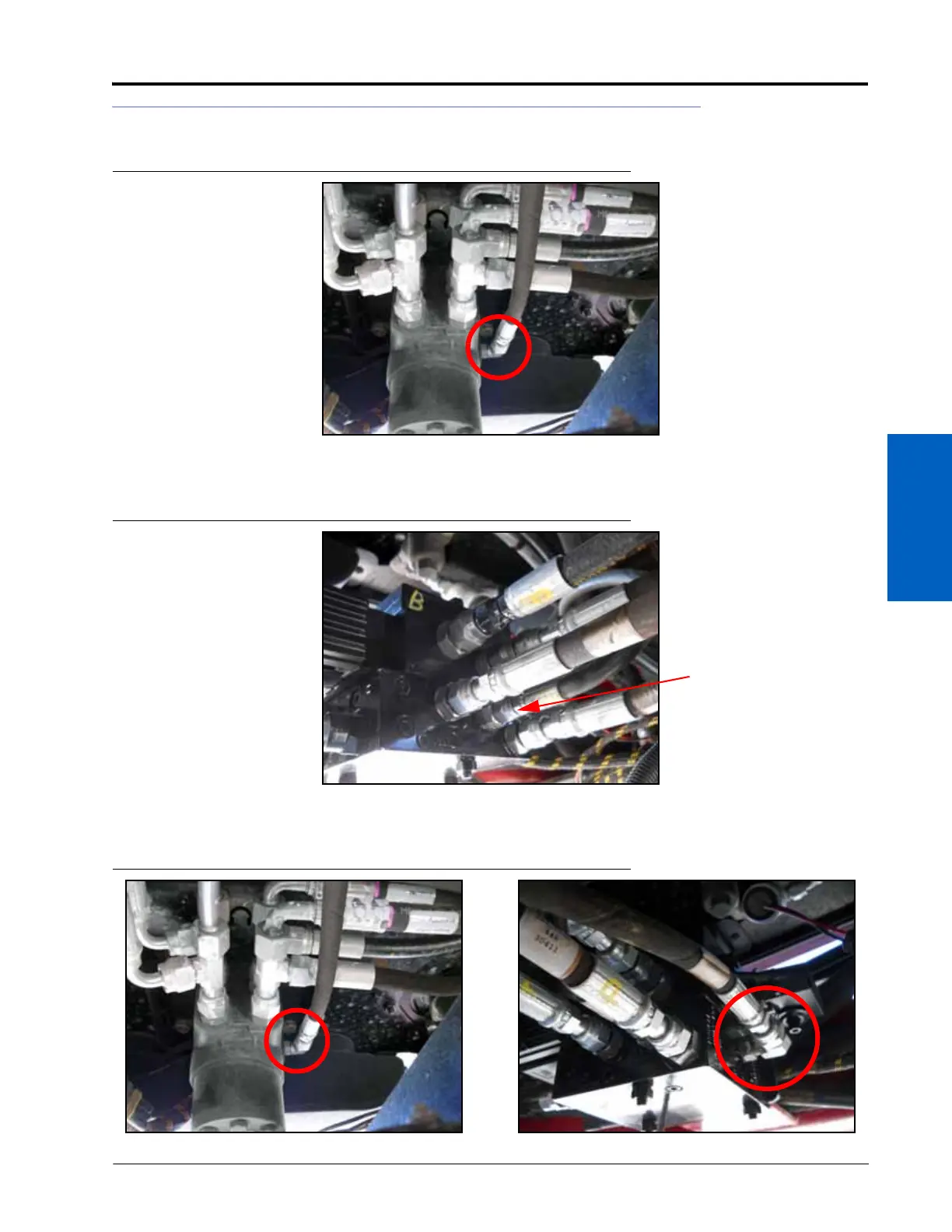

FIGURE 10. Machine’s Load Sense Hose on Steering Orbital
1. Disconnect the machine’s load sense hose from the steering orbital.
FIGURE 11. LSPV Connection on the Steering Valve
2. Connect the load sense hose to the fitting installed in Port LSPV of the steering valve (P/N 334-0003-094).
FIGURE 12. LS STEER Connection
Machine’s Load Sense
Hose
