Chapter 2: General Operation 9
2.5 Additional screen information

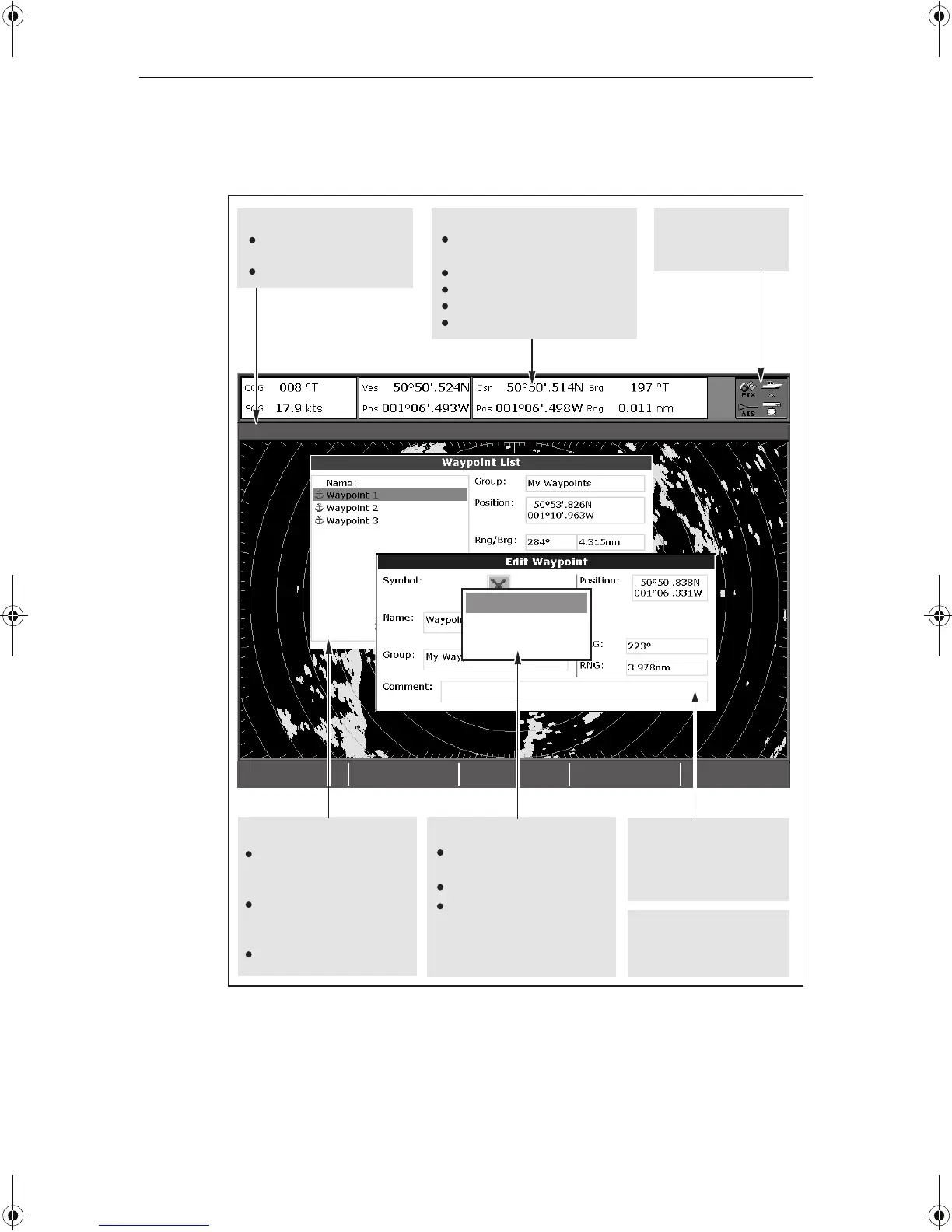

Information is displayed on the screen using a variety of methods:
* For details of how to adjust and edit the data bar, please see page 180
Note: To change the size of the text on screen, please see page 191.
3nm
Head-Up Relative Motion Rings ½nm
ACKNOWLEDGE
Status icons
Confirm status of DSM,
GPS and scanner.
Status bar
Gives information specific to
each application.
Cannot be edited or moved.
Gives information associated with
your boat or the environment.
Customisable content*
Vertical or horizontal format*
Display or hide*.
Normal or large size*.
Data bar
D7456_1
Contain information you
have added to the display's
memory e.g. waypoints.
Highlight an entry with
trackpad or rotary control to
display related information.
Editable using soft keys.
Dialog boxes
Enable data to be edited or
entered into a store/list
e.g. editing a waypoint.
Alert you to a situation e.g.
alarm, function not available.
Not editable.
May require a response e.g.
press ACKNOWLEDGE to
silence alarms.
Pop-up messages
MARPA ALARM
Target lost (on screen)
Data base lists
Menus (see next page)
Used to configure system
to your particular needs.
3nm
Head-Up Relative Motion Rings ½nm
ACKNOWLEDGE
Status icons
Confirm status of DSM,
GPS, AIS and scanner.
Status bar
D7456_2
Status bar
Gives information specific to
each application.
Cannot be edited or moved.
Gives information specific to
each application.
Cannot be edited or moved.
Gives information associated with
your boat or the environment.
Customisable content*
Vertical or horizontal format*
Display or hide*.
Normal or large size*.
Data bar
Contain information you have
added to the display's memory
e.g. waypoints.
Highlight an entry using
trackpad or rotary control to
display related information.
Editable using soft keys.
Dialog boxes
Enable data to be edited or
entered into a store/list e.g.
editing a waypoint.
Alert you to a situation e.g.
alarm, function not available.
Not editable.
May require a response e.g.
press ACKNOWLEDGE to
silence alarms.
Pop-up messages
MARPA ALARM
Target lost (on screen)
Data base lists
Menus (see next page)
Used to configure system to
your particular needs.
