30 C-Series Display Reference Manual

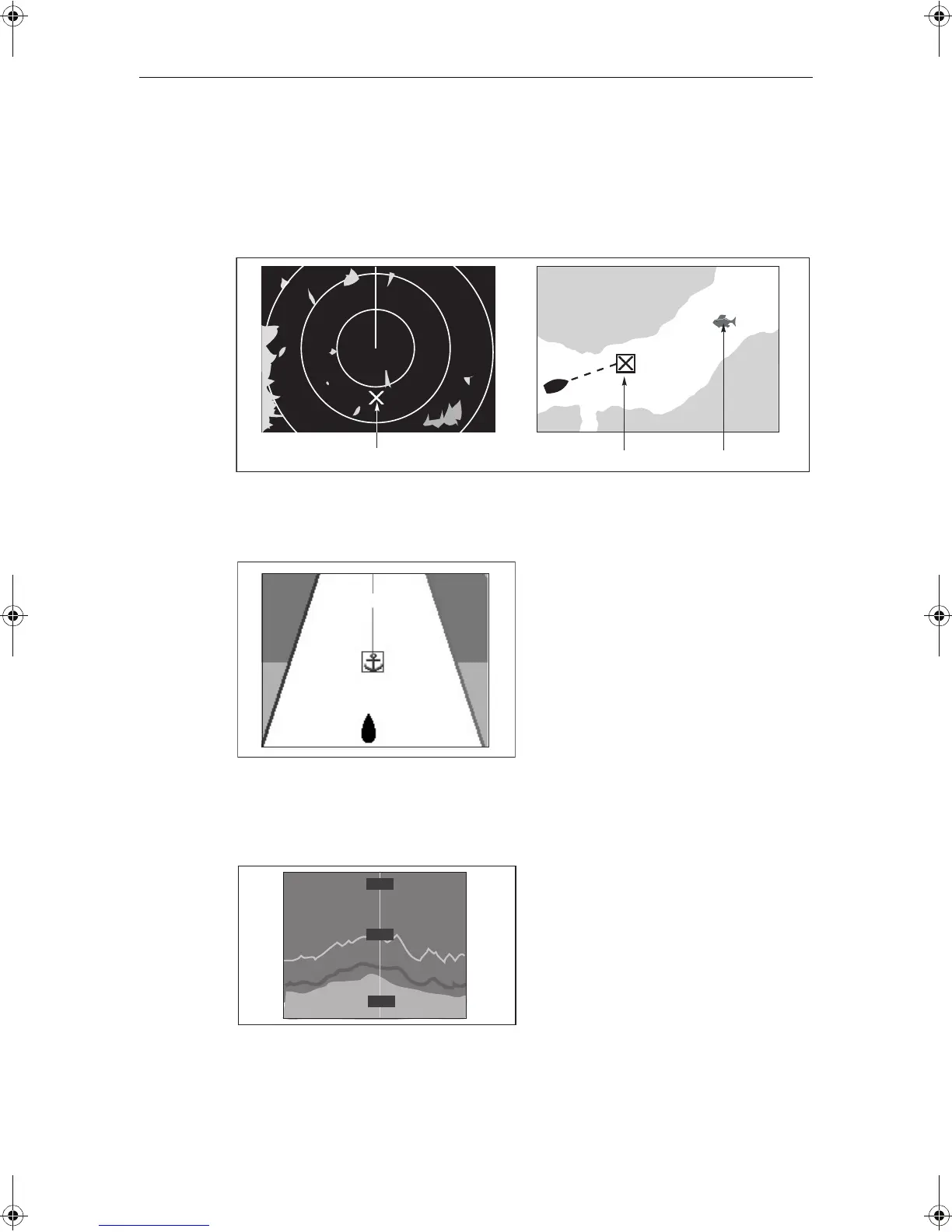

3.2 How are waypoints represented?
Waypoints on Chart and Radar windows
On chart and radar windows, a waypoint is represented when it is both active
(displayed in a box) and inactive (no box) i.e.
Waypoints on CDI windows
On CDI windows, a waypoint is represented only when it is active (displayed in a box).
Waypoints on Fishfinder windows
When a waypoint is created it is represented on fishfinder windows, by a vertical line
labelled WPT. This symbology cannot be changed.
Active waypoint
Waypoint 1
Default waypoint
Alternative symbol
D8694_1
D8930_1
D8697_1
WPT
WPT
WPT
81221_4.book Page 30 Tuesday, February 28, 2006 5:24 PM
