26.6Datacellanddatabar
customization
Youcancustomizethedatadisplayedinon-screencellswitha
widerangeofdata.
Customizabledataisdisplayedinthedatabar,extendeddatabar
(HybridTouchdisplaysonly)ordatacellsareasofthescreen.
Thedatabar,extendeddatabaranddatacellsareavailablein
allapplications.

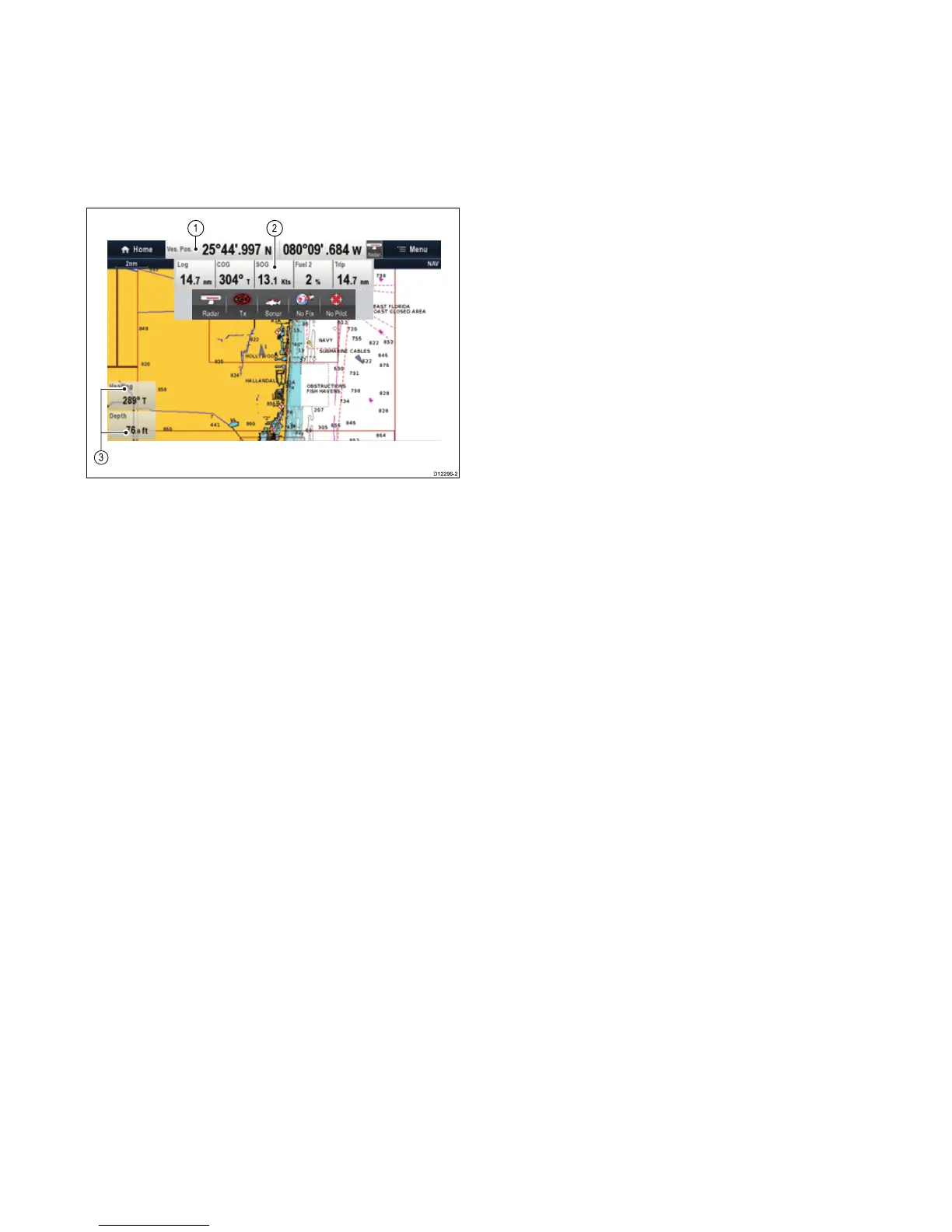

The3areasofthescreenwherecustomizabledataisdisplayed
areillustratedanddescribedbelow:
D12 29 6-2
2
3
1
1.Databar—permanentlydisplayedatthetopofthescreen
inthechart,radar,shnder,andweatherapplications.
Thedatabarcontainsdatacellsthatcanbecustomizedto
displaydatafromawiderangeofcategories.
2.ExpandedDatabar—(HybridTouchdisplaysonly)
displayedwhenyoutouchthedatabar.Additionaldatacells
canbedisplayed,fromawiderangeofdatacategories.The
expandeddatabarisdisplayeduntilthescreenistouched
again.Youcandisplaythestatusiconsbelowtheexpanded
databar.Thisprovidesstatusinformationforexternal
equipment:
3.Dataoverlaycells—upto2datacellscanbedisplayed.
Eachcellcandisplayoneitemofdatafromtheavailable
datacategories.Dataisdisplayedon-screenpermanently.
Customizingdataoverlaycells
Inthechart,radar,shnder,orweatherapplication:
1.SelectMenu.
2.SelectPresentation.
3.SelectDataOverlaySet-up.
4.T ocustomizeDataCell1,selectDataCell1>ON.
5.T ocustomizeDataCell2,selectDataCell2>ON.
6.ChoosetheSelectDataCell1orSelectDataCell2menu
item,asappropriate.
7.Selectthecategorythatreectsthetypeofdatayouwantto
displayinthecell.Forexample,Depthdata.
8.Selectthedataitem.
Thedatayouselectedisdisplayedon-screeninthe
appropriatedataoverlaycell.
Customizingthedatabar
Fromthehomescreen:
1.SelectCustomize.
2.SelectDatabarSet-up.
3.SelectEditDatabar.
4.Inthedatabar,selectthecellthatyouwanttochange.
TheSelectDataCategorymenuwillbedisplayed.
5.Selectthecategorythatreectsthetypeofdatayouwantto
displayinthecell.Forexample,Depthdata.
6.Selectthedataitem.
Thedatayouselectedisdisplayedon-screeninthe
appropriatecell.
7.SelectHomeorBackwhencompleted.
Displayingstatusiconsinthedatabar
Touchscreenmultifunctiondisplaysenableyoutodisplaystatus
iconsinthedatabar.
Fromthehomescreen:
1.SelectCustomize.
2.SelectDatabarSet-up.
3.SelectStatusIconBarsothatOnishighlighted.
Thestatusiconsarenowdisplayedbelowtheexpanded
databar.
