Installation

Fillcontrol Auto Make-up and degassing — 06.07.2016 - Rev. B English —

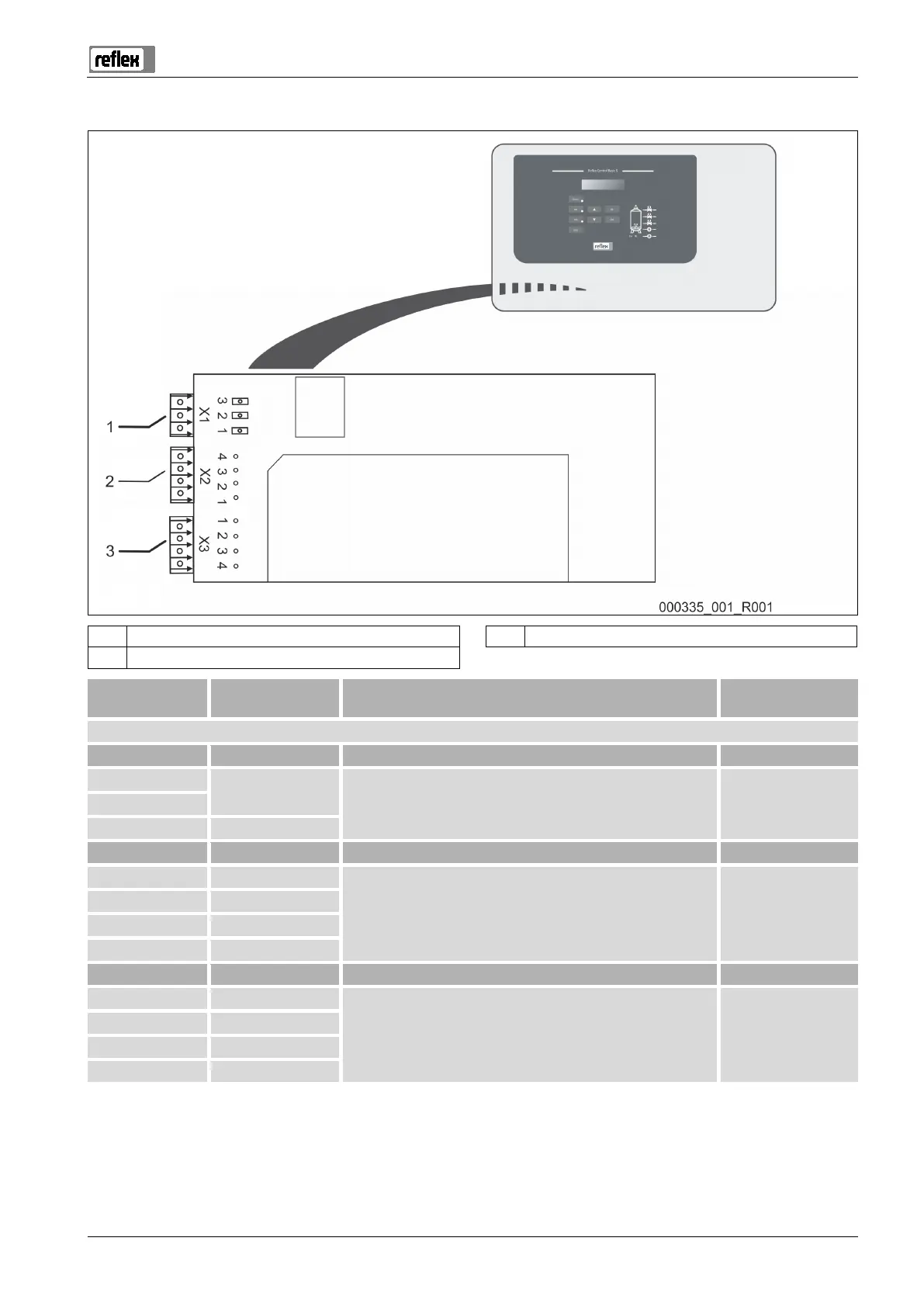

6.4.2 Terminal plan, operating unit

1 Supply 3 RS-485 interface

2 I/O interface

Terminal number

Signal

Function

Wiring

10 V AC

10 V supply Factory 2

3 FE

1 GND

I/O interface

• Interface to the main circuit board

Factory

2 T x D

3 R x D

4 +5 V

1 GND

RS-485 interface User supplied

2 A

3 B

4 Shielding
