Parameter Detail Description
A:Li or GA Flow Unit
Current Flow Unit
(Li: Liters/min, GA: Gallons/min)
b:Fr
Fan Speed (RPM) Current Fan Speed RPM Value
C:Lc Lock Mode
Lock Mode is In Use (ON) or Unused
(OFF)
Allows user to lock out any temperature
change.
d:Op
Operating Temperature Current Heat Exchanger Operating
Temperature
E:dH
DHW Outlet Temperature Current DHW Outlet Temperature
F:Eh
Exhaust Temperature Current Exhaust Temperature
H:In
Inlet Water Temperature Current Inlet Water Temperature
I:rt
PH
Power On Time Power On Time: 1,000 hour increments
rH
Burner Operating Time Burner Operating Time: 1,000 hour
increments
bnCY
Burner Cycles Burner Cycles: 1,000 times unit
displayed
PPHr
Pump Running Time 1,000 hour increments
J:AG
AGM Adjusts AGM Position: + / - 50
K:TA
Time Adjustment Current Clock Setting
Table 25 – Status Mode Display Screen Descriptions – NOTE: Shaded Parameters Not Used on This Software Version
Turn the dial counterclockwise and clockwise to scroll through the displayed parameters. To view parameter
details, press the button at the appropriate screen. Press the or buttons to leave the parameter.
Press the button again to return to Operation Mode.
To turn on Lock Mode, press the button at the C: Lc parameter. Turn the dial counterclockwise and clockwise
to scroll On or Off. Press the button to save the selection and return to the parameters.
Press the button again to return to Operation Mode.
NOTE: The Control System will not allow the changes if Lock Mode is activated. Lock Mode will have to be turned off
before making further changes
▪ F.CHANGINGTHETIME
Press and hold the button for ve seconds when the display panel is powered ON to enter Status Display
Mode. Turn the dial counterclockwise and clockwise to scroll through the displayed parameters to
parameter K:TA Press the button to enter and change the time. The time can be adjusted as follows: Year /
Month / Date / Hour / Minute / Day of Week.

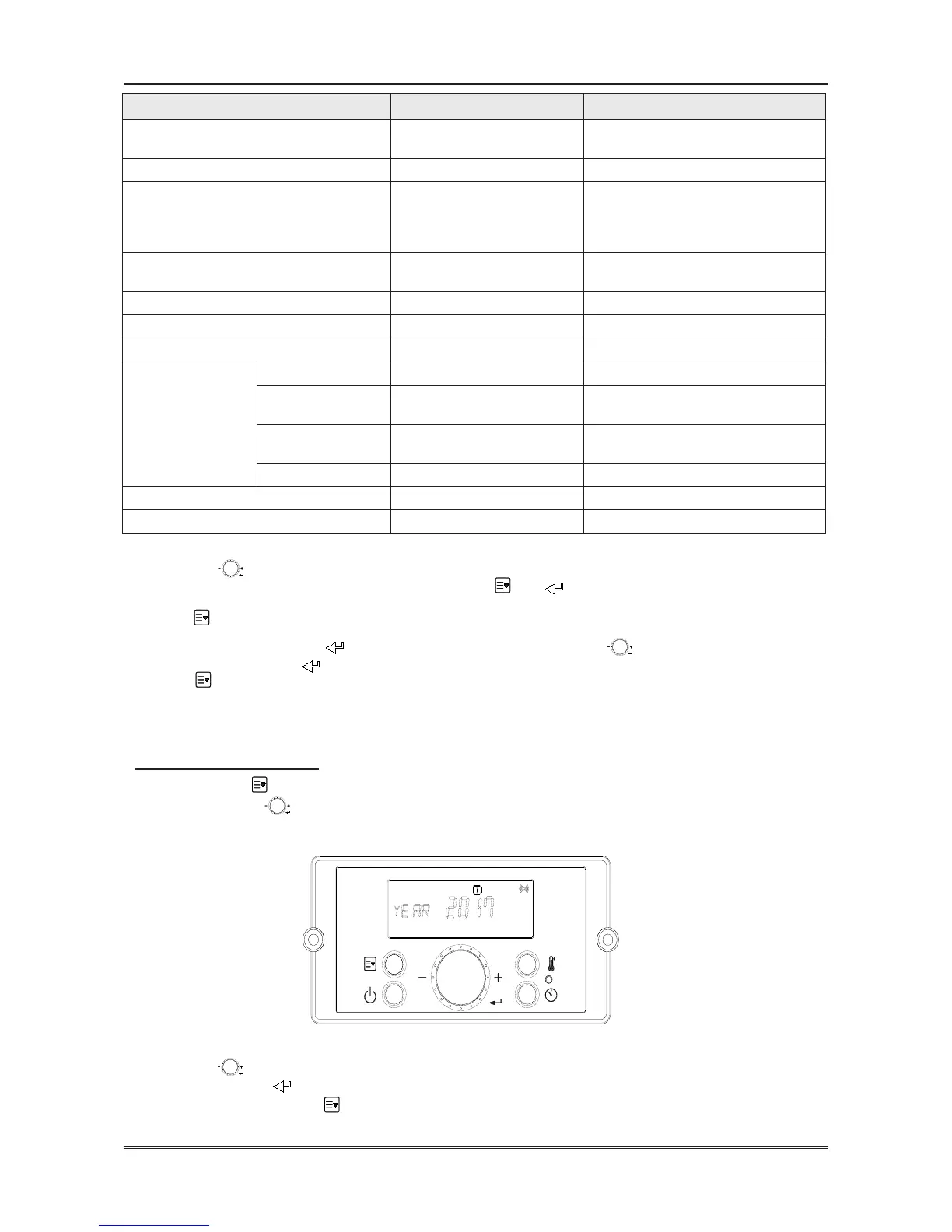

Figure 37 – Changing the Time Screen
Turn the dial counterclockwise to lower and clockwise to raise the current time setting. After changing
the setting, press the button to save it. The next adjustable setting will appear. After the time settings
have been entered, press the button to save and return to the Status Display screens.
Chapter3HowtoUseTheControlPanel
