Ricoh Aficio SP C320DN User Manual

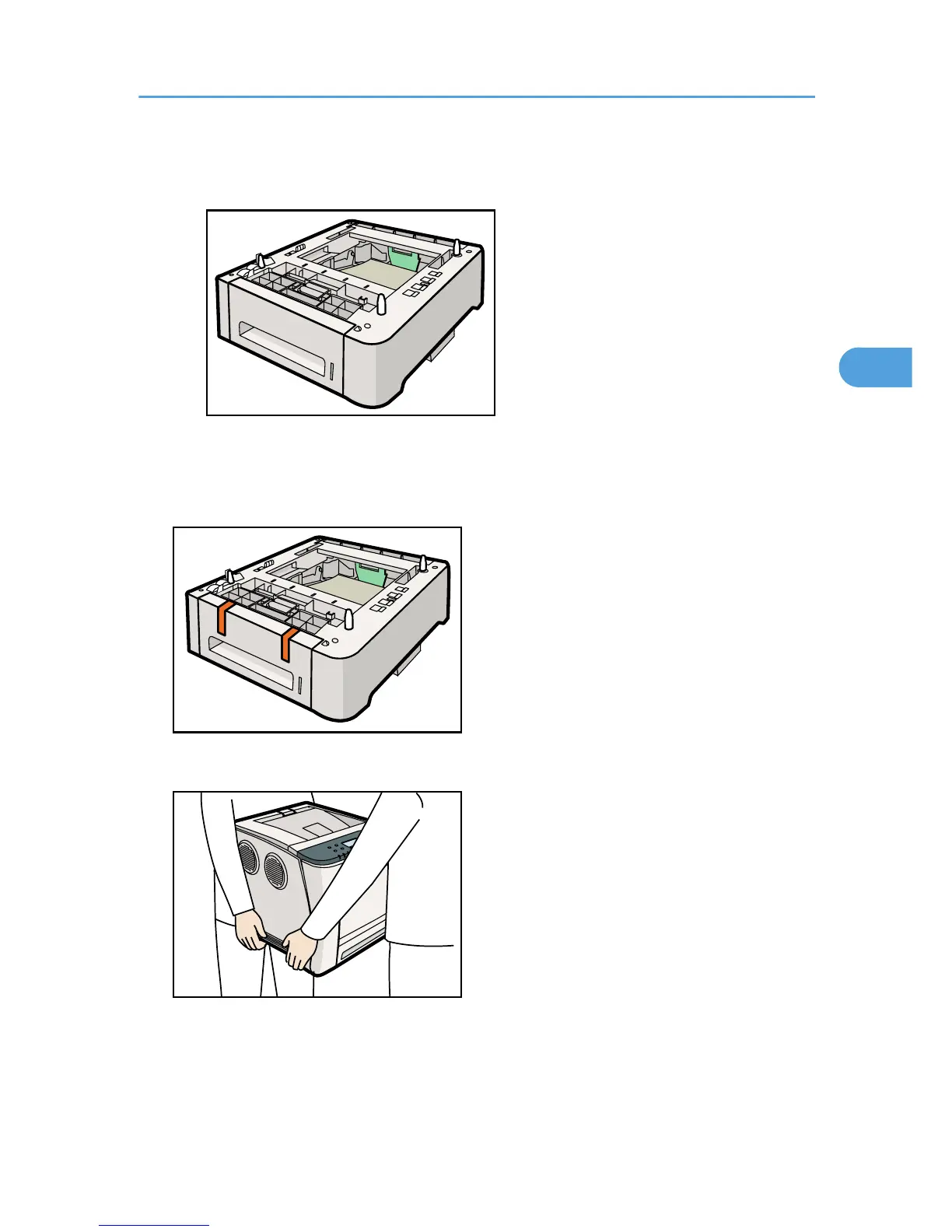

1. Check the package contains the following:
Paper Feed Unit (including a paper tray)
CBK054
2. Turn off the printer's power switch, and then unplug the printer's power cord from the wall
outlet.
3. Remove the adhesive tape from the optional paper feed unit.
CBK055
4. Lift the printer using the inset grips on both sides of the printer.
CBK027
When moving the printer, do not hold on the following parts as doing so could cause a malfunction:
• The handle onto the standard paper feed tray.
• The underside of the bypass tray.
Attaching the Paper Feed Unit
49
3
