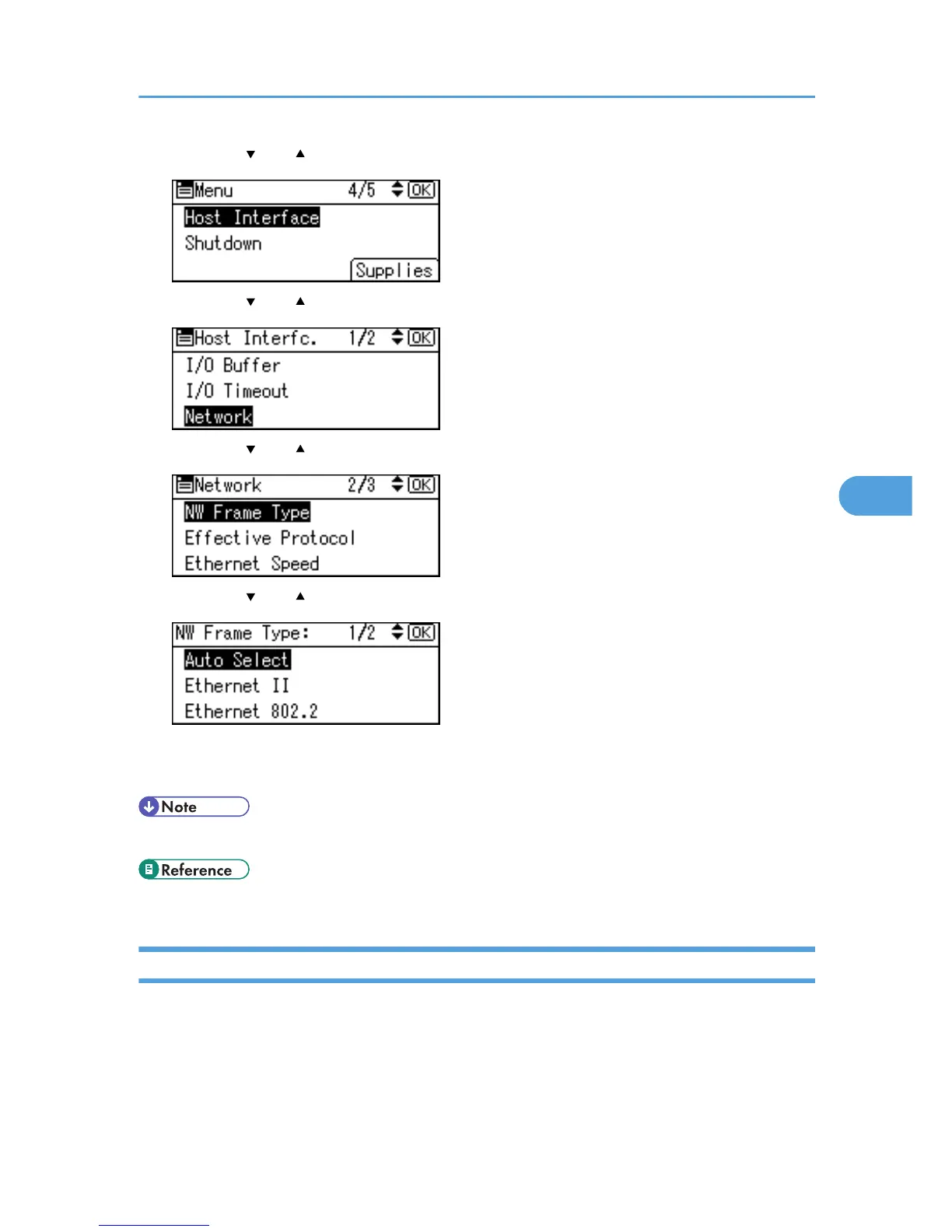

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.
3. Press the [ ] or [ ] key to select [Network], and then press the [OK] key.
4. Press the [ ] or [ ] key to select [NW Frame Type], and then press the [OK] key.
5. Press the [ ] or [ ] key to select the frame type to use, and then press the [OK] key.
6. Press the [Menu] key to return to the initial screen.
7. Print a configuration page to confirm the settings.
• For details about printing the configuration page, see "Test Printing".
• p.43 "Test Printing"
Setting the Ethernet Speed
You can set the speed that the printer will use for Ethernet communications. In most cases, this should be
left on the default setting, [Auto Select]. This setting allows two interfaces to automatically determine the
optimum speed when they are connected.
Ethernet Configuration
85
