1.Overview and Components
9

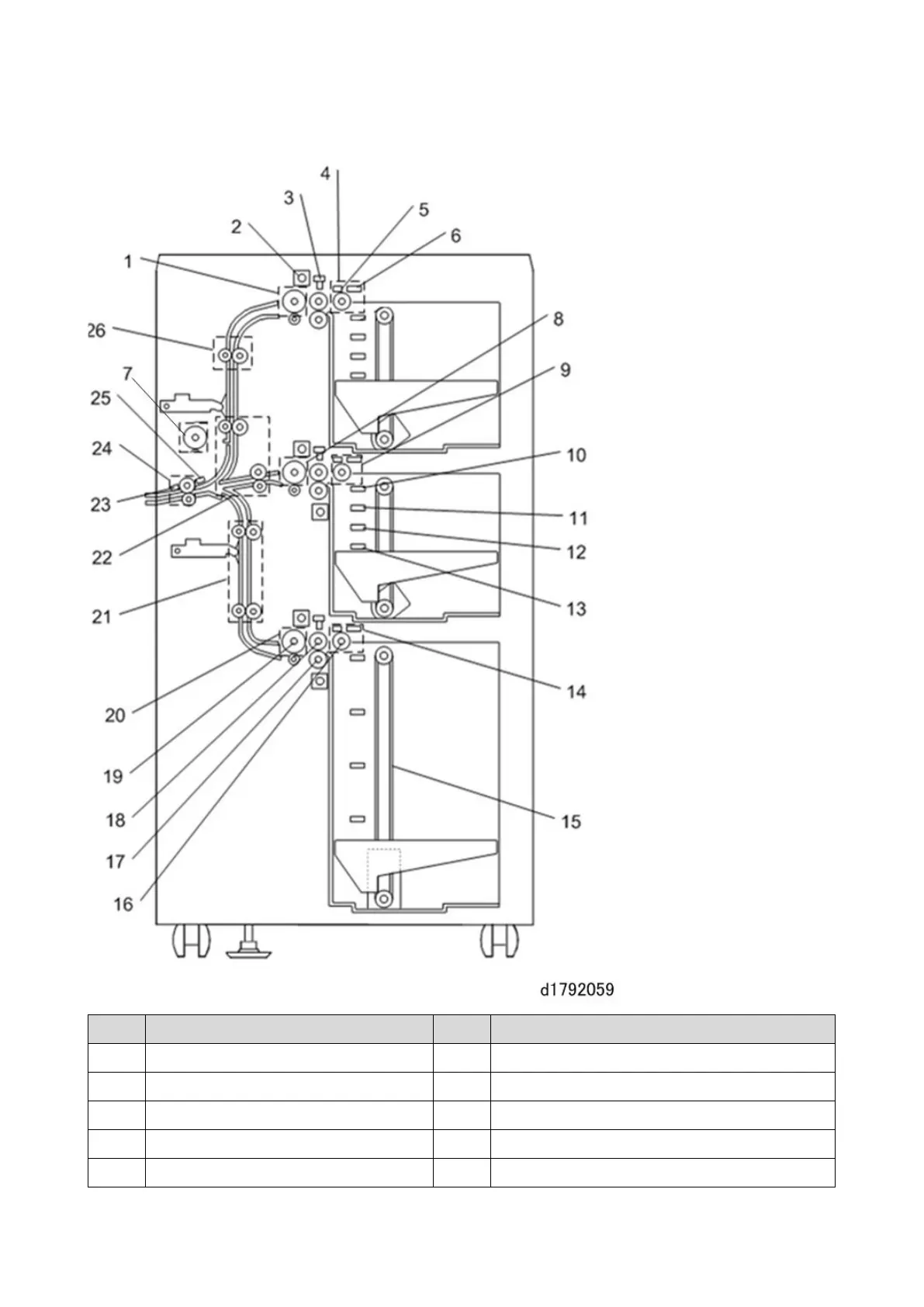

Structural Overview
No.
Name
No.
Name
1
Tray 4th Transport Motor
14
Tray 6th Paper Feed Motor
2
Pick-up Solenoid
15
Tray Driving Belt
3
Lift Sensor
16
Pickup Roller
4
Tray 4th Paper Feed Motor
17
Separation Roller
5
Paper Feed Sensor
18
Paper Feed Roller
