2.Replacement and Adjustment
42

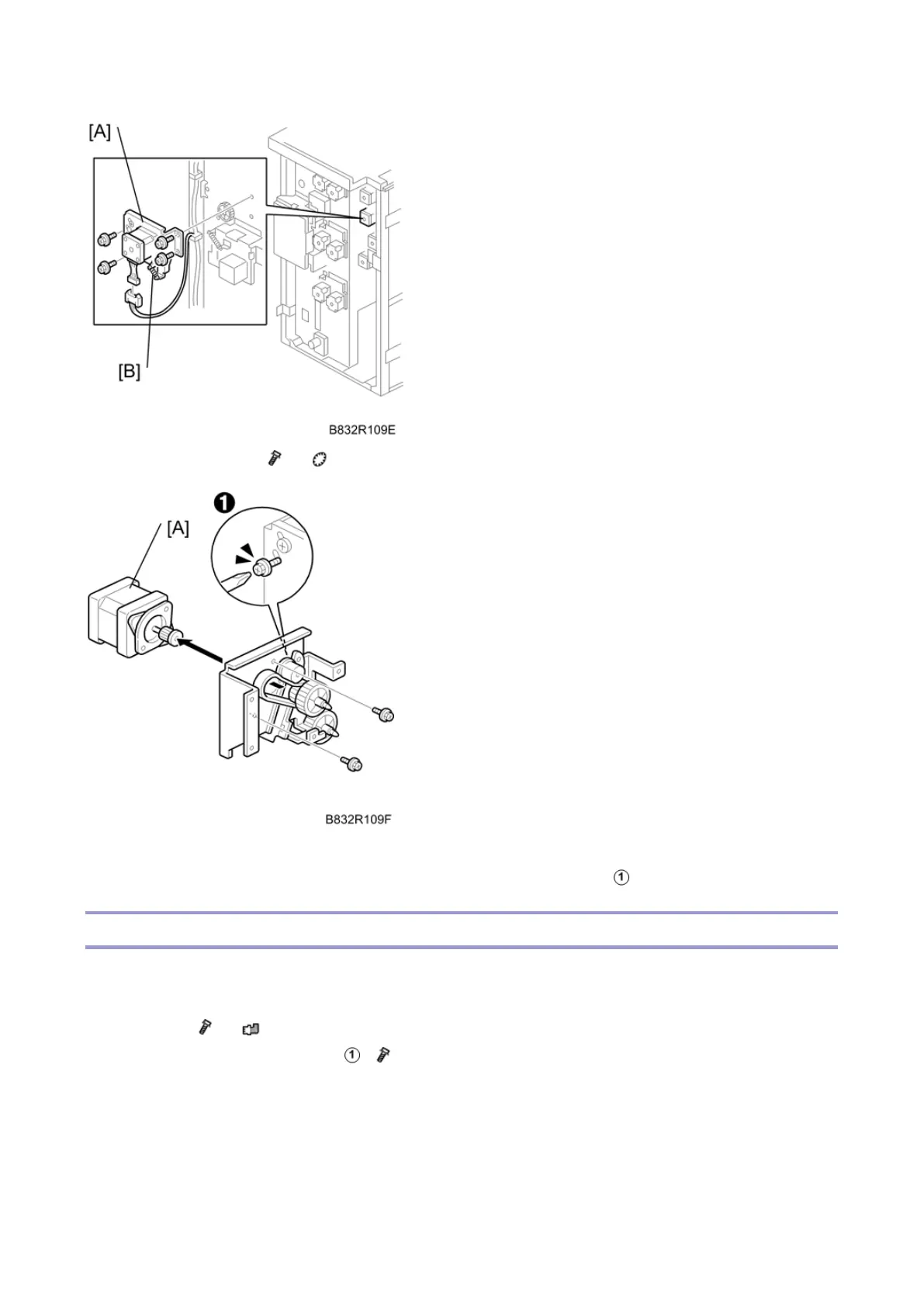

[A] 5th Transport motor ( x2, x1)
Reinstallation
 Be sure that the tension spring is connected, then tighten the screw .
6th Transport Motor
Remove:
 Rear cover (Front Door and Covers)
[A] Motor unit ( x6, x 1).
[B] Spring (x1). First, loosen screw ( x 1).
