Ricoh LCIT RT5130 User Manual

2.Replacement and Adjustment
40

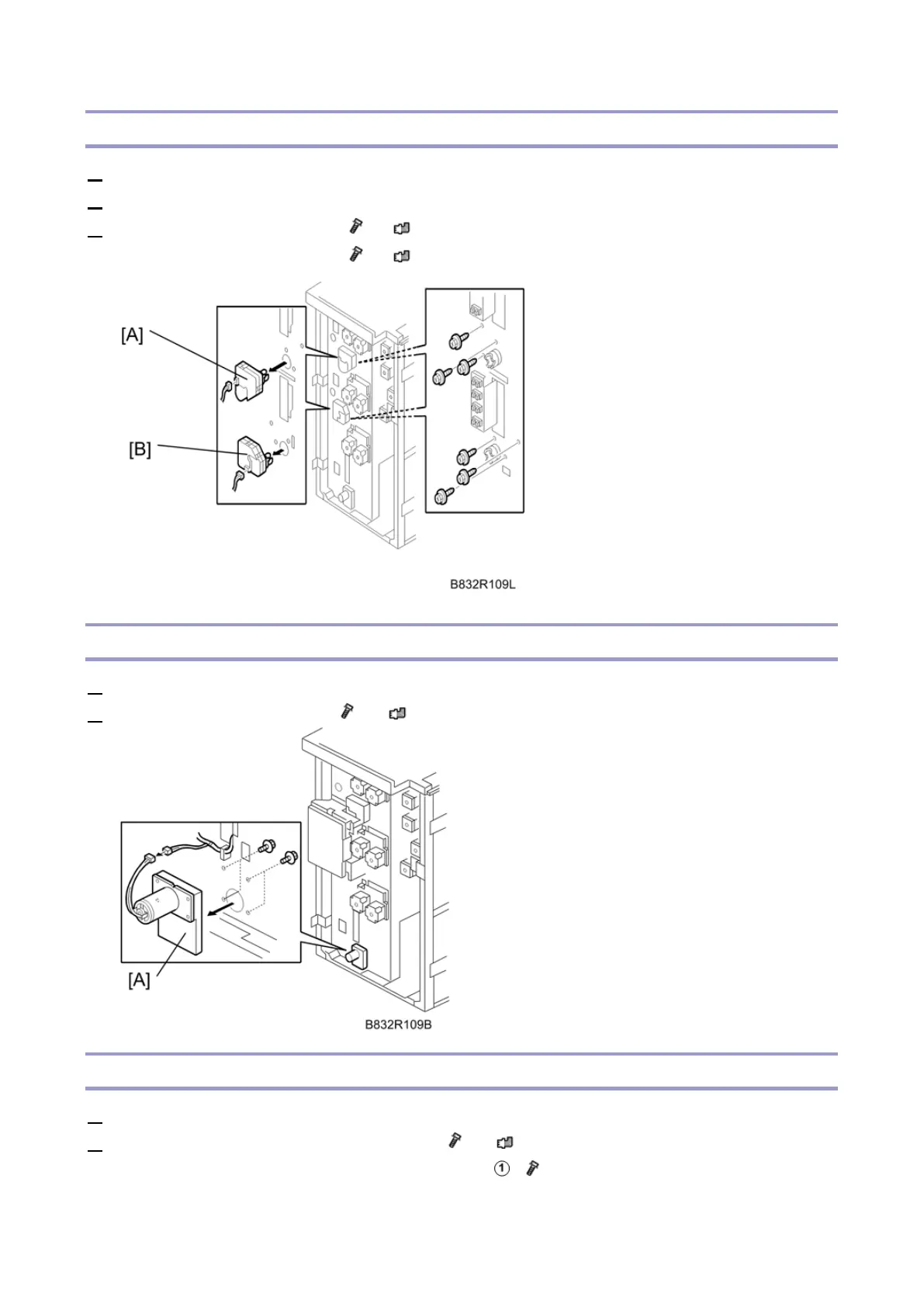

Tray 4th, 5th Lift Motors
1. Remove the rear cover. (Front Door and Covers)
2. Remove the main control board bracket (Main Control Board)
3. Remove Tray 4th lift motor [A] ( x3, x 1)
Remove Tray 5th lift motor [B] ( x3, x 1)
6th Lift Motor
1. Remove the rear and right covers. (Front Door and Covers)
2. Remove the 6th lift motor [A] ( x 4, x1)
Vertical Transport Motor
1. Remove the rear cover (Front Door and Covers)
2. Remove the vertical transport motor unit [A] ( x 5, x 1).
Remove the spring (x1) [B]. First, loosen the screw ( x 1).
