Replacing Consumables and Maintenance Kit
54
After pushing down the friction pad, check it is properly installed by pressing
it lightly. If it is properly installed, it will spring back up.
F Follow the same procedure to replace optional Paper Feed Unit friction
pads.
Replacing the Paper Feed Roller
Replace all feed rollers including the printer and the optional Paper Feed Unit(s).
The following procedure shows how to replace the printer's paper feed rollers.

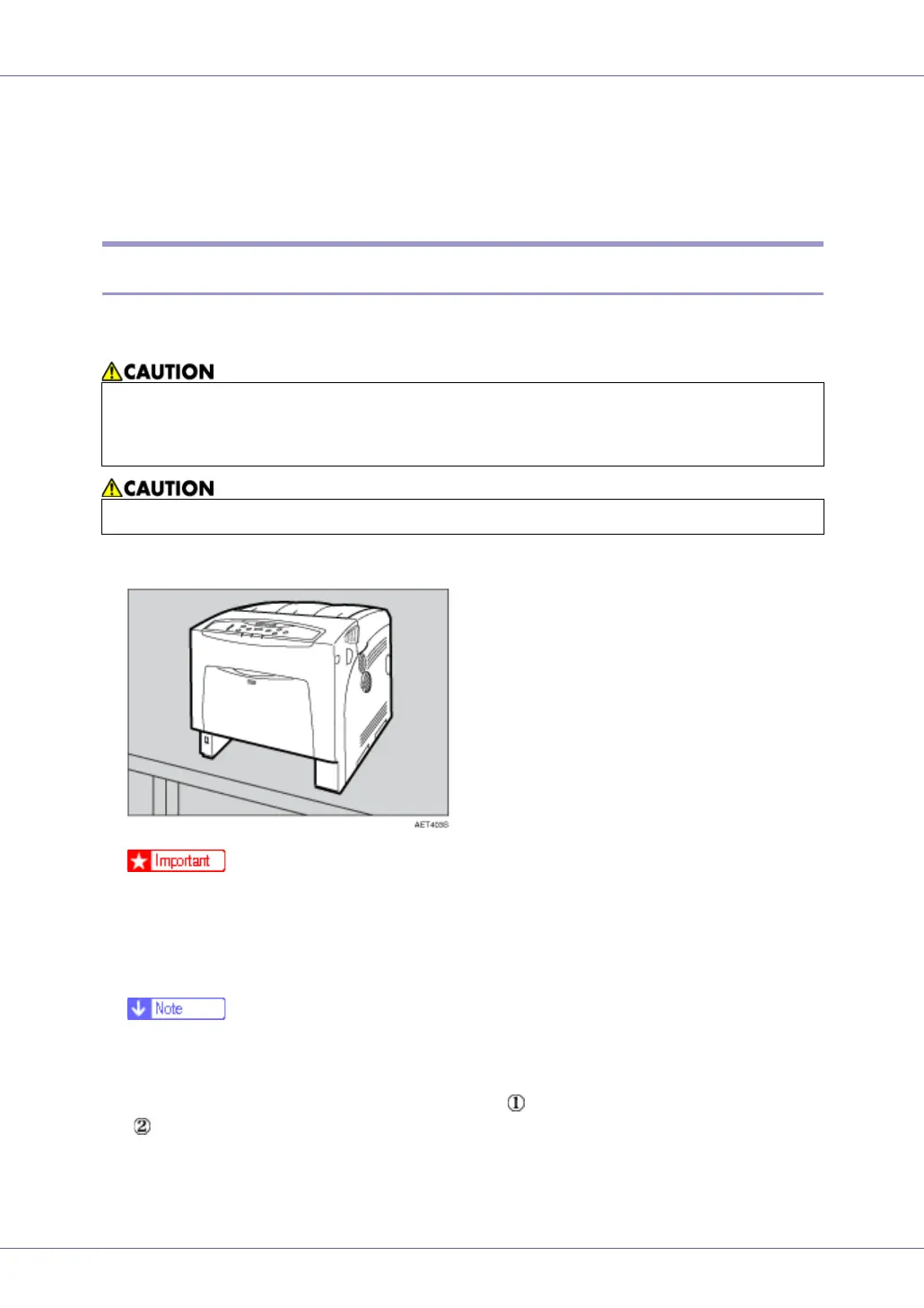

A Move the printer to the edge of a sturdy and stable table or desk.
❒ Make sure the printer is lifted by at least two people.
❒ Always move the printer horizontally. Turning the printer sideways or tilting
it backward or forward while moving will result in toner leakage.
❒ Do not put the printer on an unstable or sloped surface.
❒ If the printer is equipped with the optional Paper Feed Unit, do not move
the printer and the unit together, they are not securely attached.
B Slide the green lock lever to the right ( ), remove the paper feed roller
().
• The printer weights approximately 50 kg (110.3 lb.). When moving the print-
er, use the inset grips on both sides, and lift slowly. The printer will break or
cause injury if dropped.
• Lifting the paper feed unit carelessly or dropping it may cause injury.
To Next Page
