12
Apr. 2014 CUBE-STEX

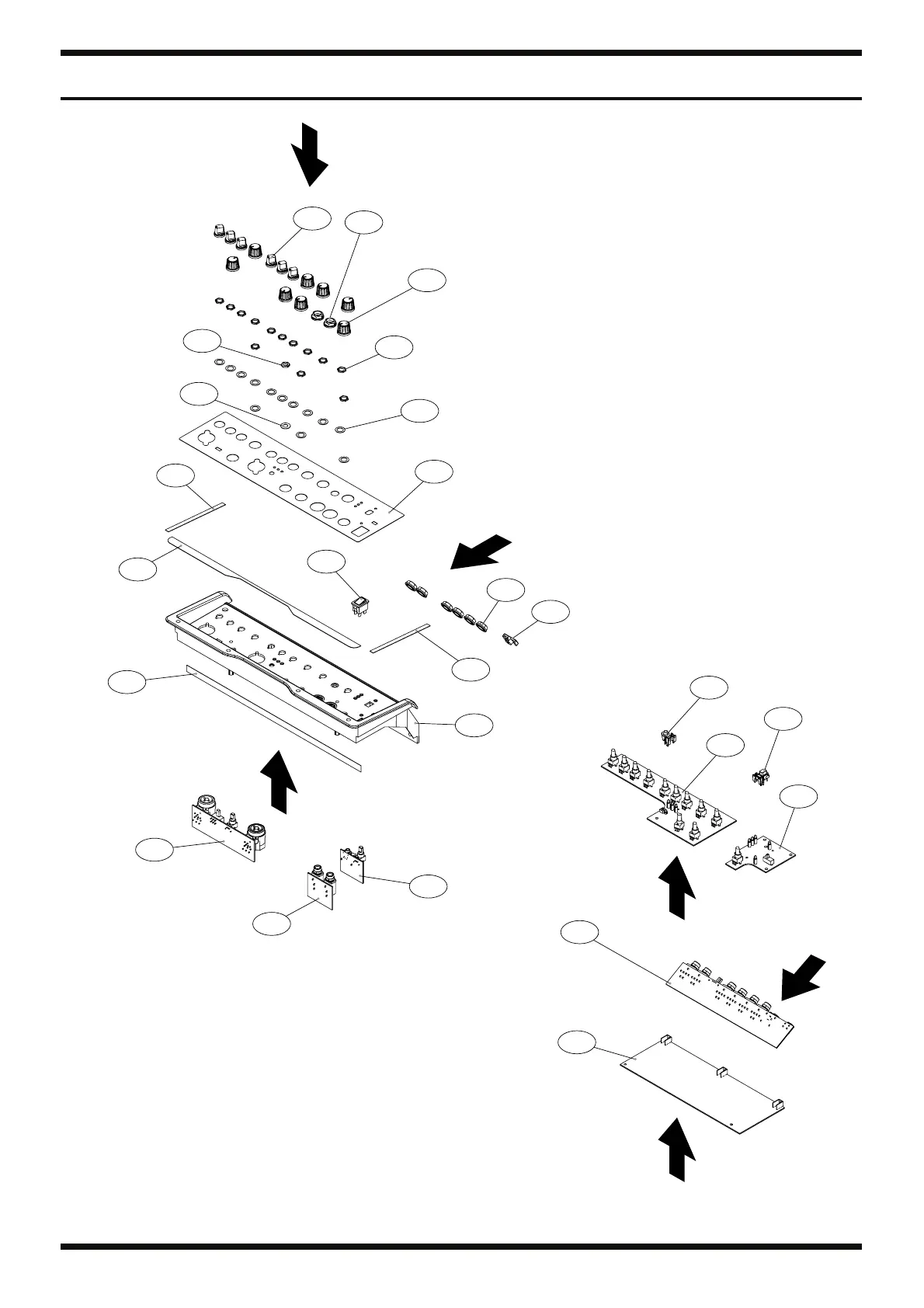

Exploded View (Fig. A)
fig.bunkaizu-A.eps
View A2
View A5
View A6
View A3
View A4
View A1
A1
A3
A5
A7
A8
A9
A10
A14
A20
A19
A22
A21
A23
A24
A17
A12
A13
A6
A10
A11
A15
A16
A18
A4
A2
Fig. A
