Apr. 2014 CUBE-STEX

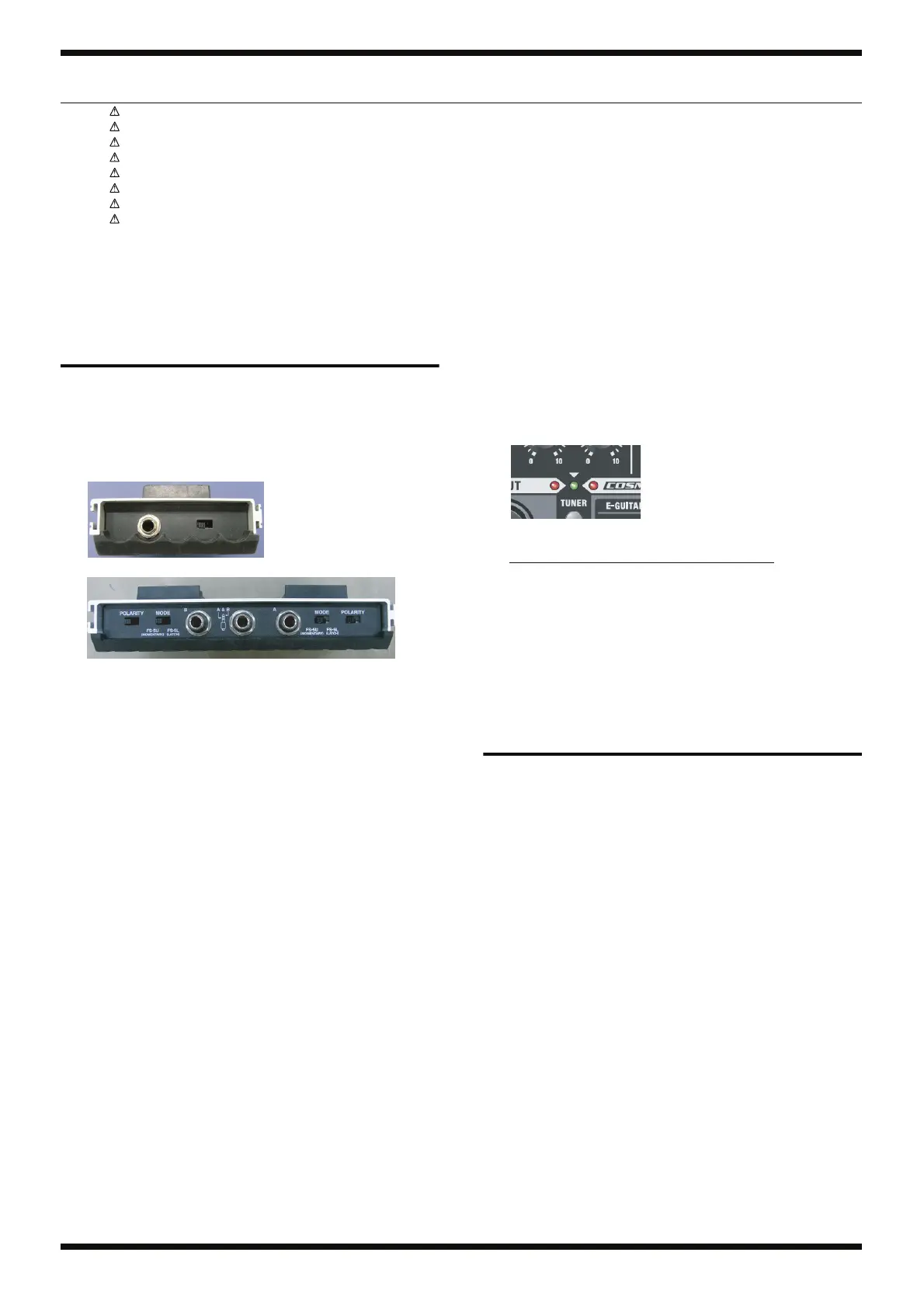

Verifying the Version
Items Required
• Foot switch (FS-5U x 2 or FS-6 x 1)
* Set the POLARITY switch and the MODE switch on the foot switch as shown
below.
fig.FS-5U.eps
fig.FS-6.eps
• Foot-switch connection cable (PCS-31 or PCS-33)
Procedure
1. Connect a foot switch to the FOOT SW MIC/GUITAR jack.
* If you’re using a PCS-31 cable, white is for tip and red is for ring. If you’re
using a PCS-33 cable, the pedal connected to B on the FS-6 is for tip and the
pedal connected to A is for ring. Also check the panel indication on the FS-6.
2. Make the following settings on the main unit.
• POWER: OFF
• INPUT SELECT: MIC
• OUTPUT POWER: ECO
• STEREO LINK: Left side (LINE OUT side)
• All controls: Minimum
(Turn the controls all the way counterclockwise.)
3. Hold down the ring section of the foot switch connected to the FOOT SW
MIC/GUITAR jack and switch on the power.
All LEDs light up.
* Continue to hold down the foot switch.
4. After all LEDs have lighted up and then flashed once, within 2 seconds,
depress first the ring section and then the tip section of the foot switch.
All LEDs flash rapidly several times, then the three LEDs at the center of
the panel indicate the software version, as described below.
* In this document, the three LEDs at the center of the panel are called LEFT,
CENTER, and RIGHT.
fig.tuner-led.eps
*: flashes, -: goes off
5. Switch off the power to the unit.
Test Mode
Items Required
• Foot switch (FS-5U x 2 or FS-6 x 1)
• Foot-switch connection cable (PCS-31 or PCS-33)
• 1/4-inch phone plug
• Miniature stereo phone plug
Entering the Test Mode
1. Go to Verifying the Version (p. 23) and execute steps 1 through 4.
2. Depress the tip section of the foot switch connected to the FOOT SW
MIC/GUITAR jack to enter the first test item, DSP/EEPROM Test (p. 24).
Quitting the Test Mode
Switch off the power.
Skipping Test Items
Test items cannot be skipped.
ACCESSORIES (Standard)
5100010587 AC ADAPTOR PSB-12U 1
5100009481 AC CORD 100V 1.0M 181-AP009-J 3-230202-024266 for 100V 1
5100012740 AC CORD 181-AP009-BL 117VBL 1.0M for 117VBL 1
5100009482 AC CORD 181-AP009-UC 117V 1.0M for 117VU, 117VU/CS 1
5100009486 AC CORD 181-AP009-CN 220VCN 1.0M for 220VCN 1
5100009484 AC CORD 181-AP009-B 230VE for 230VE 1
5100009483 AC CORD 181-AP009-G 181-AP009-G 230V EU 1.0M for 230VEU 1
5100009485 AC CORD 181-AP009-A 240VA 1.0M for 240VA 1
5100031008 4POLES MINI CABLE 452-12020-01-00 1
# 5100038579 OWNER’S MANUAL JAPANESE 1
# 5100038582 OWNER’S MANUAL MULTILANGUAGE 1
# 5100038578 OWNER’S MANUAL CHINESE 1
FS-5U
FS-6
Version LEFT CENTER RIGHT
1.00 * - -
1.01 - * -
1.02 - - *
1.03 * * -
1.04 * - *
1.05 - * *
