11

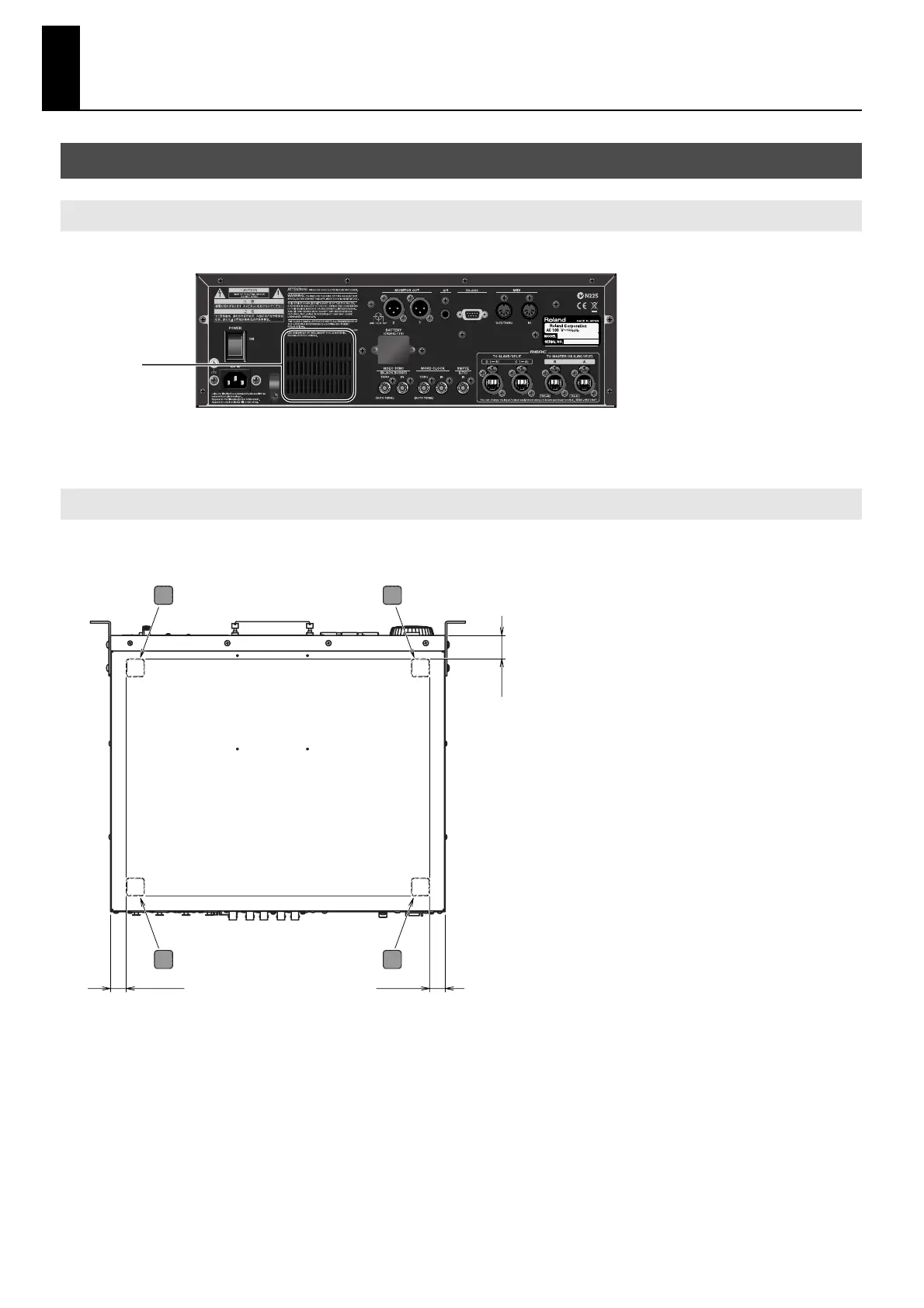

Important Notes on Installation and Connections
The R-1000 performs forced cooling by means of a cooling fan, and is provided with an exhaust port at the location shown below.
fig.exhaust.eps
Never obstruct the exhaust port. Doing so may cause the interior temperature of the unit to rise, resulting in malfunction caused
by heat. Install the unit so that at least 2 centimeters of space must be left in front of the exhaust port.
* Use a vacuum cleaner to clear away any buildup of dust or the like at the exhaust port.
Attach the included rubber feet if necessary at the locations shown in the figure below.
* When mounting the unit to a rack, be sure to detach the rubber feet.
fig.rubber-foot-location.eps
Other Notes on Installation
* When turning the unit upside-down, get a bunch of newspapers or magazines, and place them under the four corners or at both ends to
prevent damage to the buttons and controls. Also, you should try to orient the unit so no buttons or controls get damaged.
* When turning the unit upside-down, handle with care to avoid dropping it, or allowing it to fall or tip over.
Important Notes on Installation
About the Exhaust Port of the Cooling Fan
About Rubber Feet
Exhaust
Unit : mm
30
15 - 2015 - 20
Front Panel
Rear Panel
To Next Page
