Roland RD-800 User Manual

Roland RD-800: Digital Piano
Main Specications
Keyboard Section
88 keys (PHA-4 Concert Keyboard: with Escape-
ment and Ebony/Ivory Feel)
Sound Generator Section
Maximum Polyphony 128 voices
Parts 16 parts (4 parts are used in the live set)
Sound Generator
SuperNATURAL Piano
SuperNATURAL (E.Piano, Clav)
Virtual Tone Wheel Organ
PCM Sound Generator
Tones 1,113 tones
Live Sets 200
Piano Designer
(adjustable in indi-
vidual notes, Only for
SuperNATURAL Piano)
Tone Color: 0–127
Nuance: TYPE1–TYPE3
Damper Noise: 0–127
Duplex Scale: 0–127
String Resonance: 0–127
Key O Resonance: 0–127
Hammer Noise: -2–+2
Character: -5–+5
Sound Lift: 0–127
Individual Note
Voicing (adjustable in
individual notes)
Tuning: -50.0–+50.0 cent
Level: -50–0
Character: -5–+5
Eects
Modulation FX: 4 systems, 56 types
Tremolo/Amp Simulator: 4 systems, 5 types
Reverb: 6 types
Delay: 5 types
Sympathetic Resonance
(Only for SuperNATURAL Piano)
3-band Compressor
5-band Digital Equalizer
Audio File Player
File Format Audio Files (WAV format, 44.1 kHz, 16-bit linear)
Recorder Section
File Format Audio Files (WAV format, 44.1 kHz, 16-bit linear)
Other
Rhythm Pattern 200 patterns
Controllers
LAYER LEVEL slider x 4
EQUALIZER/DELAY/ASSIGNABLE knobs x 4
(with illumination)
REVERB knob (with illumination)
TONE COLOR knob (with illumination)
MODULATION FX DEPTH knob (with illumination)
MODULATION FX RATE knob (with illumination)
TREMOLO DEPTH knob (with illumination)
TREMOLO RATE knob (with illumination)
AMP SIMULATOR DRIVE knob (with illumination)
Pitch Bend/Modulation lever
S1/S2 Buttons (Assignable)
Display Theme 3 themes
Display Graphic color LCD 320 x 240 dots
Connectors
OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
OUTPUT (L, R) jacks: XLR type
INPUT jack: Stereo miniature phone type
PEDAL (DAMPER, FC1, FC2, EXT) jacks: TRS phone
type
MIDI (IN, OUT1, THRU/OUT2) connectors
USB (COMPUTER) port: USB type B
USB (MEMORY/WLAN ADAPTOR) port: USB type A
PHONES jack: Stereo 1/4 inch phone type
AC In jack
Power Consumption 12 W
Dimensions
1,400 (W) x 366 (D) x 138 (H) mm
55-1/8 x 14-7/16 x 5-7/16 inches
Weight
21.7 kg
47 lbs 14 oz
* Actual weight can vary slightly from that
indicated due to the fact that wooden parts are
involved.
Accessories
Owner’s manual
Power cord
Damper pedal (capable of continuous detection)
Cord clamp
Options
Keyboard stand: KS-G8, KS-G8B
Piano pedal: RPU-3
Damper pedal: DP-10
Pedal switch: DP-2
Expression pedal: EV-5, EV-7
USB Flash Memory *
Wireless USB Adapter *
* Use USB Flash Memory and Wireless USB
Adapter sold by Roland. We cannot guarantee
operation if other products are used.
* In the interest of product improvement, the specications and/or
appearance of this unit are subject to change without prior notice.

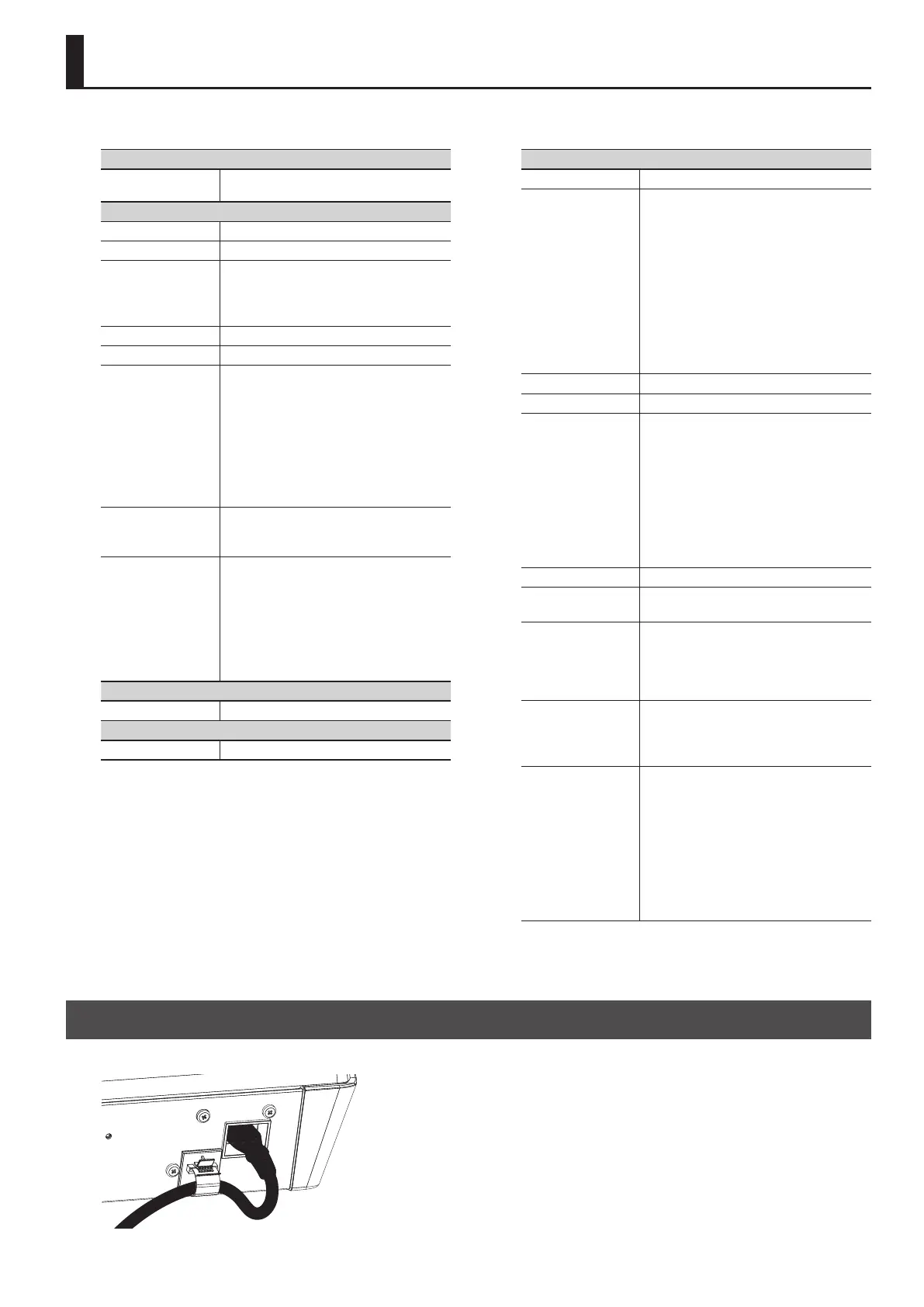

Anchoring the Power Cord (Cord Clamp)
As necessary, the supplied cord clamp can be used to anchor the power cord. Ax the cord clamp at the location shown in the gure.
59

Roland RD-800 Specifications

General

Keyboard	88 keys (PHA-4 Concert Keyboard: with Escapement and Ebony/Ivory Feel)
Polyphony	128 voices
Display	Graphic LCD 320 x 240 dots
Power Supply	AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
External Storage	USB Flash Memory
Sound Generator	SuperNATURAL Piano
Tones	Over 1100 tones
Effects	Reverb
Weight	21.7 kg / 47 lbs 14 oz
Dimensions	1, 400 (W) x 367 (D) x 140 (H) mm
SMF File Player	Standard MIDI Files (Format 0/1) support
Audio File Player	WAV
Recorder	SMF (Format 0)
Connectors	INPUT jacks (L/MONO, R)
