Section 02 717 ENGINE
Subsection 04 (BOTTOM END)
A32CB5A
TYPICAL

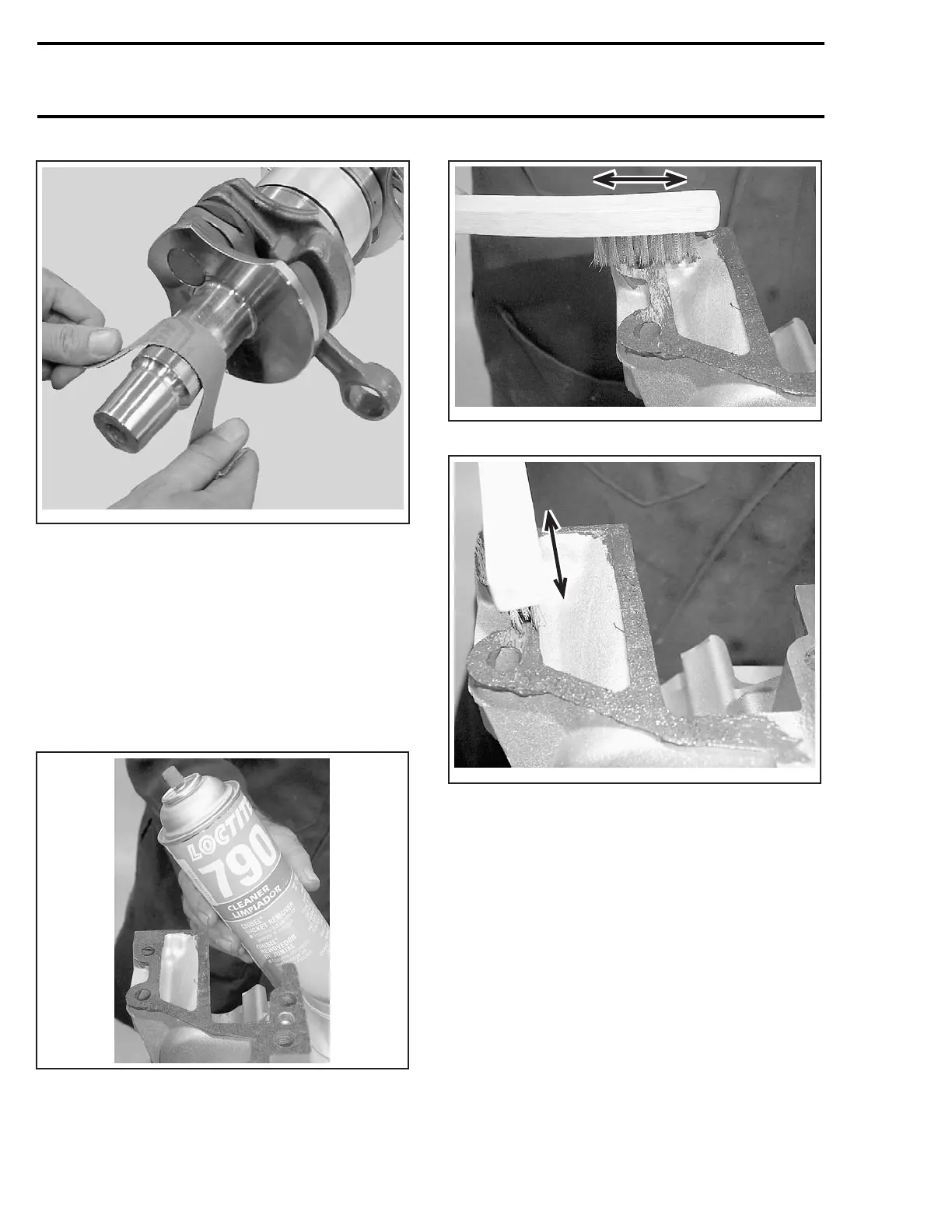

Crankcase
Crankcase mating surfaces are best cleaned us-
ing a combination of the chisel gasket remover
(P/N 413 708 500) and a brass brush. Brush a first
pass in one direction then make the final brushing
perpendicularly (90°) to the first pass cross (hatch).
CAUTION: Never use a sharp object to scrape
away old sealant as score marks incurred are
detrimental to crankcase sealing.
F00D2BA
F00D2CA
FIRST PASS
F00D2DA
SECOND PASS
Finish the cleaning with acetone.
CAUTION: Be careful not to spray cleaner on
the painted surface of the engine. Do not wipe
with rags. Use a new clean hand towel only.
INSPECTION
Refer to table below to find bottom end engine di-
mension specifications. For dimension measure-
ment procedures, refer to ENGINE MEASURE-
MENT.
42 smr2005-078
