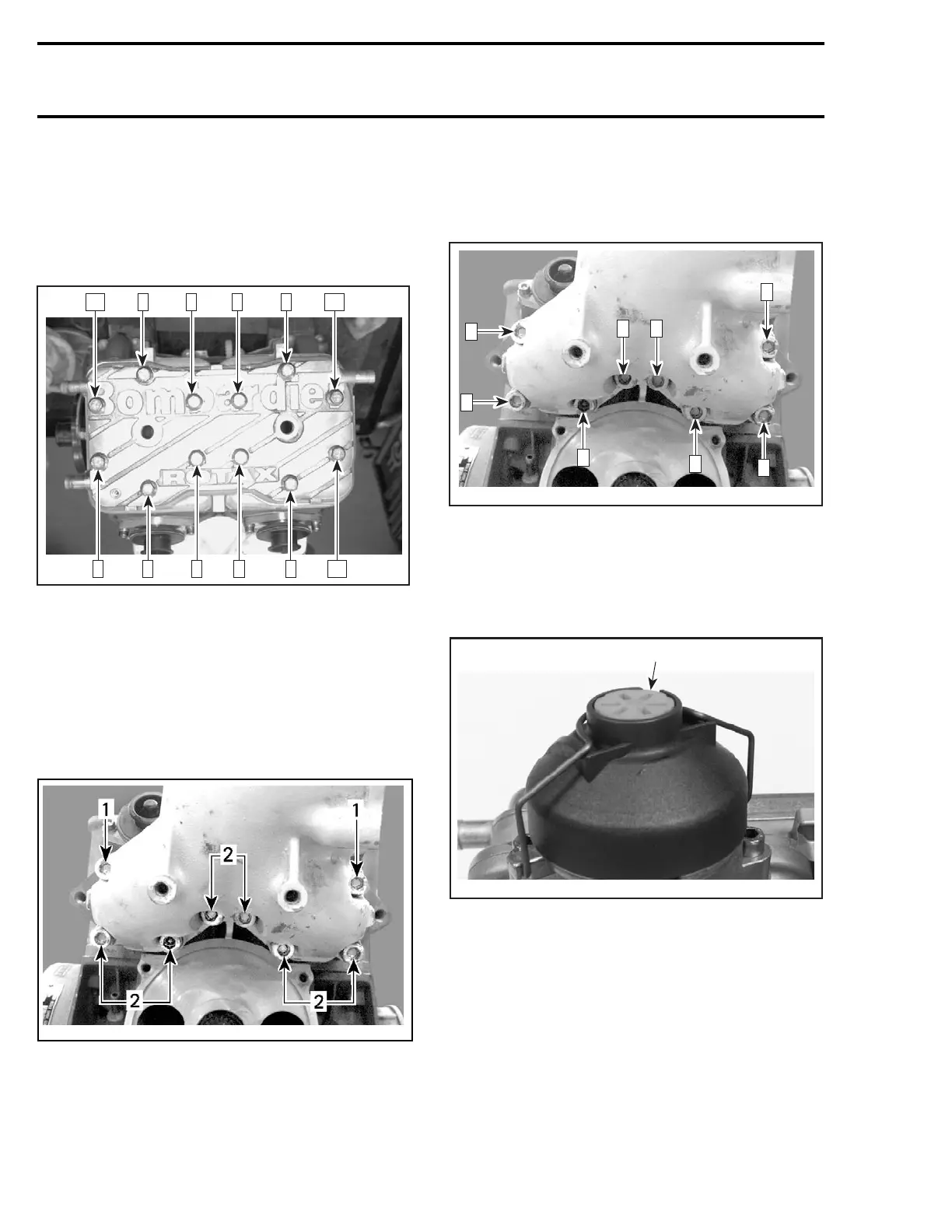

Section 03 787 RFI ENGINE
Subsection 03 (TOP END)
Apply also Molykote 111 (P/N 413 707 000) on
threads of screws no. 14.
Torque cylinder head screws no. 14 to 12 N•m
(106 lbf•in) as per following illustrated sequence.
Repeat the procedure, retightening all screws to
24 N•m(17lbf•ft).
F01D46A
10 8 2 4 6 12
113 1 59 7
TORQUING SEQUENCE
Exhaust Manifold
Make sure gaskets are properly positioned prior to
finalizing manifold installation.
Apply Loctite 518 (P/N 293 800 038) on 2 screws.
On the other screws, apply Molykote 111 (P/N 413
707 000) on threads. Install screws. Refer to the
following illustration for proper position of screws.
smr2005-048-001_a
1. Screw with Loctite 518
2. Screw with Molykote 111
Torque exhaust manifold screws to 24 N•m
(17 lbf•ft) as per following illustrated sequence.
Repeat the procedure, retightening screws to
40 N•m(30lbf•ft).
F01D82A
3
1
7 6
4
8
2
5
ADJUSTMENT
RAVE Valve
Turn the red plastic knob no. 17 until it is flush to
the valve cover.
F00D0GA
1
1. Knob flush with the cover
86 smr2005-082
