Section 03 787 RFI ENGINE
Subsection 02 (MAGNETO SYSTEM)
DISASSEMBLY
NOTE: The magneto system can be disassembled
without removing the engine from the watercraft.

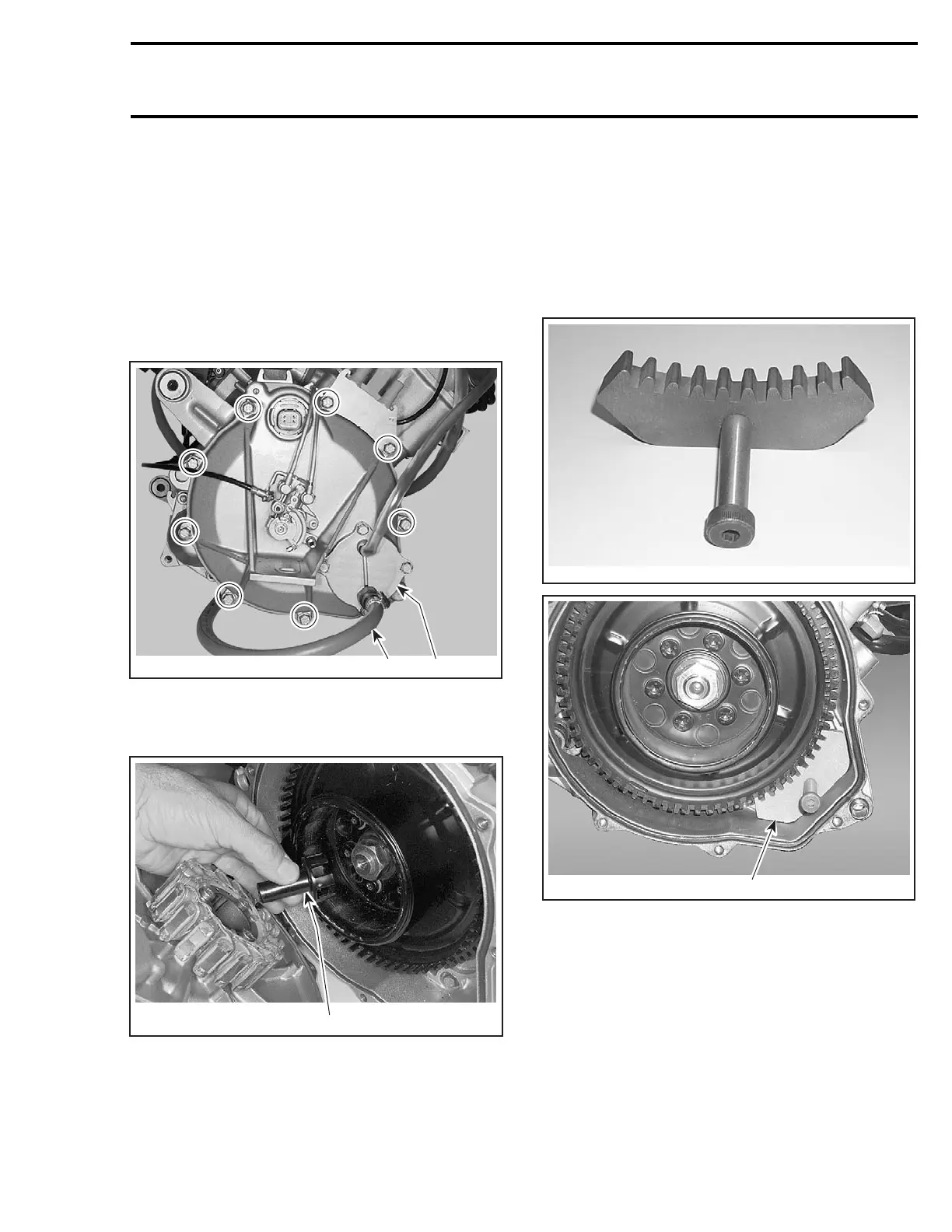

Magneto Housing Cover
Disconnect water hoses from heat exchanger cov-
er.
Loosen magneto cover screws no. 1. Remove
magneto cover no. 2.
F07D0JA
1
2
1. Disconnect water inlet hose
2. Heat exchanger cover
Remove oil pump shaft from magneto rotor nut.
1
F07D0IA
1. Oil pump shaft
Rotor and Ring Gear
NOTE: Crankshaft can also be locked by using the
PTO flywheel extractor tool. For procedure, refer
to BOTTOM END.
Remove crankshaft position sensor no. 3.
Lock ring gear no. 4 using the ring gear locking
tool (P/N 529 035 846).
F15B01A
1
F15D0AA
1. Ring gear locking tool
Using a suitable socket, unscrew retaining nut
no. 5 of magneto rotor COUNTERCLOCKWISE
when facing it.
Remove the ring gear locking tool.
Insert the crankshaft protector (P/N 420 876 557)
to outer end of crankshaft and fully thread the
magneto puller (P/N 420 976 235) in magneto ro-
tor no. 6.
smr2005-081 67
