Samsung ML-1630W User Manual

3.6 < Getting Started>
• IP Address: Enter a new IP address for your printer the same as the
computer’s IP address except for the last number.
For example, if your computer’s IP address is 192.168.1.150, enter
192.168.1.X. (X is number between 1 and 254 other than the
computer’s address.)
• Subnet Mask: Enter this exactly the same as the computer’s Subnet
Mask.
• Default Gateway: Enter this exactly the same as the computer’s
Default Gateway.
6 Click Apply, and then click OK. The machine will automatically print
the Configuration report. Confirm that all the settings are correct.
7 Click Exit to close the SetIP program.
8 If necessary, restart the computer’s firewall.
Network parameter setting
You can also set up the various network settings through the network
administration programs.
• SyncThru™ Web Admin Service: Web-based printer management
solution for network administrators. SyncThru™ Web Admin Service
provides you with an efficient way of managing network devices and
lets you remotely monitor and troubleshoot network machines from
any site with corporate internet access. Download this program from
http://solution.samsungprinter.com.
• SyncThru™ Web Service: Web server embedded on your network
print server, which allows you to: (A) Configure the network
parameters necessary for the machine to connect to various network
environments. (B) Customize machine settings.
Restoring factory default settings
You can restore factory default settings to the machine by using
SyncThru™ Web Service. You may need to reset the machine to the
factory default settings when machine that you are using is connected to
new network environment.
Restoring factory default settings using SyncThru™ Web
Service

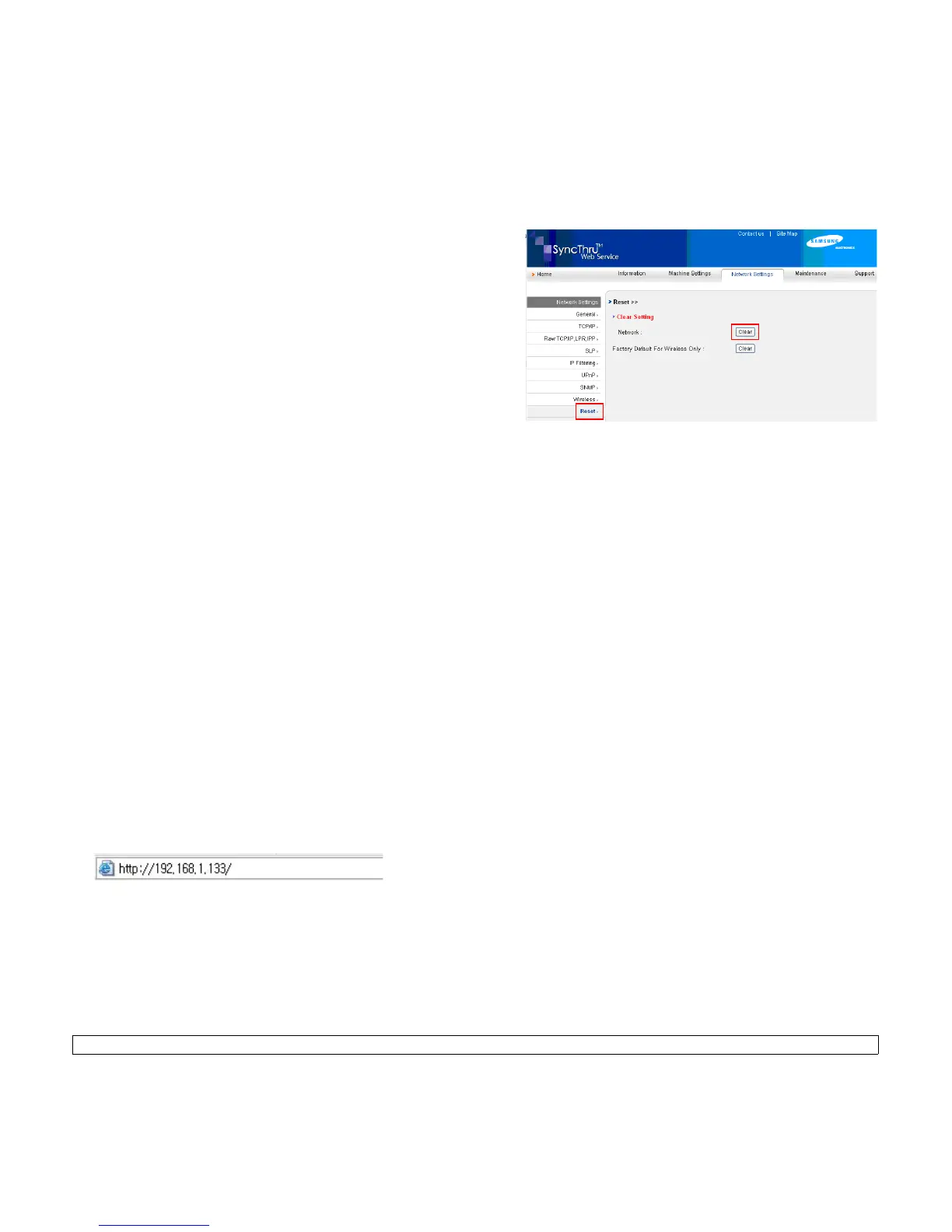

1 Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example,
2 When the SyncThru™ Web Service window opens, click Network
Settings.
3 Click Reset. Then, click Clear for network.
4 Turn off and restart machine to apply settings.

Samsung ML-1630W Specifications

General

Color	No
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	15 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Processor model	Samsung
Built-in processor	Yes
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	45 dB
Maximum duty cycle	5000 pages per month
Number of print cartridges	1
Maximum print size	216 x 356 mm
Media types supported	Thin, OHP, Thick
Paper tray media types	Bond paper, Labels, Plain paper, Recycled paper
Paper tray media weight	75 - 104 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	105 - 163 g/m²
Capacity cartridge	2000 sheets
Networking features	Fast Ethernet, WLAN
Wireless technology	802.11 b/g
Standard media sizes	105 x 148.5mm (4.1\
Compatible operating systems	Windows 2000/XP/2003 Server/Vista, Linux OS, Mac 10.3-10.4
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Total input capacity	100 sheets
Total output capacity	30 sheets
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8 W
Power consumption (printing)	350 W
Display	-
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	190 x 558 x 395 mm
