Samsung The Frame User Manual

02 Connecting the TV to the One Connect
5
4
10 cm
TV
One Connect
Bending Cover

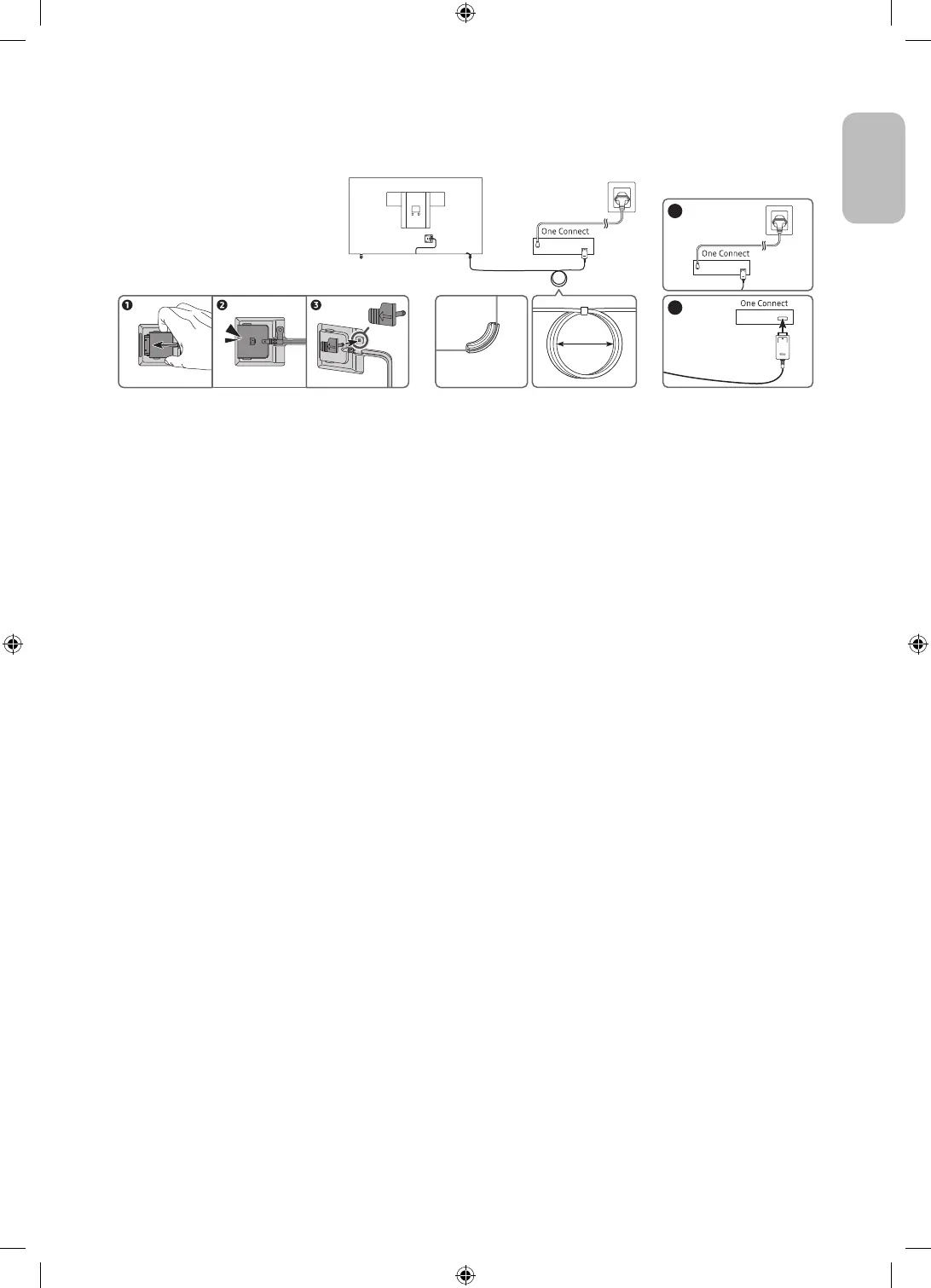

To connect the One Invisible Connection to the One Connect and your TV, follow these steps:
1. After the TV is completely set up and placed in its final position, connect the One Invisible Connection to
the One Connect and the TV as shown in Steps 1 to 4 above.
WARNING: Make sure that both connectors are fully and firmly connected. If either connecter is not
connected properly, there is a danger of severe electric shock.
2. Connect the One Connect AC power cord to the One Connect, and then connect the cord to a wall outlet as
shown in Step 5 above.
WARNING: Follow the directions exactly. Be sure to connect the power cord to the wall outlet as the
last step. Always disconnect the power cord from the wall outlet before disconnecting the One Invisible
Connection from the back of the TV or from the One Connect.
– See the illustrated Quick Setup Guide for more information.
3. Connect your peripherals (aerial, cable box, Blu-ray player, etc.) to the One Connect. See the Accessory Kit
for details.
English - 7
English

Samsung The Frame Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	43 \
Display brightness	- cd/m²
Display technology	LED
Display diagonal (metric)	108 cm
Motion interpolation technology	PQI (Picture Quality Index) 1800
3D	No
Languages support	BUL, CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LAT, LIT, NOR, POL, POR, RUM, SER, SLK, SLV, SWE
Annual energy consumption	132 kWh
Audio decoders	DTS, Dolby Digital Plus
RMS rated power	20 W
Number of speakers	-
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S2, DVB-T2 HD
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Anynet+
Common interface Plus (CI+) version	1.4
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	95 W
Product color	Black
Mercury content	0 mg
Heavy metals free	Hg (mercury)
Panel mounting interface	200 x 200 mm
Package depth	235 mm
Package width	1104 mm
Package height	694 mm
Package weight	21900 g
Video formats supported	H.264 BP, H.265, HEVC, M-JPEG, MPEG1, MPEG2, MPEG4-ASP, MPEG4-SP, MVC
Picture processing technology	Samsung Ultra Clean View

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	996.6 mm
Height (with stand)	599.8 mm
Weight (with stand)	11700 g
Depth (without stand)	42.5 mm
Width (without stand)	966.6 mm
Height (without stand)	555.3 mm
Weight (without stand)	11200 g
