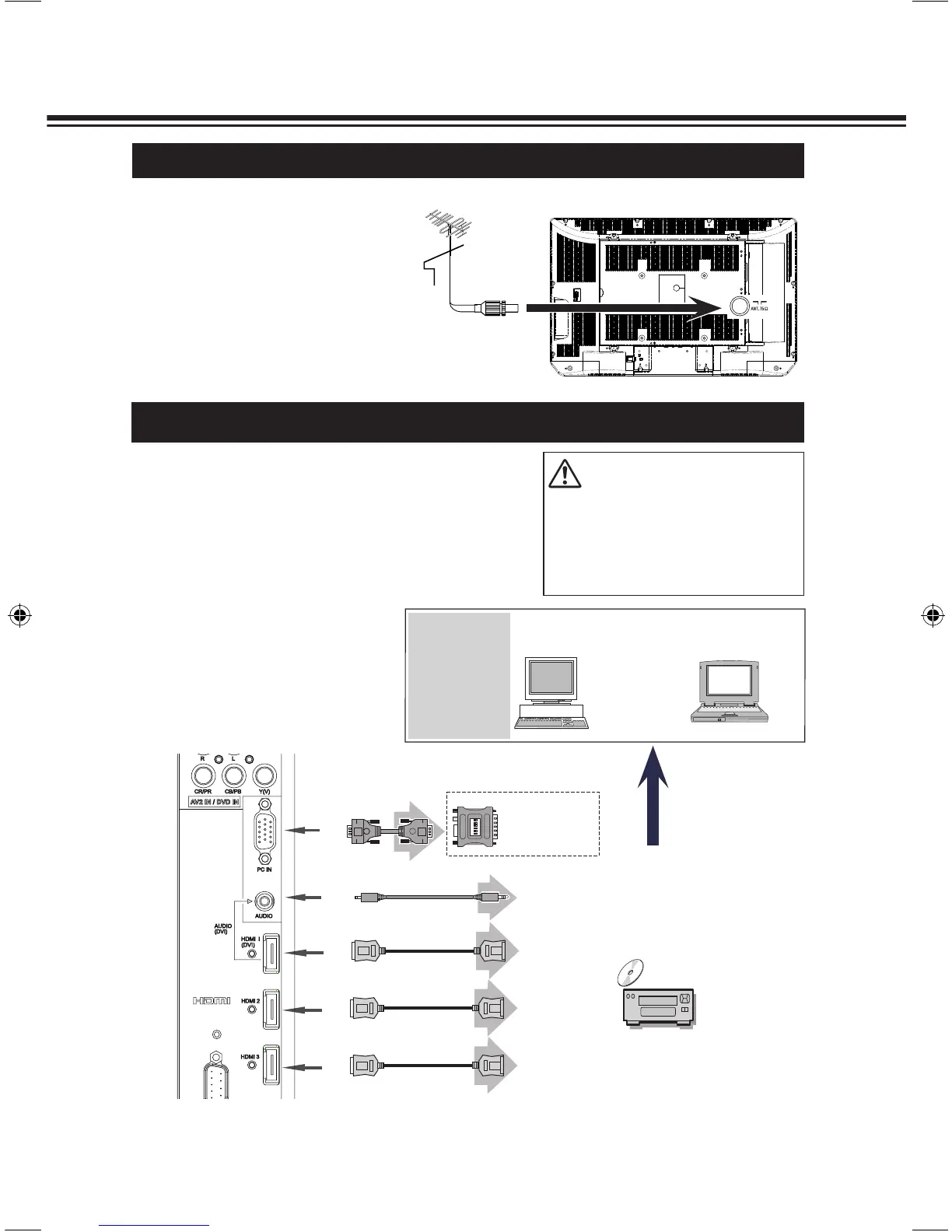

CONNECTING LCD TV
AV2 IN / DVD IN
L R
Y(V) CB/PB CR/PR
V L R
AUDIO
PC IN
HDMI 1 (DVI)
HDMI 2
HDMI 3
AV1 IN
V L R
S-VIDEO
MONITOR
OUT
IBM-
compatible
computers
or Macintosh
computers
(VGA / SVGA /
XGA )
Desktop
type
Cables used for connection (These cables are not supplied with
this LCD TV.)
·PC/VGA Cable (D-SUB 15pin)
·HDMI Cable: HDMI Input
·MAC Adapter (in the case of connecting Macintosh
computer)
·
Audio Cable [Mini Plug (L/R)]
NOTE:
When connecting the cables, AC
Power Cords of both LCD TV
and external equipment should
be disconnected from AC outlet.
Turn LCD TV and periphe ral
e q u i p m e n t o n b e f o r e y o u r
computer is switched on.
PC Input
Audio Output
(stereo)
MAC Adapter
Monitor
Output
HDMI Output
Audio Input (stereo)
HDMI Input
CONNECTING A COMPUTER
Laptop
type
Note:
You can connect the DVI source to HDMI input terminal by using the DVI to HDMI converter.
Digital AV Equipment
AV 2/
1AA2DES0980-- N5DV
PC INPUT
>PS<
Cable used for connection (This cable
is not supplied with this LCD TV.)
·
Aerial Cable
NOTE:
For all aerial circuit problems, please
consult your local dealer.
Aerial Cable
CONNECTING
OUTDOOR AERIAL
Outdoor Aerial
AV2 IN / DVD IN
L R
Y(V) CB/PB CR/PR
V L R
AUDIO
PC IN
HDMI 1 (DVI)
HDMI 2
HDMI 3
AV1 IN
V L R
S-VIDEO
MONITOR
OUT
LCD-K40TD_(SEI).indd 10 2/18/2010 1:06:03 PM
