External Audio
Equipment
Video Source (example)
DVD Player
Audio cable
(RCA X 2)
R L
C
R/PR,CB/PB, Y
Component Video Source
(example)
DVD video equipment.
(such as DVD player or
high-definition TV source)
CONNECTING LCD TV
DVD
(RCA X 3)

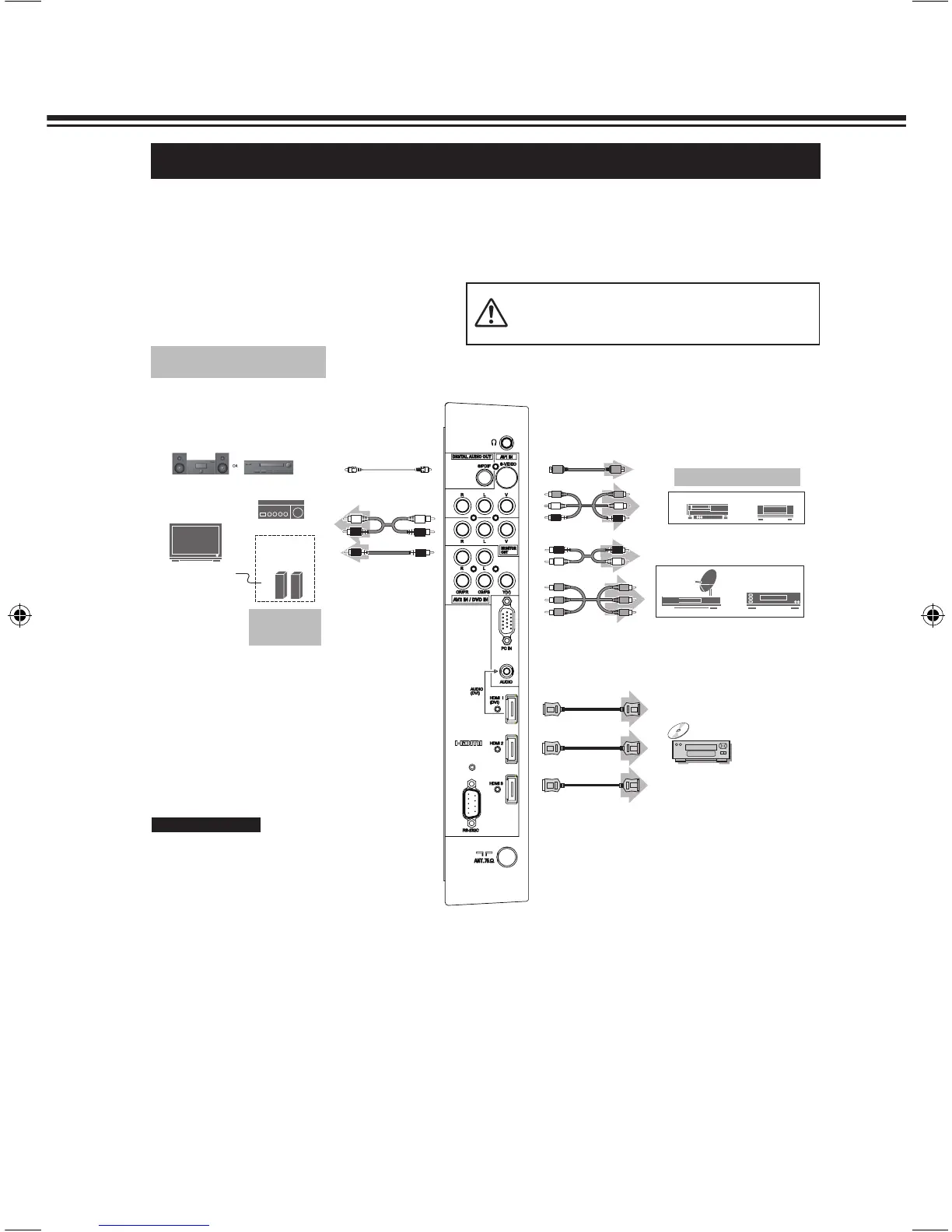

CONNECTING VIDEO EQUIPMENT
Cables used for connection (These cables are not supplied with this LCD TV.)
· Video Cable(RCA X1), S-Video Cable, Audio Cable (RCA X2) : Video 1 or Video 2
· Video Cable(RCA X3), Audio Cable (RCA X2) : DVD (Component Video)
· Video Cable(RCA X1), Audio Cable (RCA X2) : Monitor Outputs
· HDMI Cable X 3 : HDMI Input
· Coaxial Cable X 1: S/P DIF Output
NOTE : W hen c onn ec tin g th e c ab le, AC P ow er
Cords of both LCD TV and external equipment
should be disconnected from AC outlet.
External
monitor
Composite Video
and Audio Output
Audio
Speaker
(stereo)
Audio Amplifier
Video cable
(RCA x1)
Audio cable
(RCA x 2)
S-Video
S-Video
Cable
Video and Audio
cable (RCA x 3)
R , L , V
Video Cassette
Recorder
Video Disc
Player
S-Video
output
HDMI cable
HDMI cable
HDMI cable
Coaxial cable
Note :
The MONITOR OUT terminal can output
audio from all input source and video
from ATV, DTV, AV1; and the video
from AV2, PC and HDMI can not be
outputted.
MONITOR OUT
Connect Hi-Fi or Audio processor to
the S/PDIF OUT(Coaxial) terminal on
the TV rear.
HiFi System
Audio Processor
Digital AV Equipment
