Sanyo PLC-XU75 Service Manual

-15-
(M2.5x8)x4

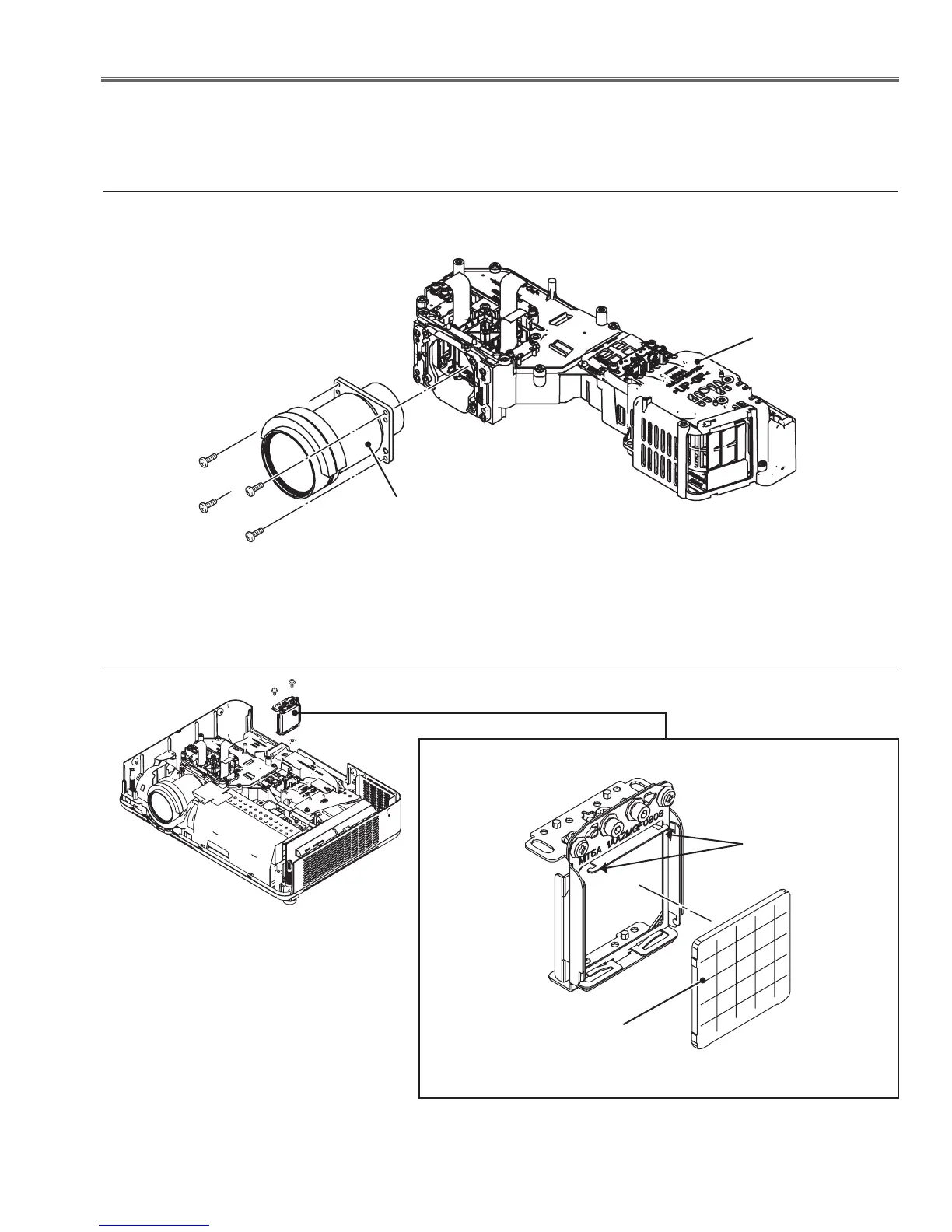

Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench.
z Projection lens removal
Optical Unit
Projection Lens
Fig.1
z Integrator lens-in disassembly
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
Fig.2
* Rugged surface
(Behind)
Note: When removing the projection lens, remove the optical unit from the cabinet bottom first.
