-9-

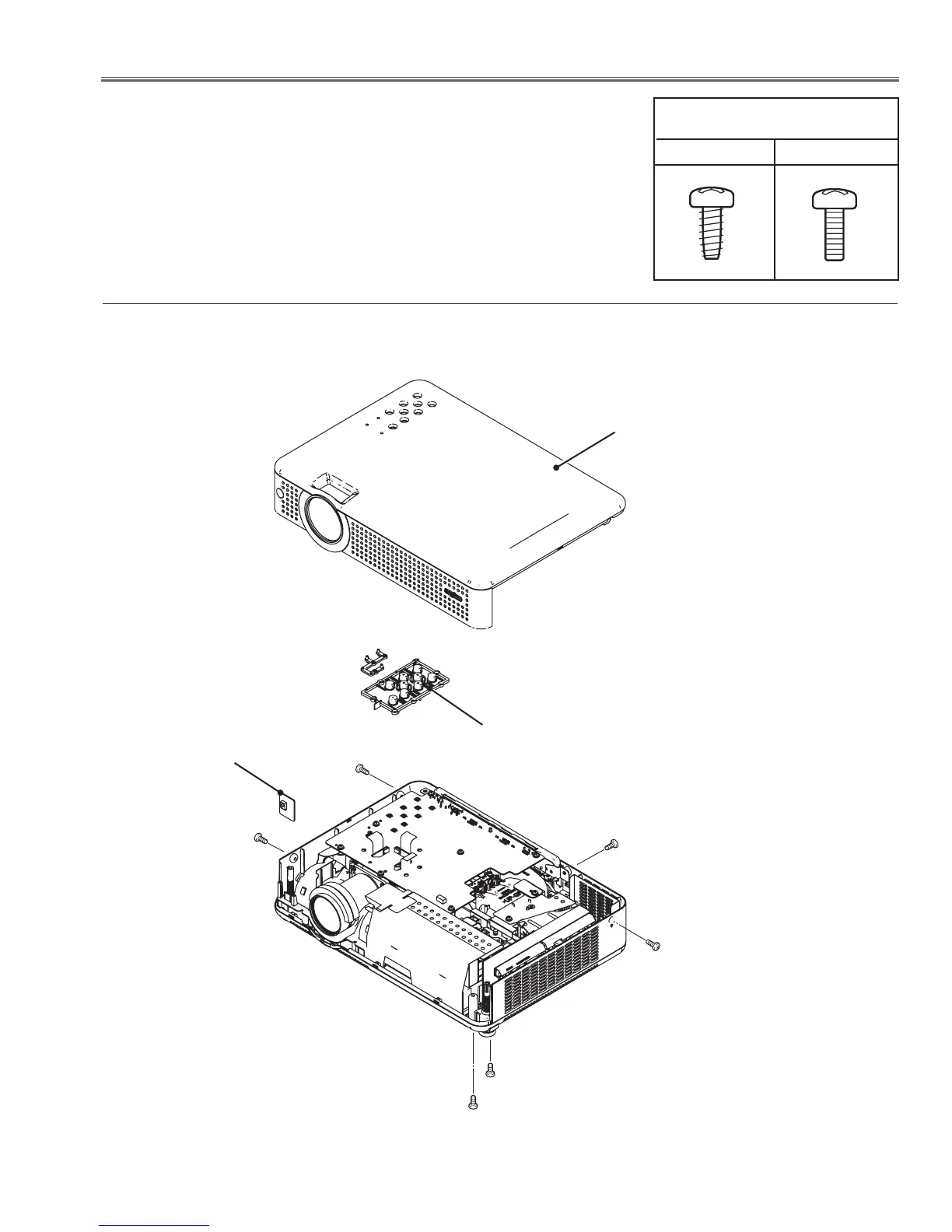

z Cabinet Top & R/C Board removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
Control
Buttons
R/C Board
Fig.1
(M3x8)x6
Cabinet Top
To Next Page
