-19-
(M3x8)x2
(M2x2)
(M2x2)
(M2x2)
(Blue)
(Red)
(M2x4)

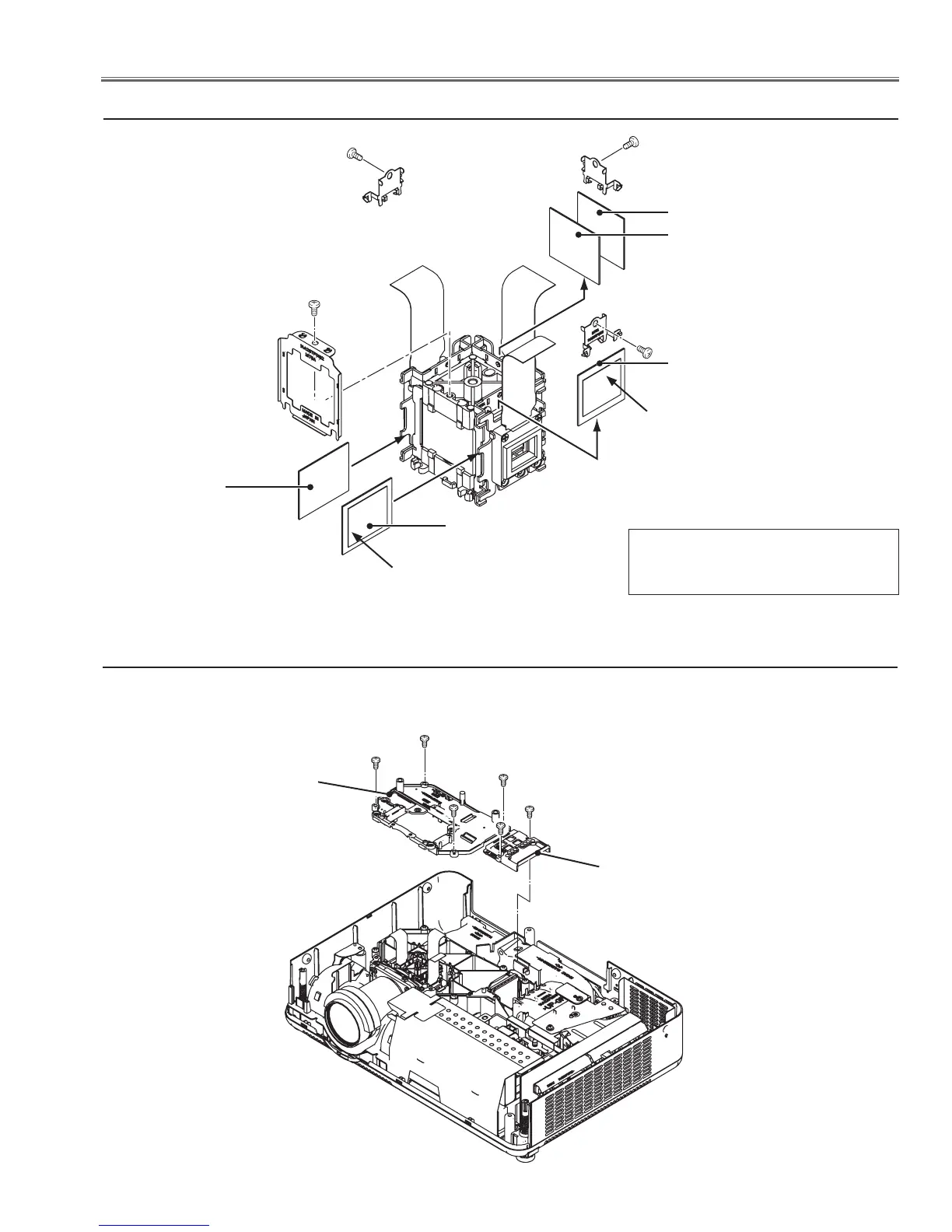

Optical Pats Disassembly
n Polarized glass-out, Pre-polarized glass removal
Polarized Glass(G)
Pre-Polarized Glass(G)
* Mount the polarized glasses as the
film attached side comes to the LCD
panel side.
Film
(Green)
Pre-Polarized Glass(B)
Fig.6
n Optical Unit Top removal
Optical Unit Top-A
Polarized Glass(B)
Fig.7
Polarized Glass(B)
Film
Optical Unit Top-B
(M3x8)x4
