-54-
No Power
- When all of LED indicators are not lighting, the symptom indicates that the primary power supply circuit does
not operate properly. Check the power primary circuit and parts as follow;
AC cord, F601 (Fuse), Power board,
SW902 (Thermal sw.) short in normal
SW902 opens when the surrounding temperature of the switch exceeds 100°C.
This projector provides a function which can be specified a defective area simply by indicating the LEDs. Connect the
AC cord and press the Power button once and then check the LED indication.
- When the WARNING (red) and POWER (red) indicators are flashing, the symptom indicates that the projector
detected an abnormal temperature risen inside the projector. Check the air filters and remove the object near the
intake and exhaust fan openings, and wait until the POWER indicator stops flashing, and then try to turn on the
projector.
The internal temperature is monitored by sensor ICs, IC8811, IC8821 on the Main board and IC8831 on
the R/C board.
- When the WARNING indicator lights red, the symptom indicates that the projector detected an abnormality in
the cooling fan operation or in the power supply secondary circuits. Check fan operation and power supply lines,
and the driving signal status.
The P_FAIL signal (Error: L) is sent to pin 215 of IC301<SYSTEM CONTROL> when the abnormality occurred
inside the projector, and then the IC301 sends the shutdown signal, LAMPDC_ON, to the power supply circuit to
stop its operation, and signal BLAST_AC to the lamp ballast board via IC4891 and SW901<lamp cover switch>
to stop operation of the lamp circuit.
An abnormality occurs on the secondary power supply;
Check power supplies S16V, S6V, S-5V. P_FAIL signal becomes “Low” when the abnormality occurs on
any of the power supply lines.
An abnormality occurs on the fan control circuit;
Check FN901, FN902, FN903, FN904, FN905, FN906 and peripheral circuit.
If any of the fans has an error, the fan lock signal drives Q3601 becomes on. As the result, signal FAN_
ERR becomes Low and is sent to lamp ballast board to stop lamp circuit.
An abnormality occurs on the drive signals;
ON_150V signal (Power-on: H) is output from pin 201 of IC301 and switches IC5701,15.5VL supply circuit,
ON_50V signal (Power-on: H) is outut from pin 110 of IC301 and switches IC5081, 5VAUDIO supply cir-
cuit, and IC5461, 12V, ON_33V signal (Power-on: H) is output from pin 11 of IC301 and switches IC5621,
1.2V and Q3582 3.3V supply circuit.
LAMP_DC_ON signal (Power-on: H) is output from pin 89 of IC301 and supplied to the P.F Control IC,
IC641, on the power supply board through Q662, and PC642.
BLAST_AC signal (Power-on: H) is output from pin 284 of IC301 and applied to pin 2 of IC4891 and output
pin 4 and then supplied to the lamp ballast board through SW901<Lamp Cover SW>.
LAMP_DET signal at the pin 185 of IC301 is applied from the lamp ballast unit. If the abnormality occurred
on the lamp ballast unit, LAMP_DET signal becomes “High” and then IC301 shuts down the power supply
circuit.
Troubleshooting

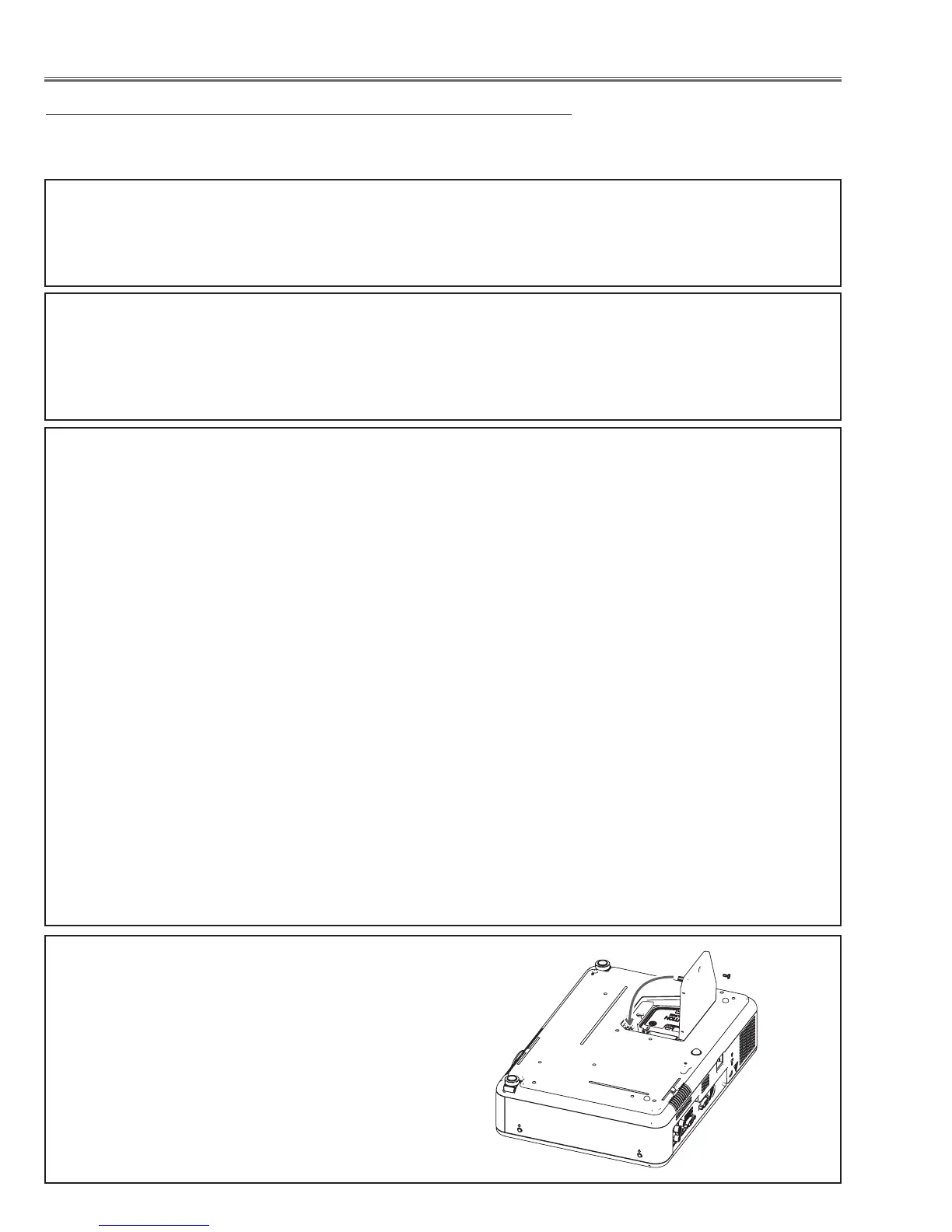

Lamp Cover switch
Make sure that the lamp cover is mounted correctly. If
not or the lamp cover removed, the lamp does not light
on for the safety. Check the lamp cover and lamp cover
switch (SW901).
To Next Page
