Sanyo PLV-Z700 Service Manual

- 17 -

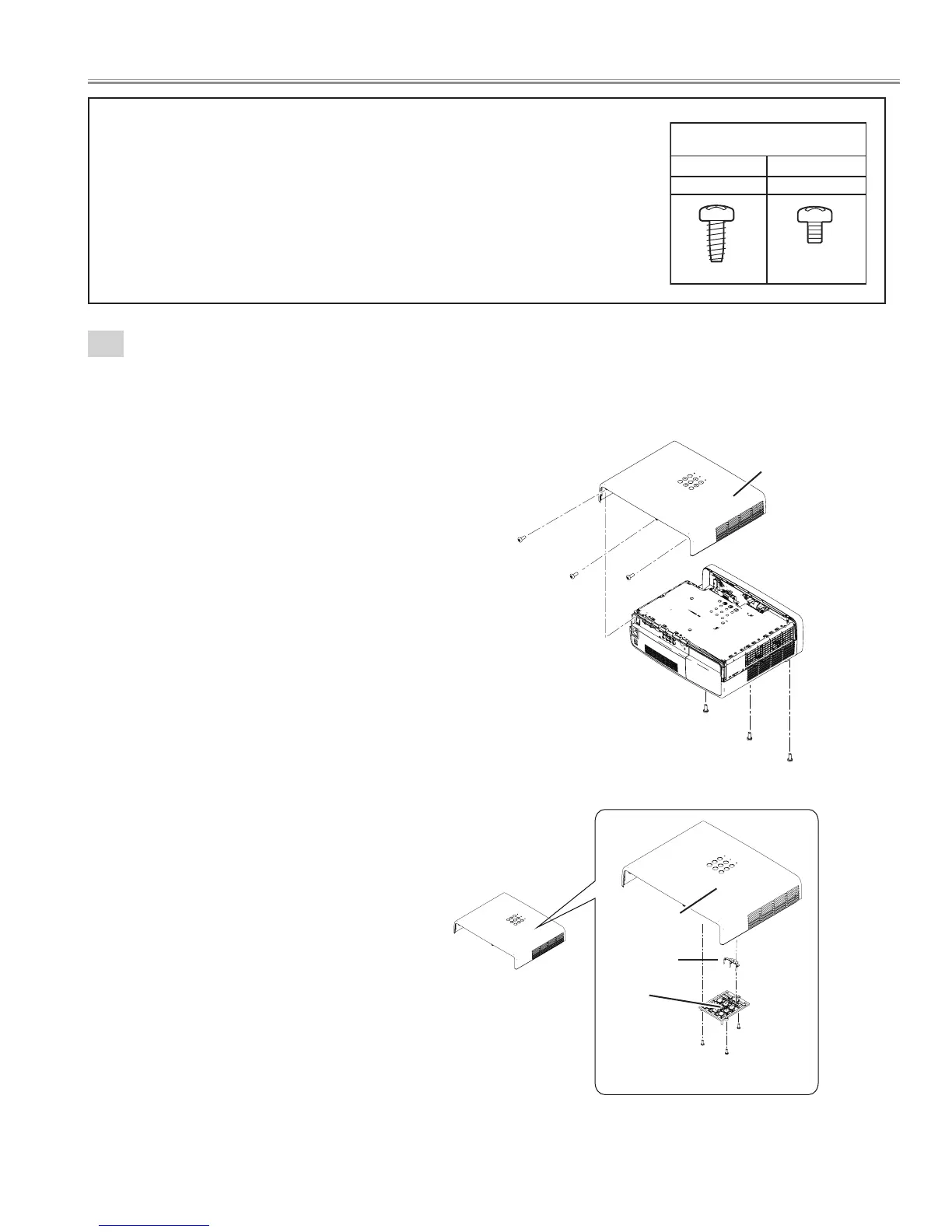

■ Mechanical disassemblies
1
Cabinet top ass'y removal.
Disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be
ignored.
Caution:
The parts and screws should be placed exactly the same position as the original other-
wise it may cause lose of performance and product safety.
The wiring method of the leads and ferrite cores should be returned exactly the same
state as the original, otherwise it may cause lose of performance and product safety.
Screws Expression
(Type Diameter x Length ) mm
T type M Type
Tapping screw Machine screw
1. Remove the 3 screws-A(M3x10) from the bottom side.
2. Remove the 3 screws-B(M3x8) and remove the Cabinet top ass'y.
3. Remove the 3 screws-C(T2.6x6), remove the Button and DEC. LED.
A
A
A
B
B
B
Cabinet top assy
Cabinet top assy
Cabinet top
DEC. LED
Button
C
C
C

Sanyo PLV-Z700 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	-
Resolution	1920 x 1080 pixels
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 154 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Weight	7500 g
