Sanyo PLV-Z700 Service Manual

- 45 -

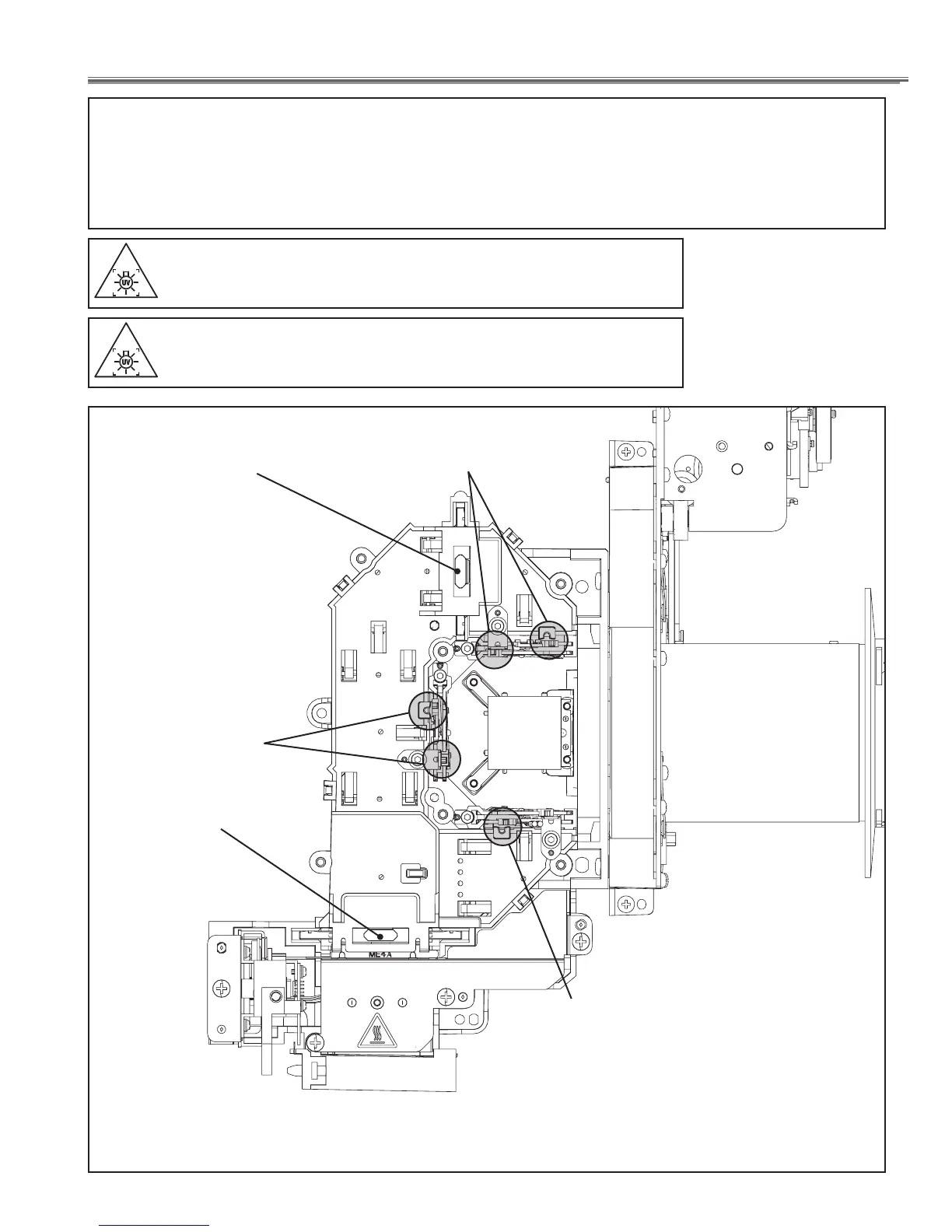

■ Optical Adjustment
Before taking optical adjustments below, remove the Cabinet Top following to the "Mechanical Disassemblies".
Adjustments require a 2.0mm hex wrench, Philips Screwdriver and a slot screwdriver. When you adjust Integrator lens or Relay
lens adjustment, you need to disconnect some connectors and FPC cables of LCD panels on the main board.
Note:
Do not disconnect connectors on the main board, because the projector can not turn on or operate properly for
adjustment.
(1) Contrast adjustment
Polarized glass (G)
Optical filter (G)
WARNING : USE UV RADIATION EYE AND SKIN PROTECTION
DURING SERVICING
CAUTION: To prevent suffer of UV radiation, those adjustments
must be completed within 25 minutes.
(1) Contrast adjustment
Polarized glass (R)
Optical filter (R)
(1) Contrast adjustment
Polarized glass (B)
Fixed (LENS RELAY_OUT)
Do not adjust
Fixed (LENS CONDENSOR_OUT)
Do not adjust

Sanyo PLV-Z700 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	-
Resolution	1920 x 1080 pixels
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 154 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Weight	7500 g
