Sanyo PLV-Z700 Service Manual

- 82 -
■ Troubleshooting
AC OFF
(with AC power supply and Mains SW : ON)
(90 sec.)
(90 sec.)
(Lamp : OFF)
(Lamp : ON)
(Lamp : OFF)
(A) : Press MENU + INPUT KEY for 5 sec. (or press MENU KEY on R/C for 20 sec.)
--> [S] mark display (for 5 sec.)
--> UP + DOWN KEY or R/C SCREEN KEY for 3 sec.
(Return to normal with ON/STAND-BY KEY)
<ACCIDENT>
(20 sec.)
(A)
(with signal or any KEY)
(with signal
or any KEY)
(no signal 30 sec.)
(no signal 5 min.)
STAND-BY COOLING
POWER ONWARNING
NORMAL
SERVICE
MODE
PROGRAM
REPLACE
MODE
SUSPEND
COUNTDOWN
SUSPEND
COOLING
<RECOVER>
<ACCIDENT>
(Slide Shutter error, Lamp error)
(Slide Shutter error)
SUSPEND
(ON/STAND-BY KEY)
(Lamp : ON)

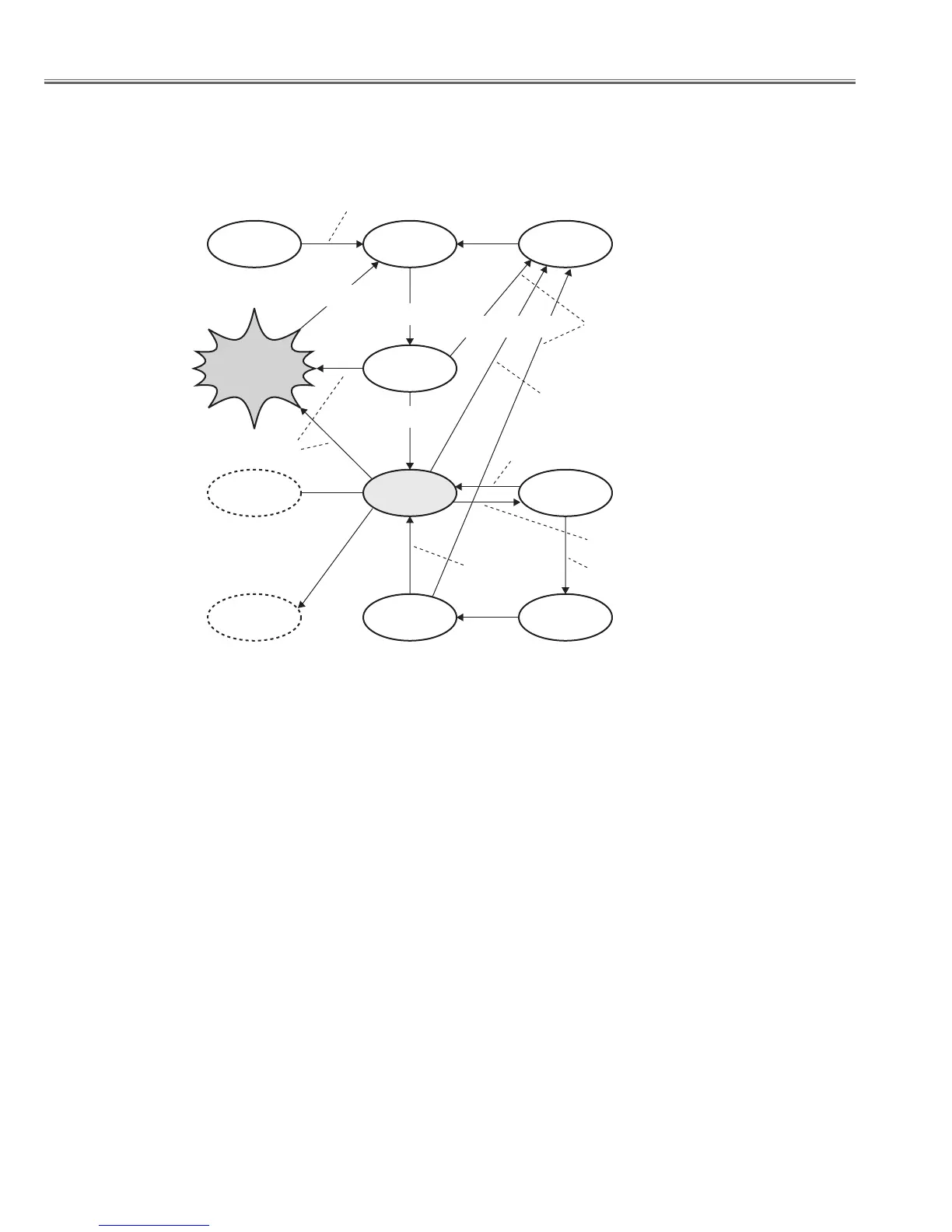

● Flow chart of projector condition

Sanyo PLV-Z700 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	-
Resolution	1920 x 1080 pixels
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 154 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Weight	7500 g
