Sanyo PLV-Z700 Service Manual

- 40 -
L03-5
L02

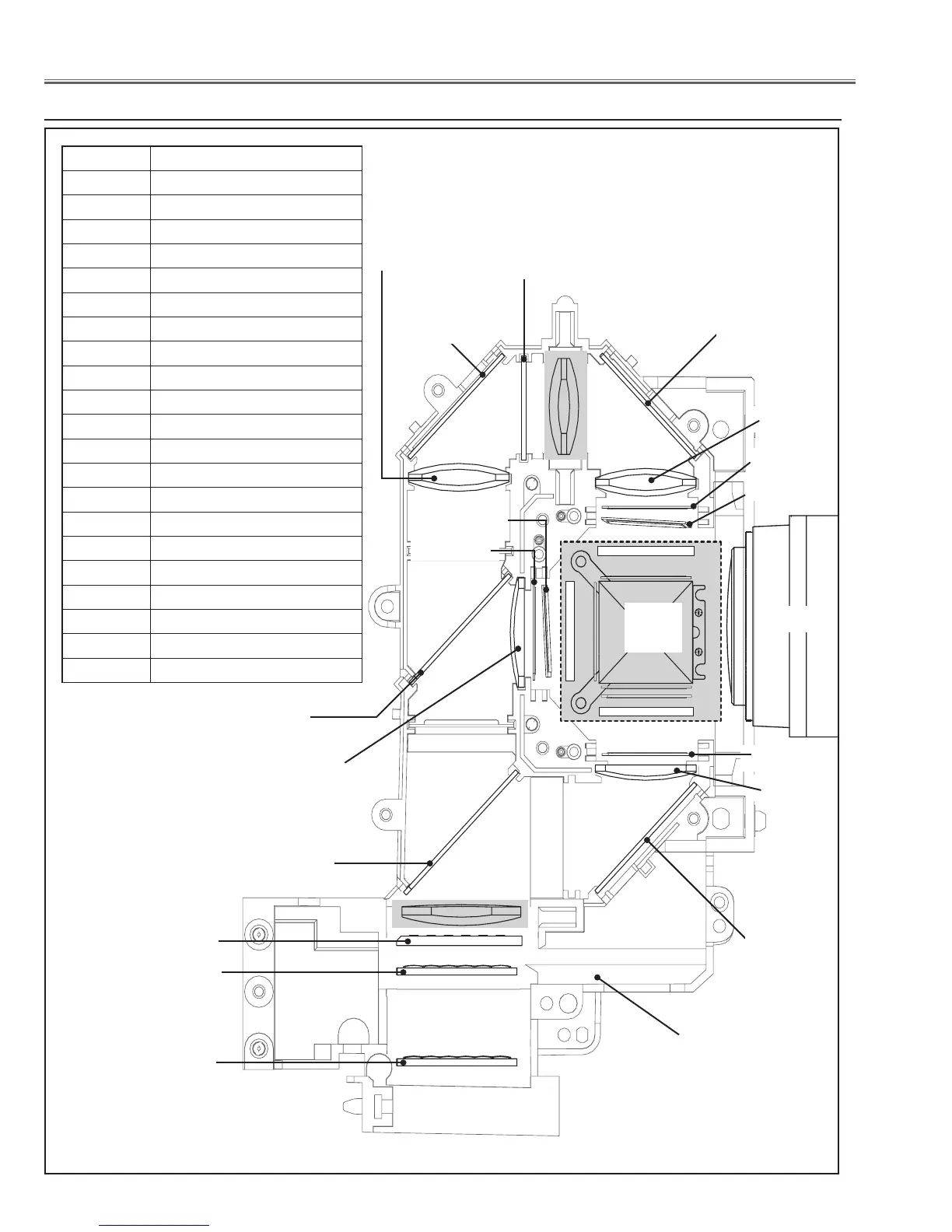

● Optical parts location and direction
L01R ASSY, LCD PNL/SM R-MF4A
L01L ASSY, LCD PNL/SM L-MF4A
L02 LENS, PROJECTIO
L03R/L03L COMPL, OPTICAL R/L-MF4A
L03R-1R OPTICAL FILTER (WV-SPN)BL
L03R-1G OPTICAL FILTER (WV-SPN)BR
L03L-1R OPTICAL FILTER (WV-SPN)BR
L03L-1G OPTICAL FILTER (WV-SPN)BL
L03-2R POLARIZED GLASS (IN/R)
L03-2G POLARIZED GLASS (IN/G)
L03-2B POLARIZED GLASS (IN/B)
L03-3 LENS, CONDENSER (G)
L03-4 LENS, CONDENSER (B)
L03-5 LENS, CONDENSER (R)
L03-6 MIRROR (B)
L03-7 MIRROR (R)
L03-8 OPTICAL FILTER (R)
L03-9 PRISM (PBS)
L03-10 DICHROIC MIRROR (B)
L03-11 DICHROIC MIRROR (G)
L03-12 LENS, INTEGRATOR (IN)
L03-13 LENS, INTEGRATOR (OUT) UV
L01R
L01L
L03R/L-1R
L03-2B
L03R/L-1G
L03-2G
L03-2R
L03-3
L03-4
L03-5
L03-6
L03-7
L03-7
L03-8
L03-9
L03-11
L03-10
L03R
L03L
L03-13
L03-12

Sanyo PLV-Z700 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	-
Resolution	1920 x 1080 pixels
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 154 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Weight	7500 g
